Lesson 2 of 4 · Turn radio echoes into an ionogram
Turn radio echoes into an ionogram
6 minute lesson · 3 checks along the way
Your goal for this lessonConnect transmitted frequency and echo delay to an ionogram without confusing apparent range with true altitude.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Read & understand
Build a measurement one sweep at a time
A topside sounder sends radio pulses at a sequence of frequencies and records returning signals. An ionogram organizes the response by frequency and delay, often with delay expressed as apparent range. It is a record of radio propagation, not an optical photograph of a solid atmospheric surface.
NASA’s Alouette 2 dataset describes swept-frequency operation, rather than the additional fixed-frequency operation available on the later ISIS instruments. One sweep samples frequencies sequentially. Treating every point as a simultaneous snapshot can hide changes during acquisition, especially when comparing rapidly varying conditions.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Convert a delay while keeping the assumptions
For a simple range coordinate, multiply the round-trip delay by the speed of light and divide by two: apparent range = c × delay ÷ 2. With c = 300,000 km/s, an invented 20-microsecond delay gives 3 km. Convert microseconds to seconds first: 20 microseconds is 0.000020 seconds. The division by two accounts for outward and returning travel.
The real restored Alouette 2 recordings were digitized at 40,000 samples per second: 25 microseconds between samples, corresponding to 3.75 km in apparent range. Sample spacing is not a promise of equally accurate true altitude. Propagation through plasma and the geometry of the path require further interpretation.
One echo has an outward and a return journey
Original teaching diagram. Original 20-microsecond example; not a measured Alouette echo.
Open full-size diagram in a new tab: One echo has an outward and a return journeyCheck 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Inspect the record before interpreting it

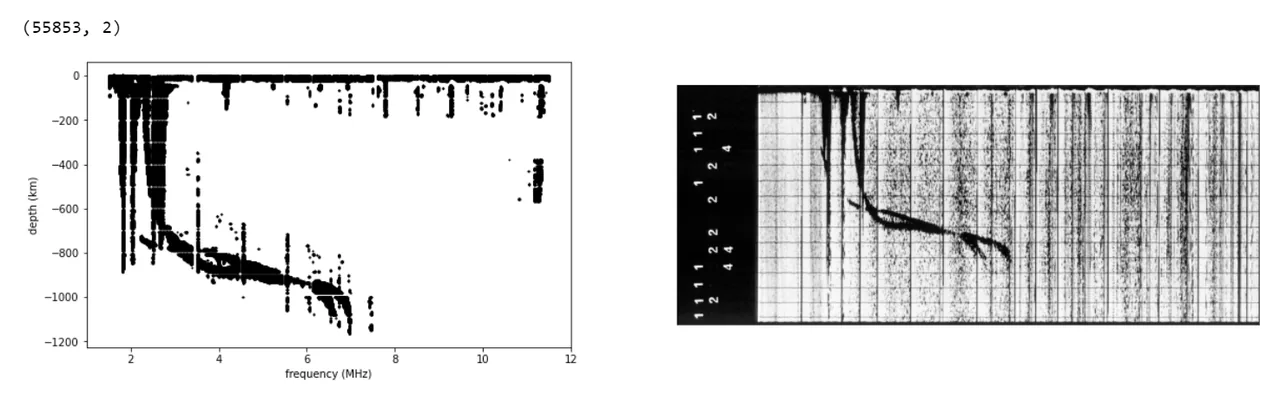

The Alouette 1 figure compares a scanned ionogram with extracted points. The plot labels its vertical coordinate depth; those mapped coordinates do not automatically become an electron-density profile. Grid marks, noise, metadata and instrument signatures can also create dark features that an extraction algorithm must distinguish from useful traces.
Before comparing two ionograms, identify the spacecraft, acquisition time, station, frequency scale and processing version. Alouette 1 and Alouette 2 are related instruments with separate records. A recent dataset update date tells you when a catalogue changed, not when the spacecraft acquired the observation.
CSA’s data-extraction documentation compares extracted points at left with the original scanned ionogram at right. The left axis is labeled depth (km); it is a mapped ionogram coordinate, not a directly measured altitude profile. Full original two-panel figure retained. Credit: Canadian Space Agency, Data and Emerging Technologies.
Look closely
Is the extracted plot already an electron-density profile?
See what to notice
No. It maps points from the ionogram. A density profile requires an additional propagation model and assumptions.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
