Connect a country through orbit

Anik is a family of Canadian communications satellites, not a single spacecraft. Anik A1 launched in November 1972, beginning a domestic geostationary communications system. Its successors supported evolving combinations of television, telephone and data services. The program belongs in the history of infrastructure as well as in a list of space launches.

Canada’s geography made long-distance connections important. A satellite network can link separated ground stations without requiring a continuous chain of relay towers between them. It still depends on equipment and people at both ends: being beneath a spacecraft’s broad view does not install a receiver or create a local distribution network.

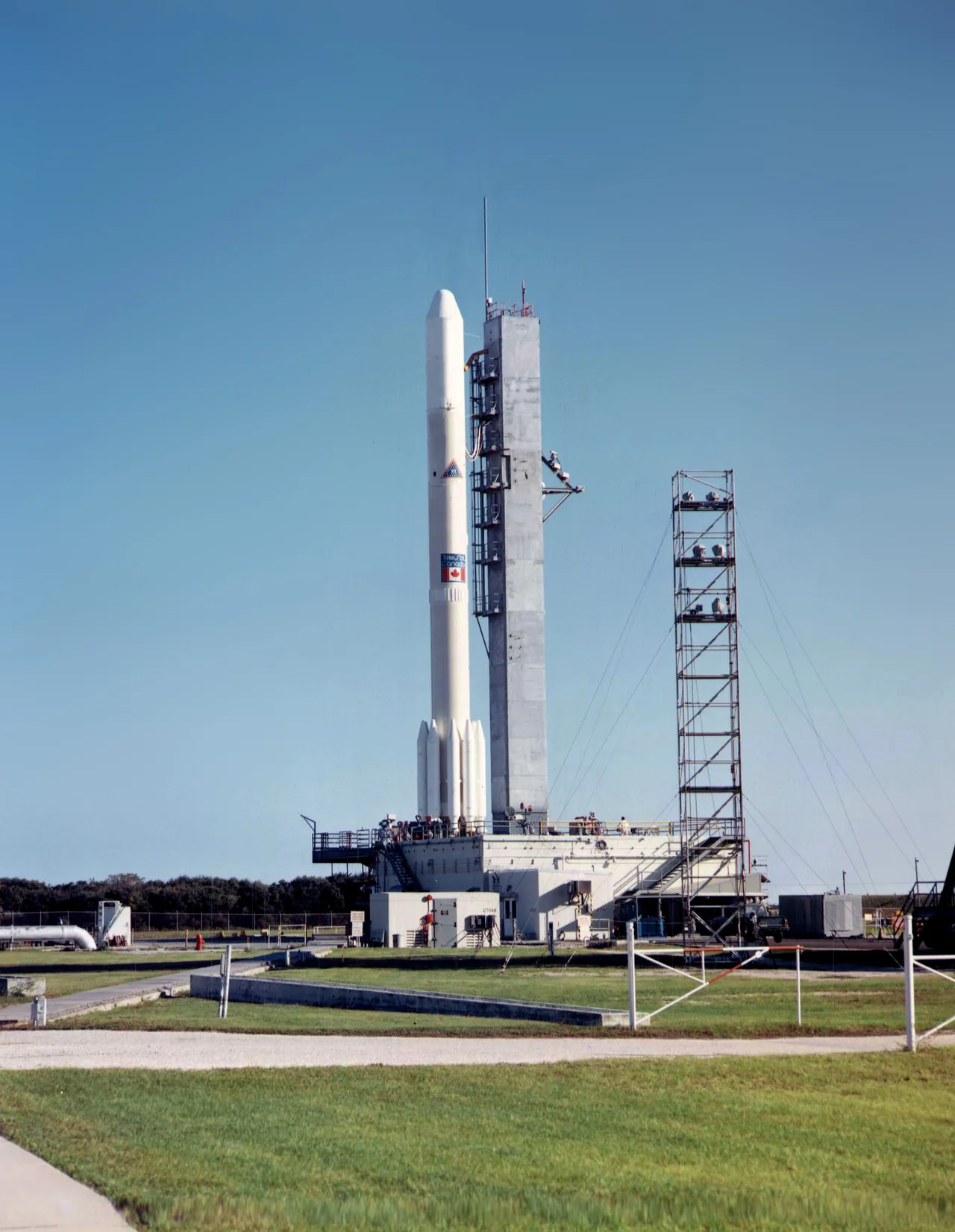

The preserved A1 photograph shows the launch vehicle at its pad, with the satellite concealed inside the fairing. It documents preparation for the space segment. Later evidence is needed to show that the spacecraft reached its working orbit and that a customer’s connection became usable.

A geosynchronous orbit has the same period as Earth’s rotation. The circular, equatorial case moving in the same direction as Earth is geostationary. In that ideal geometry, the satellite remains above the same surface location even though it is continuously moving around Earth.

NASA distinguishes an orbital radius of about 42,164 kilometres from a height of roughly 36,000 kilometres above the surface. These values have different starting points. The radius begins at Earth’s centre; altitude begins at its surface. They must not be treated as two competing measurements of the same distance.

The nearly fixed direction is useful to a ground antenna. It can point toward the service location instead of following a rapidly crossing low-orbit satellite. Actual spacecraft still require monitoring and control. The ideal geometry explains the service concept, not an absence of operational work.

What stays fixed in a geostationary orbit?

For an original teaching model, assume a signal travels 36,000 kilometres upward and another 36,000 kilometres downward, at 300,000 kilometres per second. The path is 72,000 kilometres, so propagation alone takes 72,000 / 300,000 = 0.24 seconds from one terminal through the satellite to the other.

A reply over the same assumed route adds another 0.24 seconds, giving a 0.48-second propagation-only round trip. This is a deliberately simplified geometry, not a measured Anik service latency. Real slant ranges, processing and terrestrial routing change the total.

More data capacity can carry more information per second without shortening the distance light must travel. A useful service description therefore keeps bandwidth and delay separate. A connection might have ample throughput and still require applications to accommodate the path delay.
