ARSAT: connect spacecraft to a working communications service

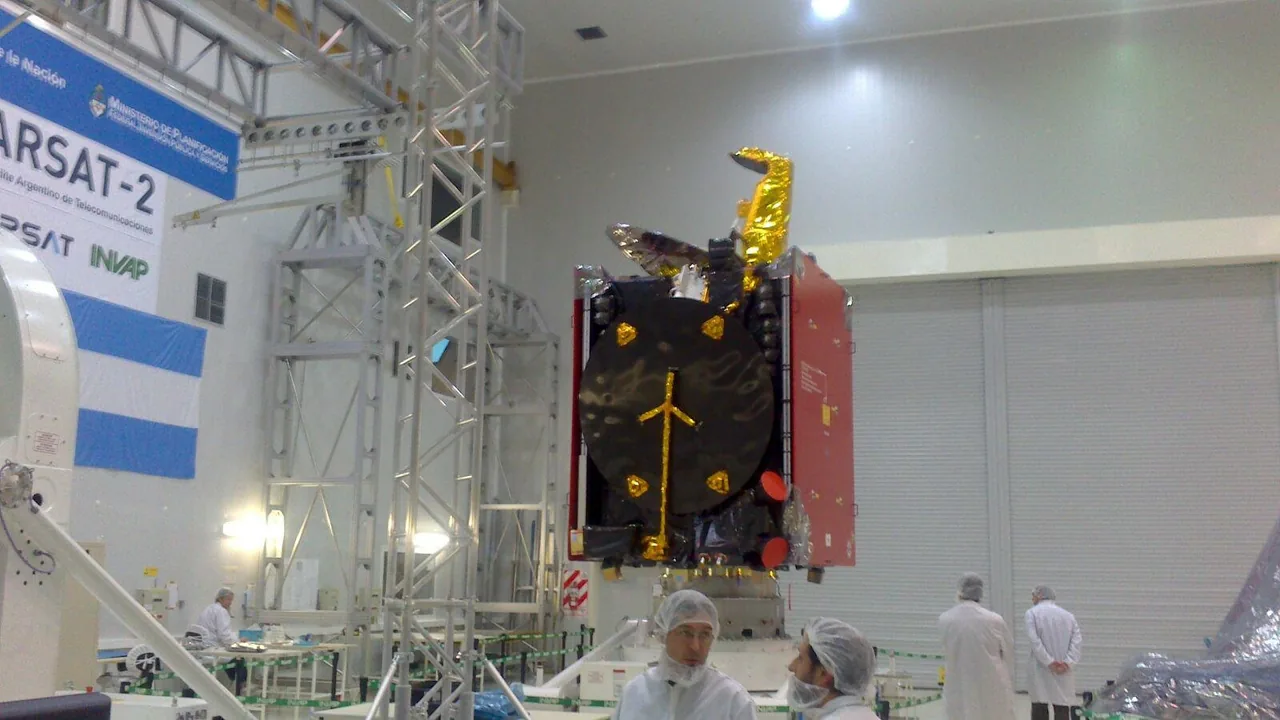

ARSAT-1 launched in 2014 and ARSAT-2 in 2015, providing Argentine geostationary communications capability. The operator describes South American coverage for the first and broader American coverage for the second. Their payload bands differ: ARSAT-1 uses Ku band, while ARSAT-2 includes Ku and C bands. The physical ARSAT-2 cleanroom photograph documents a spacecraft before launch; coverage and service characteristics come from the operator’s technical description.

ARSAT also operates terrestrial infrastructure, including its federal fiber network, and works with local service providers. This makes the program a useful example of how satellites fit into a wider communications system. A remote community’s connection may involve a user terminal, a satellite link, a gateway and terrestrial networks before reaching the destination. Building the spacecraft is one important contribution, but service depends on the connected system and on the organizations that operate it.

A geostationary satellite follows Earth’s rotation in an equatorial circular orbit and appears approximately fixed in the sky to a ground observer. That geometry lets a ground antenna point toward a relatively stable direction. Coverage describes where a usable link may be supported under specified conditions. Capacity describes how much traffic the system can carry. A place can lie within a coverage footprint without having an installed terminal, an available service plan or unlimited bandwidth.

For an original capacity exercise, suppose a satellite service has 120 units of usable capacity. It reserves 30 for broadcasting and 30 for other committed traffic, leaving 60 for a group of community links. If six links share the remainder equally, each receives ten units under this simplified allocation. The numbers are invented, omit real network overhead and are not ARSAT specifications. The calculation demonstrates that sharing finite capacity requires choices even when all communities are within reach.

Trace the complete communications path

Radio signals travel quickly, but the distance to geostationary orbit is large. In an illustrative minimum-distance estimate, two ground-to-orbit legs of about 36,000 kilometers total 72,000 kilometers. At roughly 300,000 kilometers per second, propagation alone takes about 0.24 seconds one way through the satellite. Actual slant paths, processing and other network stages add delay. This is not a measurement of an ARSAT customer’s connection or a full request-and-response time.

The operator describes ARSAT-SG1 as a prospective high-throughput Ka-band broadband satellite, including plans for rural connectivity. Its intended service should not be presented as already delivered merely because a coverage illustration exists. A good service proposal identifies the required terminals, capacity allocation, reliability, terrestrial connections and latency — open definition needs of the application. A video download and an interactive conversation may respond differently to the same link. ARSAT shows how space engineering, public infrastructure and everyday user experience meet in one operational system.
