Ariane 5 and the limits of inheritance

Ariane 5’s first flight failed on June 4, 1996. The ESA/CNES inquiry traced the loss of guidance information to an out-of-range numerical conversion in the inertial reference software. Both identical reference systems failed for the same reason. Software carried over from Ariane 4 encountered conditions outside an assumption made for that earlier launcher.

This was not simply a shortage of duplicate hardware. Redundancy helps when a surviving channel can continue the required function, but identical channels can share a design fault. An original classroom analogy is two calculators running the same mistaken formula: a second answer does not provide independent protection when both repeat the same error.

Imagine a fictional sensor conversion tested only for inputs up to 200 units. A new vehicle can produce 260 units. Reusing the conversion requires checking what happens across the new range, including how errors are contained. Successful operation in the earlier range is useful evidence, but it does not establish behavior outside it.

The inquiry emphasized examining assumptions and testing the complete relevant system behavior. A qualification exercise should connect the flight profile, input ranges, software response and downstream controls. A component may pass its own tests while the combined system still responds badly to an unexpected value.

Ariane 5 later served many science and commercial missions and completed its final, 117th flight in July 2023. Configuration still matters within that record. The ES version used a restartable storable-propellant upper stage with the Aestus engine; it was not the same upper-stage design as every other Ariane 5 variant.

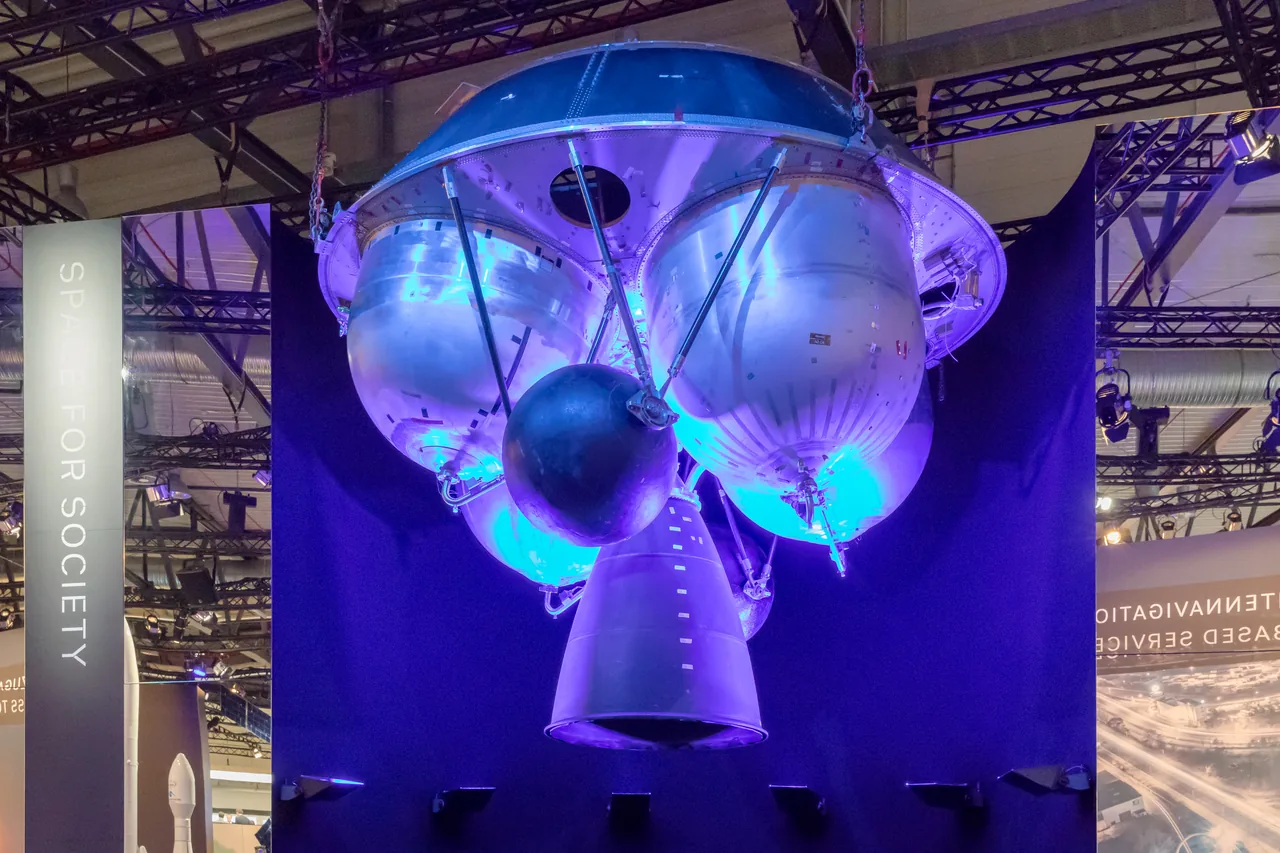

The engine photograph in this lesson shows hardware on display, not an engine firing in flight. Use it to locate a component within the larger architecture. To explain a specific launch, pair its vehicle version with the appropriate mission record rather than applying a generic family specification to every flight.
