SLS: a launch system is more than liftoff thrust

The Space Launch System, or SLS, is NASA’s heavy-lift rocket for launching Orion. Its Block 1 configuration combines a liquid-propellant core stage, two five-segment solid boosters and an upper stage. Four RS-25 engines power the core stage using liquid hydrogen and liquid oxygen. The boosters contribute strongly during the early ascent, while later propulsion and guidance must place the payload on the required trajectory. A dramatic liftoff is only the beginning of that delivery sequence.

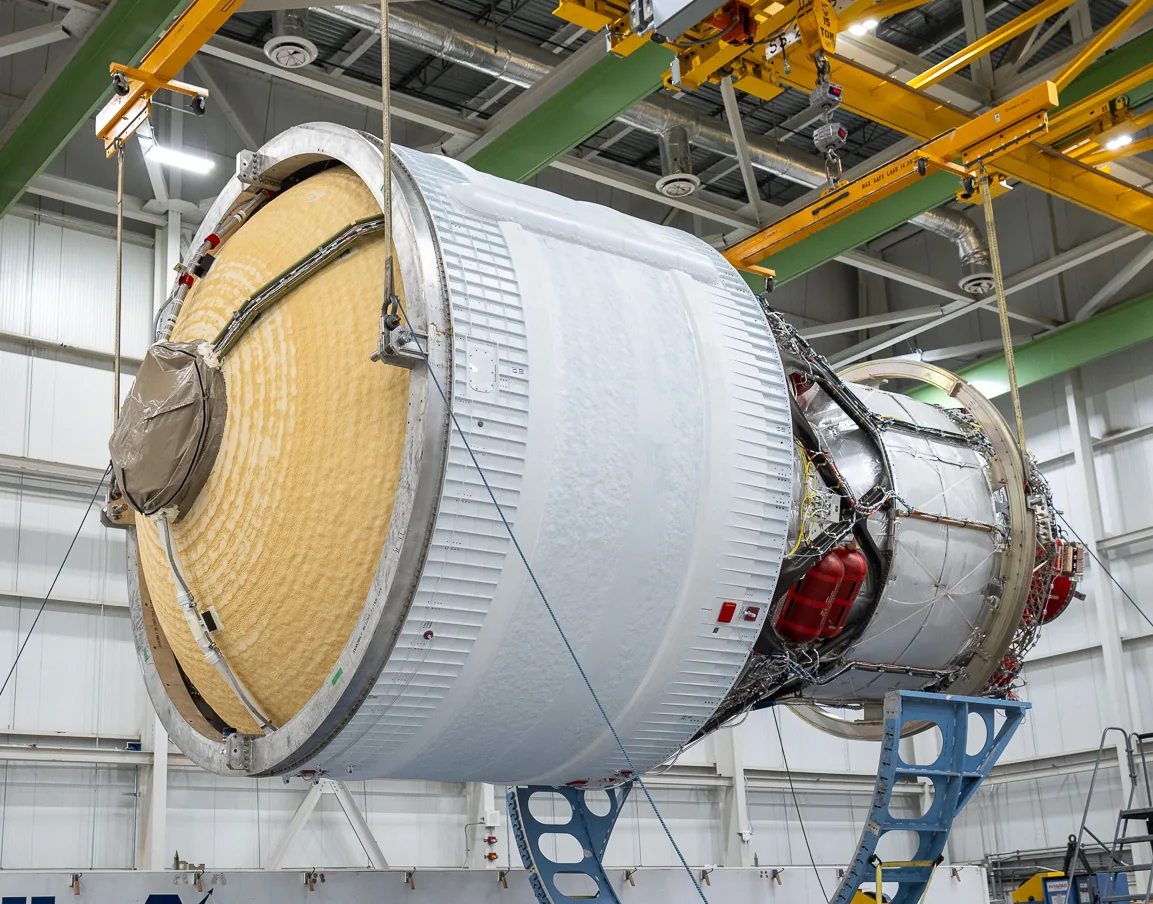

The Interim Cryogenic Propulsion Stage (ICPS) performs the upper-stage role on Block 1. The photograph shows this hardware being prepared for shipment, making its physical scale and interfaces visible. The stage is distinct from Orion’s service module: one is part of the launch vehicle, while the other supports the crew spacecraft after separation. Matching each engine to its job prevents a common confusion between launch propulsion and the spacecraft’s own maneuvering system.

Thrust is a force; payload is a mass delivered under stated conditions. They are not interchangeable measures. In an original classroom model, a rocket has thrust of twelve force units and weight of ten force units at the start of vertical flight. Its thrust-to-weight ratio — open definition is 1.2, leaving two force units upward before other forces are considered. That comparison says something about initial acceleration, but it does not tell you the mass that reaches a lunar trajectory.

To estimate delivery capability, engineers also need propellant quantities, engine efficiency, changing mass, losses and the target trajectory. A larger initial force can be consumed accelerating a larger vehicle rather than delivering a larger payload. Comparisons should therefore use consistent destinations and configurations. The invented example is intentionally limited; it is not an SLS performance calculation and cannot be converted into a payload claim without the missing information.

Separate force from delivery

NASA’s February 2026 architecture update sought more standardized SLS operations and added an integrated Earth-orbit test before a lunar landing attempt. The June 2026 inspector-general memorandum records that the former upgrade path using the Exploration Upper Stage and its associated adapter was no longer planned. Older Block 1B diagrams remain useful historical evidence, but their future-tense schedules should not be presented as the current flight manifest.

This distinction also matters when judging tests. A core-stage engine firing can provide valuable evidence about the assembled propulsion system while leaving upper-stage operations, separation and crew interfaces to other checks. Ask what configuration was tested, under which conditions and against which requirements. SLS development shows both the value of inherited engine experience and the need to qualify a new integrated vehicle. A familiar component does not automatically qualify every installation or future mission.
