Lesson 1 of 4 · Augment the launch system
Augment the launch system
6 minute lesson · 3 checks along the way
Your goal for this lessonExplain how ASLV added capability while introducing new integration and guidance requirements.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Read & understand
Build on SLV-3
India’s Augmented Satellite Launch Vehicle, or ASLV, combined the SLV-3 core arrangement with two side-mounted solid motors. ISRO describes the resulting vehicle as a five-stage, all-solid launcher. Its development objective included a 150-kilogram-class payload capability to a reference 400-kilometre circular orbit. That design reference should not be substituted for the measured orbit of every flight.
The side motors are called strap-ons because they are attached alongside the central vehicle. They supply thrust during an early part of ascent, while later propulsion and separation events carry the payload onward. Adding motors changes loads, interfaces and event timing as well as available propulsion. It does not simply add a constant amount to every payload capacity.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Manage integration and protection
ASLV was an intermediate development program for technologies needed by later launchers. ISRO identifies strap-on technology, vertical integration, a bulbous protective fairing, inertial navigation and closed-loop guidance among its development areas. These are different jobs: assembling the vehicle, shielding the payload, estimating motion and steering toward a required result.
Vertical integration means that important assembly work is performed with the vehicle upright. It imposes practical requirements for access, alignment, lifting, electrical connections and verification. A payload fairing protects its contents during the relevant ascent environment; its shape alone does not reveal the payload’s later operating orbit.

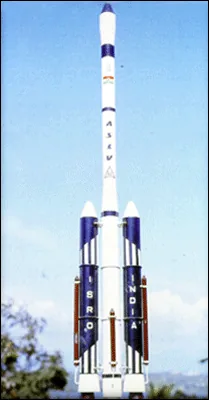

ISRO’s published ASLV configuration image shows a central core and two side boosters. The source does not identify a particular flight, capture date or individual artifact; it is used here only as a configuration view. The original image is small and is preserved without invented detail. Credit: DOS/ISRO. Complete published frame retained; display copies resized and compressed only.
Look closely
What arrangement can you identify without assigning this view to a particular flight?
See what to notice
The central vehicle and two side-mounted boosters illustrate configuration. The source does not establish a particular flight or date for this view.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Close the guidance loop
A guidance loop uses an estimate of the current flight state to determine how the commanded flight should change. Inertial navigation helps estimate motion using onboard measurements. The estimate is useful only within its errors, and a guidance command still needs control hardware capable of carrying it out.
Imagine a planned path and an estimated path beginning to diverge. A closed-loop scheme can respond to that estimated deviation, whereas a fixed reference schedule does not by itself recalculate the trajectory command from the deviation. This distinction concerns the guidance function; it is not a claim that a vehicle with a stored reference has no sensors or attitude control.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
