RaioSAT: connect flashes and radio pulses

RaioSAT is a Brazilian research effort to develop lightning observations for small satellites. INPE’s 2022 project overview describes optical and very-high-frequency radio sensing, with collaboration involving Nottingham and Jena. The October 2026 catalog focuses on an experiment intended to develop methods for a future constellation — open definition. It proposes correlating optical and radio pulses to investigate different lightning types. These are research and development aims, not a claim that an operational RaioSAT constellation is already supplying alerts.

Lightning can occur within clouds or involve a connection to the ground. Instruments observe electromagnetic signals associated with the discharge — open definition, and different sensors provide different information. An optical sensor may detect a cloud illuminated by a flash, while radio measurements reveal another part of its emission. Combining them can help constrain interpretation, but neither a bright cloud nor a coincident pulse should be labeled with unsupported precision.

Imagine an original experiment recording a flash in an optical channel and a nearby radio pulse. Before associating them with one discharge, check the clocks, instrumental delays, positions and matching criteria. A consistent time offset could make unrelated events appear aligned, or separate signals that belong together. Increasing the number of decimal places printed in a timestamp does not improve the underlying clock accuracy.

A fictional laboratory test sends a known reference event to both recording systems. One channel consistently reports it two milliseconds late. The team can characterize that offset and its variation before studying unknown events. The correction and uncertainty should remain documented. This is a teaching example, not a claimed RaioSAT timing specification; the real experiment’s requirements must come from its instrument design and scientific objectives.

Match signals with known timing

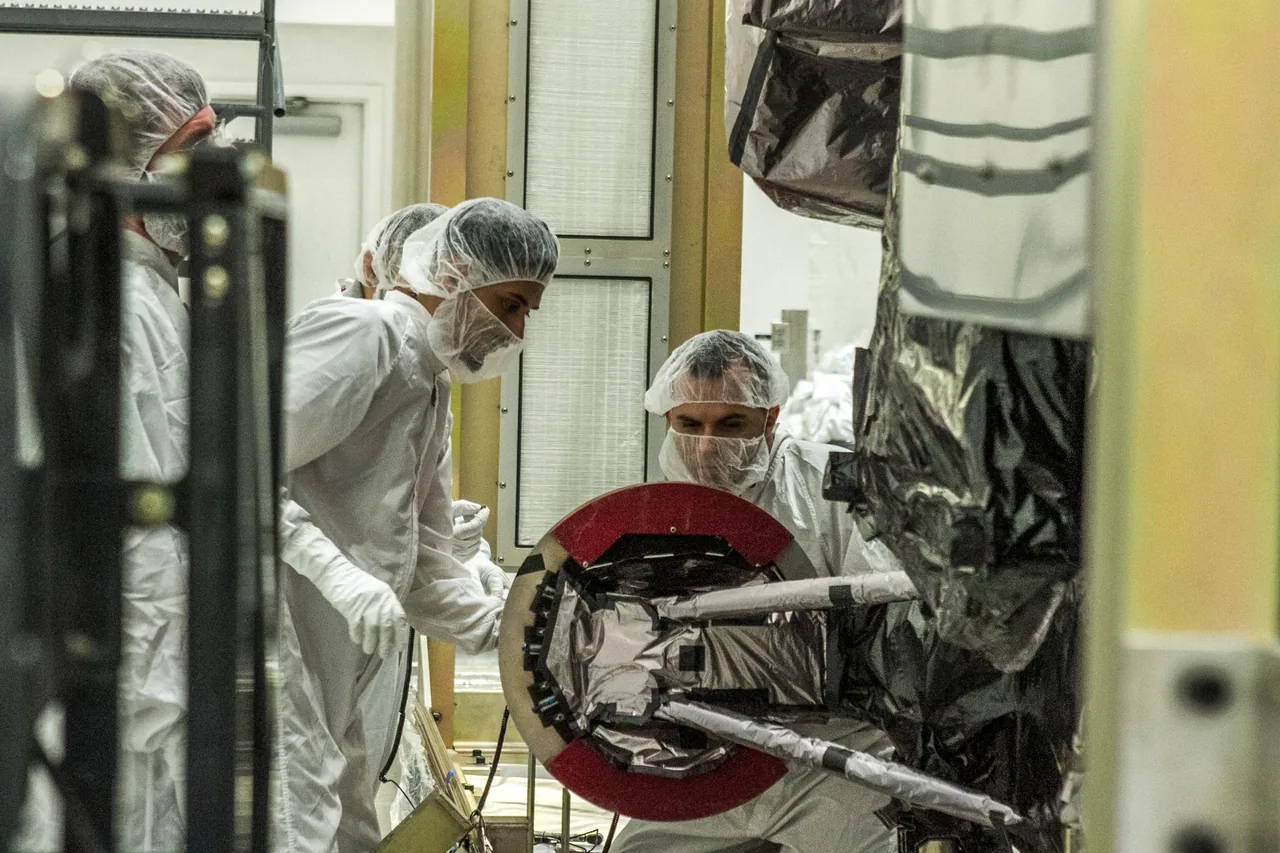

NOAA’s Geostationary Lightning Mapper provides an example of optical total-lightning observations on a different spacecraft family. The photograph shows engineers inspecting GOES-S, later called GOES-17, during ground preparation. It illustrates actual weather-satellite hardware and careful handling, not the RaioSAT payload — open definition. The existence of another successful observing system does not establish the performance of a new combination of instruments.

To evaluate a proposed lightning classifier, compare its decisions with suitable independent observations and inspect the cases it misses or labels incorrectly. Include weak events and crowded storm scenes rather than only clear examples. Report the conditions under which the method works and where confidence falls. RaioSAT’s combined-sensor idea teaches a general lesson: complementary observations become more useful when their timing, geometry and limitations are made explicit.
