DOVE: turn a satellite signal into a learning activity

DOVE, the Digital Orbiting Voice Encoder, became DOVE-OSCAR-17 after its January 22, 1990 launch. Brazilian amateur-radio enthusiast Junior Torres de Castro helped conceive and fund the project with AMSAT collaborators. The educational idea was to make a satellite’s voice and telemetry — open definition accessible to institutions and amateur receivers. AEB’s historical register records retirement in March 1998; it does not describe a currently available classroom service.

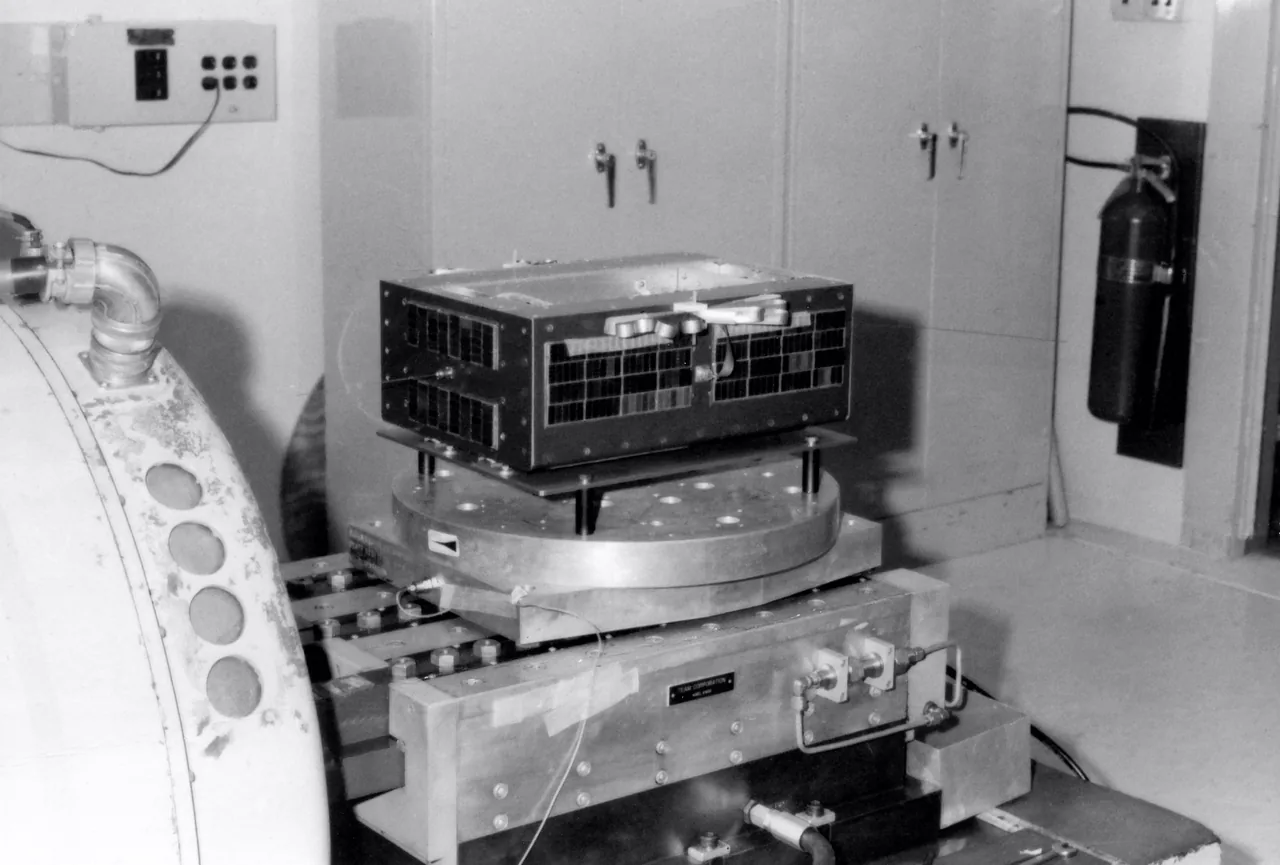

An AMSAT remembrance includes a project team member’s recollection of receiving reports from listeners during voice transmissions. That is evidence of actual reception, not proof that every school always had access or that every intended feature operated continuously. DOVE’s story joins personal initiative, volunteer engineering and international launch cooperation. The photograph of the earlier AMSAT-OSCAR-6 provides separate amateur-satellite hardware context; it is not DOVE or a photograph of a classroom receiving it.

A voice signal carries audible content. Telemetry reports measurements or state information from equipment, often as digitally encoded packets. DOVE used AX.25 packet telemetry with an audio-frequency-shift-keyed signal. AMSAT’s technical account distinguishes its beacon from satellites equipped to receive, store and forward users’ messages. A downlink that you can decode is not automatically a two-way channel through which you can send your own material.

For a fictional school activity, provide a recorded packet and its published data definition. Students first identify the packet, then decode a sample field, then explain what the value means under the given calibration. A displayed number without its scale, unit and field definition is not a complete physical measurement. A successful exercise can therefore connect communications, mathematics and interpretation even when learners work with archived recordings rather than attempting a live pass.

From a pass to an explanation

In an original reception exercise, a predicted usable pass lasts eight minutes. Allow two minutes for acquisition and one minute for a closing equipment check, leaving five minutes for the main activity. The schedule is illustrative, not a reconstruction of DOVE operations. The orbit, local horizon, equipment and signal conditions determine actual access. A pass prediction is a planning tool; a time-stamped reception log records what was actually received.

Evaluate the activity by asking learners to distinguish an undecoded signal, a valid packet and an interpreted engineering value. A missing packet might indicate weak reception or a configuration problem; it does not necessarily mean the spacecraft’s sensor failed. Preserve the setup and timing so another group can compare results. DOVE’s educational value lies in making these steps observable and discussable, while its historical record shows why reception, service availability and learning outcomes should be assessed separately.
