Design for maintenance and test the whole task

CSA’s original Canadarm3 description proposed using the smaller arm to help replace components of the larger arm. Interfaces would carry attachment, power and communication functions. The intent was to support maintenance while reducing dependence on astronauts working outside the outpost.

A replaceable unit needs more than a removable cover. Consider whether a tool can reach its fasteners, whether a replacement can be transported into position and whether its services can be disconnected and restored. These are general design questions; they do not describe a released Canadarm3 maintenance procedure.

The design promise is therefore conditional: a repair system must retain the capabilities needed to perform the repair. The fact that a part can be swapped in one test configuration does not establish that every failure can be recovered in every configuration.

Consider an original model with a repair arm and a target unit both dependent on one power supply. If that supply is unavailable, having a mechanically replaceable target does not by itself establish that the repair arm can operate. This is a hypothetical dependency exercise, not a reported fault in Canadarm3.

A dependency diagram helps identify which conditions a recovery plan assumes. Separate a failed target from the resources needed to reach and replace it. A team may need another power path, another tool or a different recovery strategy, but the correct choice requires evidence about the actual system.

For a toy verification table, use four columns: replacement accessible, handling capability available, services restored and functional output confirmed. A missing condition means the complete recovery has not yet been established, even if several other columns contain successful results.

Check the repair dependencies

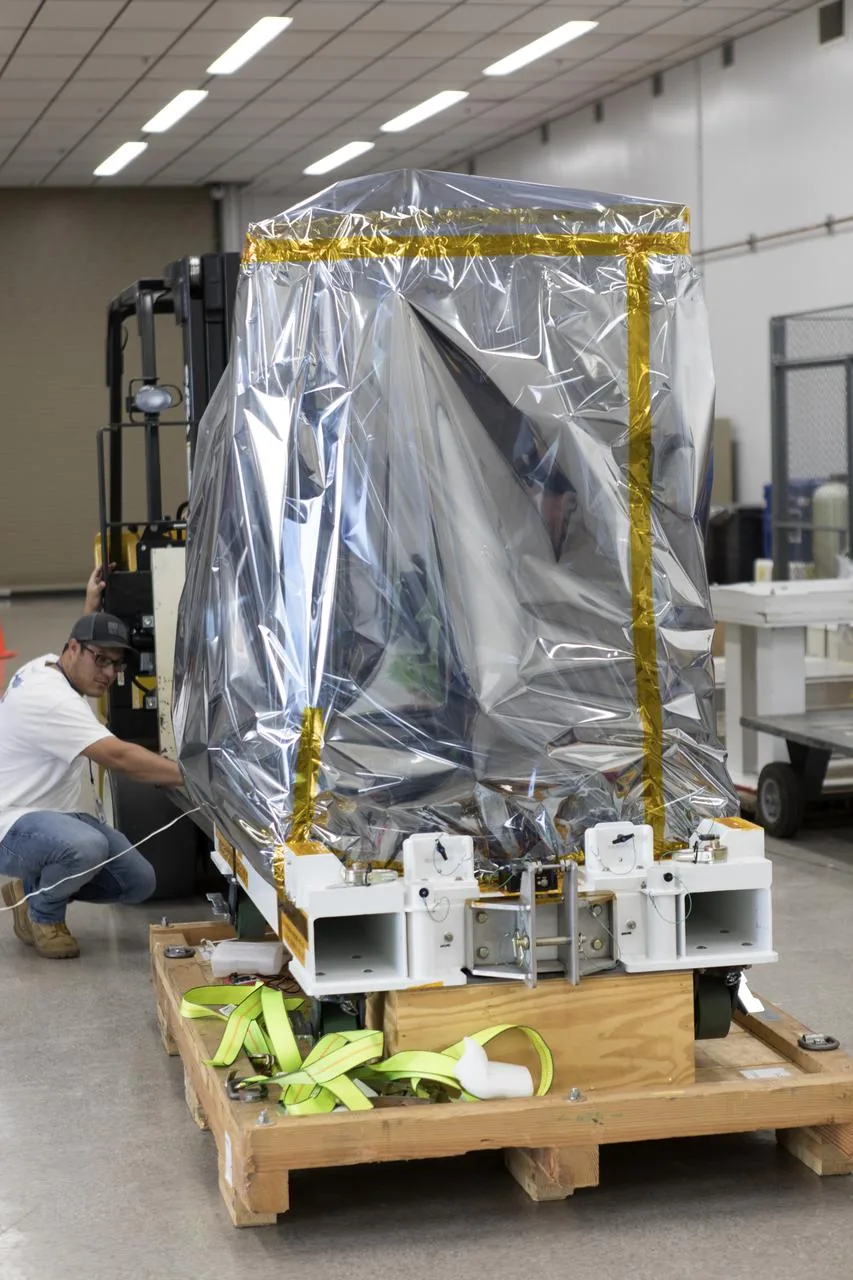

NASA’s Robotic Refueling Mission included separate station technology demonstrations. The RRM3 hardware photograph here documents a different project on the ground in May 2018; it does not depict Canadarm3. NASA reported in August 2019 that Dextre had successfully performed RRM3 tool operations, while an April hardware issue had already removed the mission’s liquid-methane-transfer capability.

The tool result and the unavailable transfer outcome can both be true. One successful operation does not guarantee every downstream objective. This comparison illustrates how to read engineering evidence; it does not imply that Canadarm3 experienced the same problem or used the same hardware.

When reviewing a proposed repair capability, ask for the complete chain of evidence. Which configuration was tested? Which services were available? Which functional result was measured? A precise account preserves successful steps without inventing the outcome they were meant to enable.
