Echo: bounce a signal from a balloon in orbit

Project Echo explored whether a large reflective balloon in orbit could connect distant radio stations. The successful Echo 1A launch in August 1960 placed a roughly 100-foot-diameter aluminized balloon in space. Radio energy transmitted toward it could scatter back toward another station. The balloon was a passive communications reflector: it did not amplify the message with an onboard communications repeater.

That distinction does not mean the experiment needed no electrical equipment. Ground transmitters supplied radio energy, and sensitive receivers and antennas detected the returning signal. Tracking established where to point. Echo therefore tested a complete path involving the spacecraft and ground infrastructure, even though its communications role in orbit was simpler than an active satellite’s electronics.

Imagine station A sending a signal toward the balloon while station B receives part of the reflected energy. Both stations need a usable line of sight to the reflector during the experiment. The satellite’s motion changes the available geometry, so engineers must plan the observation time and track the target. A successful contact during one pass does not establish continuous service between the stations.

The returning signal is weak because the transmitted energy spreads and only part of the reflected energy reaches the receiver. Antenna performance, transmitted power, receiver sensitivity and interference all affect whether the message can be recovered. A bright optical appearance in the sky is a different observation from a measured radio-link performance; one does not directly quantify the other.

Suppose a fictional station receives a clear message for eight minutes, then loses it as the reflector moves beyond useful geometry. The contact demonstrates a working radio path during that interval. The later loss does not automatically indicate that the balloon failed; the predicted pass and antenna pointing should be checked before assigning a cause.

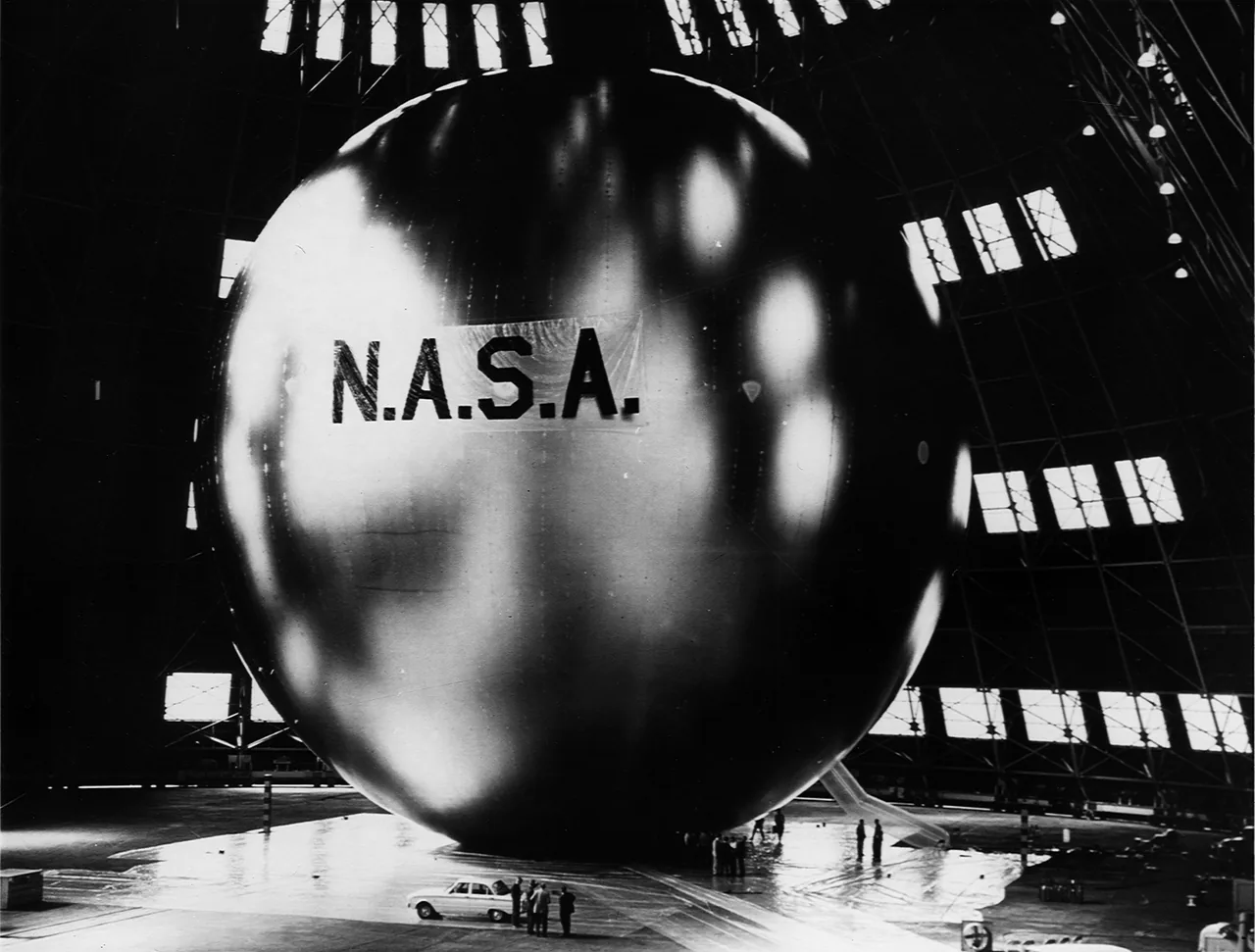

Echo helped researchers compare passive reflection with active approaches that could receive and retransmit signals. Neither approach can be evaluated from the spacecraft alone. Ask what ground equipment, viewing opportunities and signal quality the intended service requires. The large balloon photograph makes the reflector’s physical scale visible, while engineering records are needed to establish how effectively the full communication experiment worked.
