Follow staging and precision insertion

A multistage rocket releases spent structures so later propulsion does not have to carry them for the whole journey. Burning propellant, shutting down through burnout, separating hardware and igniting another stage are distinct events. A period between burns is not automatically a malfunction.

The published Epsilon-2 quick-look sequence lists first-stage burnout at 1 minute 52 seconds, stage separation at 2 minutes 40 seconds and second-stage ignition at 2 minutes 45 seconds. The intervals are 48 seconds and 5 seconds. The source labels these as preliminary estimates and defines its pressure thresholds; they are not a universal sequence for every Epsilon flight.

The 2018 manual describes three solid-propellant stages and an optional Post-Boost Stage, or PBS, to improve orbit-injection accuracy. Its table identifies hydrazine for the PBS. Therefore, calling the principal launcher a solid rocket does not mean every propulsion device in an optional configuration burns solid propellant.

The large stages and the optional precision stage do different work. A small correction capability can be valuable near the delivery condition even when its thrust is much smaller than a main stage’s thrust. This is a configuration-specific explanation, not a claim that every payload requires a PBS or that the 2018 design describes all later Epsilon S hardware.

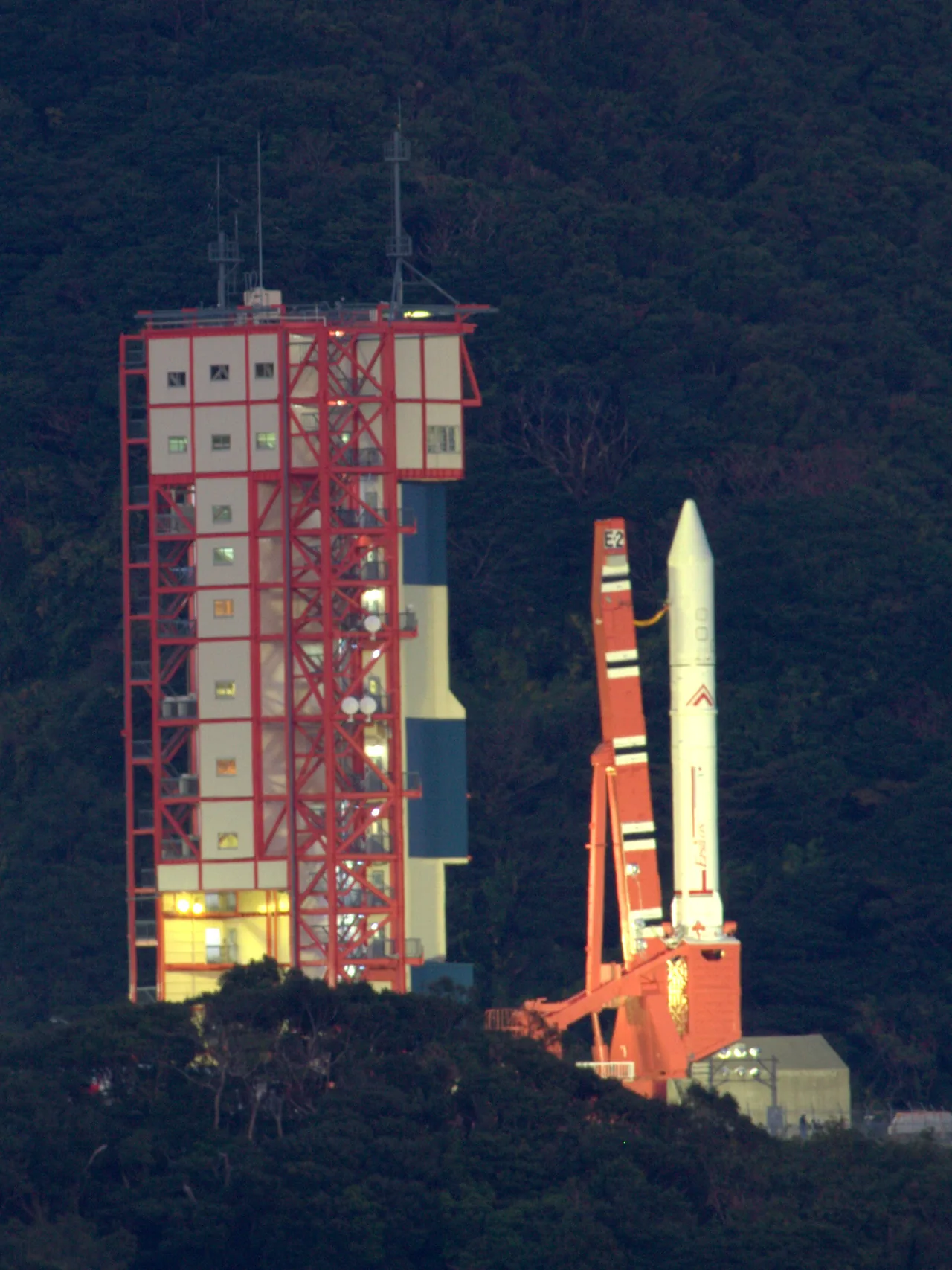

The Epsilon Flight 2 photograph shows the rocket standing beside its service structure before the ERG mission. The E2 marking helps identify the vehicle, while its visible support and absence of an exhaust plume distinguish this frame from ascent. The photograph does not show the internal stage sequence or the later separation of the spacecraft.

ISAS’s dated flight report supplies that later evidence: ERG separation was confirmed roughly 13 minutes 27 seconds after liftoff on December 20, 2016. A launch-site image and a mission result complement each other because each records a different part of the story.
