Lesson 5 of 6 · Horizons, accretion & gravitational evidence
Observe the surroundings of a black hole
10 minute lesson · 3 checks along the way
Your goal for this lessonDistinguish a black hole’s event horizon from its luminous surroundings and apply a carefully stated horizon-size model.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
A horizon is a causal boundary
A black hole has an : a boundary beyond which signals cannot escape to distant observers in the classical description. It is not a solid shell on which infalling material lands. Light detected from an accreting black-hole system was emitted outside that boundary. An image of bright surrounding material therefore does not show light traveling outward from the interior.
General relativity predicts extreme behavior within black holes, including singularities in its classical solutions. A singularity is not an observed luminous point, and the prediction may indicate where a more complete theory is required. Evidence for a compact gravitating object and its horizon-scale environment should be distinguished from claims that a telescope has measured the ultimate state of matter at its center.
Nearby material can be luminous
Accretion means matter accumulating onto an object. Gas with angular momentum can form an around a black hole. Stresses and magnetic interactions redistribute angular momentum, allowing some material to move inward while energy is released. Heated gas and energetic particles can radiate across many wavelengths. A black hole with little available material may be dim; a dramatic disk is not required by the definition.
NuSTAR observes high-energy X-rays associated with extreme environments, including accreting black holes. Its assembly photograph shows the instrument, not a black hole or an X-ray measurement. Spectra and variability from subsequent observations probe hot material outside the horizon. Jets likewise involve material and fields in the surrounding environment; their escape does not demonstrate that something crossed outward through an event horizon.

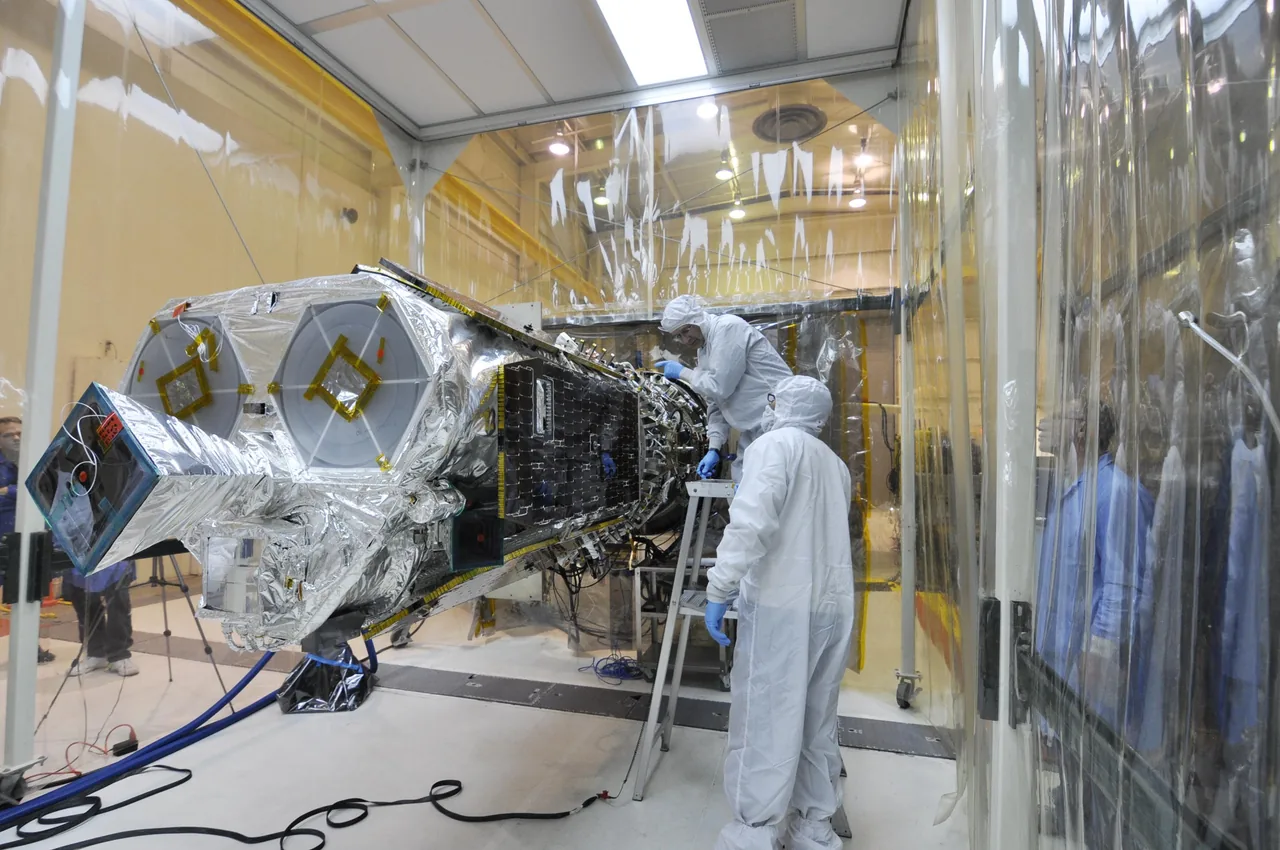

Technicians complete mating NuSTAR with its Pegasus XL rocket in an environmental enclosure at Vandenberg. This is the X-ray observatory’s hardware before launch, not an image of a black hole. Its later measurements test the emitting environments around compact objects.
Look closely
What would be needed to move from this hardware photograph to a claim about an accretion disk?
See what to notice
Calibrated observations such as X-ray spectra and their changes over time, together with a physical model and independent source constraints. A photograph confirms the instrument’s appearance and preparation, not the properties of a distant source.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Calculate a horizon, with the assumptions attached
For a nonrotating, electrically uncharged black hole, the is Rs = 2GM/c². Using rounded constants gives approximately 3 kilometers per solar mass. A hypothetical 10-solar-mass black hole therefore has a horizon radius near 30 kilometers, whereas a 100-solar-mass example has a radius near 300 kilometers. The tenfold mass change produces a tenfold radius change in this model.
These are radii, so the corresponding diameters are about 60 and 600 kilometers. They are not the sizes of an accretion disk or the apparent dark shadow in a image. Light propagation makes the observed shadow different from the horizon, and rotation changes the relevant spacetime geometry. Quoting a simple number is useful only when the quantity, units, and simplifying assumptions remain attached.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Ask what the surrounding motion requires
Far from a spherical object, its gravitational influence depends primarily on mass, not on whether its surface is ordinary matter or lies inside a horizon. In a thought experiment, replacing a star with a nonrotating black hole of the same mass does not suddenly pull a distant planet inward by a stronger Newtonian force. That statement does not make close encounters safe or guarantee stable orbits at every radius outside the horizon.
A black-hole case becomes strong when measured motion requires substantial mass inside a very small region and alternative explanations fail additional tests. Accretion spectra, orbit measurements, horizon-scale imaging, and gravitational waves provide different constraints. An X-ray source alone can also be a neutron-star system. Compare the complete evidence with the proposed object, rather than treating a bright disk, a dark patch, or a dramatic illustration as a sufficient diagnosis.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
