Lesson 5 of 7 · Constellations as apparent patterns
Separate a sky pattern from a group in space
8 minute lesson · 3 checks along the way
Your goal for this lessonExplain projected star patterns, distinguish asterisms from official sky regions, and avoid inferring physical association from apparent proximity.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Connect dots without inventing connections
People recognize shapes among bright stars: a hunter, a cross, a dipper, or a triangle. Those patterns help observers find their way around the sky and carry stories that differ across cultures. The lines joining the dots are human choices. They are not luminous cables or measured paths between stars. Different charts can draw different lines while referring to the same general region.
The International Astronomical Union defines 88 constellations as bounded areas covering the sky. In that formal usage, an object “in Orion” appears within Orion’s sky boundaries; it need not belong to the familiar drawn figure. An is a recognizable pattern, such as the Big Dipper, that need not be a whole official and may cross constellation boundaries.
Put depth back into the picture
A sky chart projects directions onto a surface. Two stars placed close together on it can be at very different distances from Earth. Some apparent groups do contain physically related stars, but a recognizable pattern alone does not establish that relationship. Astronomers need distance and motion evidence to investigate whether a group shares a physical origin or remains bound together.
Our original diagram separates an observer’s projected view from a schematic side view. It places fictional stars along nearby lines of sight at different depths. The screen pattern loses that depth information. Moving the observer a substantial distance would generally change the pattern; simply rotating a printed chart would only change how its unchanged pattern is displayed on the page.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Evaluate a proposed star-cluster label
Imagine two stars that appear close together in a small drawn triangle. Independent measurements put one 200 light-years from the observer and another 800 light-years away. A brochure calls them a compact pair separated by only a few light-years. Reject that claim: their differing distances already require a separation of at least 600 light-years, regardless of how close their directions look on the chart.
The actual separation can exceed 600 light-years if their lines of sight differ. You would need the angular separation as well as the two distances to calculate it precisely. The useful conclusion here is a bound, not a reconstructed three-dimensional map. A light-year is a distance unit; these numbers do not tell you either star’s age or the time needed to travel between them.
Restore the missing depth
Original fictional comparison, not a measured constellation or scale reconstruction. A projected pattern loses depth; the supplied distances put a lower bound on physical separation.
Open full-size diagram in a new tab: Restore the missing depthCheck 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Preserve uncertainty in an archive caption

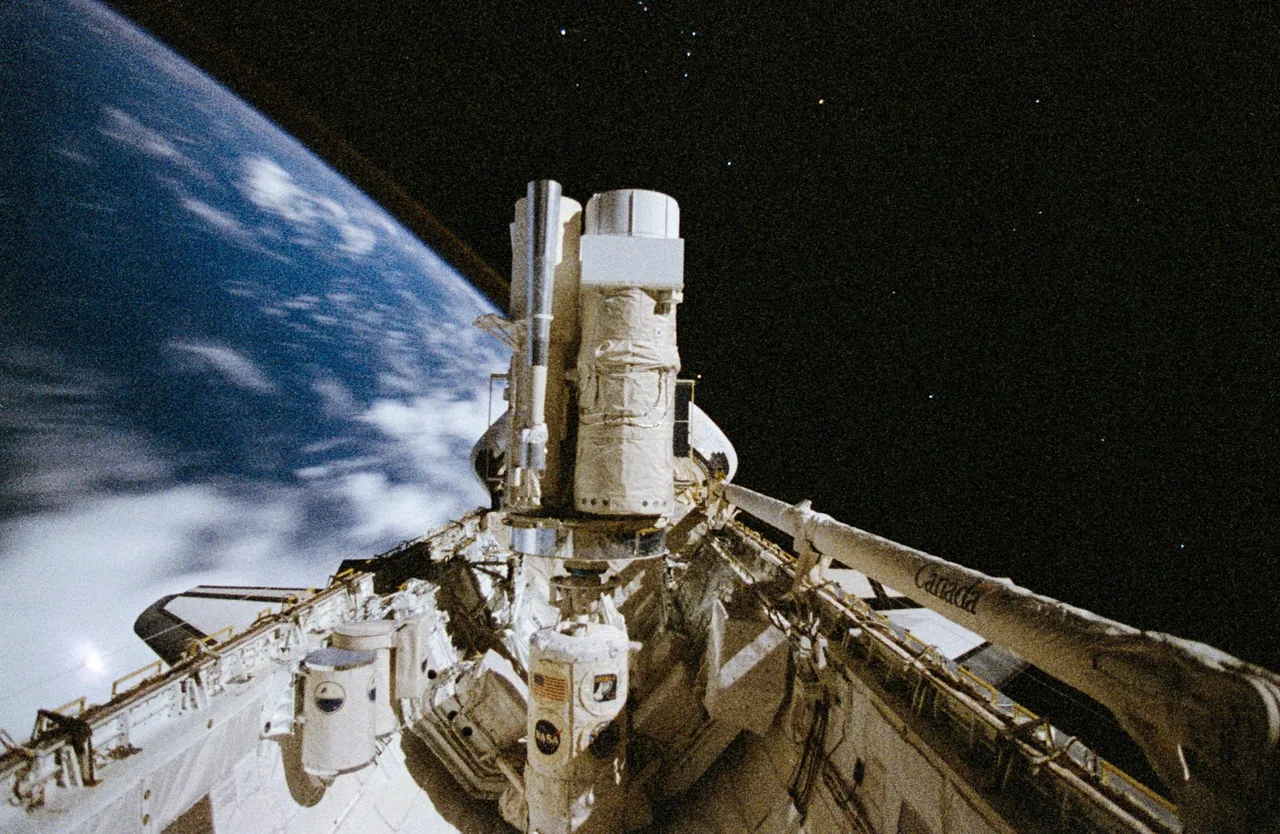

The Astro-2 photograph shows telescope hardware in Endeavour’s cargo bay with Earth and star points beyond. NASA’s historical caption tentatively identifies Orion in the field. Keep that qualification: the picture alone does not supply a calibrated star catalog match or distances to the points. The apparent proximity of stars to the nearby hardware is another , not a shared physical neighborhood.
To learn a pattern, first identify two or three reliably charted anchors and compare their relative arrangement. Accept that the pattern may appear rotated as the night progresses or from another . Keep cultural pattern names separate from claims about stellar physics. You can use a familiar shape as an address while still asking the scientific questions: which objects are present, how far away are they, and what evidence connects them?
Astro-2 in Endeavour’s cargo bay during STS-67 in March 1995. The preserved NASA caption tentatively identifies Orion in the star field. Foreground hardware and distant star points share a picture without sharing a physical neighborhood.
Look closely
Which parts of this image show projection, and which claim requires information beyond the picture?
See what to notice
The hardware and faint background points occupy the same projected field but different depths. Identifying the points as Orion requires a catalog comparison or the source record; NASA’s tentative wording is retained. No stellar distance or physical grouping can be measured from their apparent proximity here.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
