Qualify the engine cluster

The LE-7A was already part of H-IIA’s technical heritage. H-IIB used a pair of these first-stage engines. Reusing a developed engine can reduce the amount of entirely new component work, but the pair must operate with the new stage’s propellant system, structure and controls. A new arrangement creates new interfaces to verify.

Imagine two independently qualified engines connected to a shared stage. Their individual test results are useful evidence. They do not by themselves demonstrate the combined vibration environment, startup behavior or response to changing supply conditions. Integration tests ask whether the complete arrangement behaves as required.

Adding engines can increase available thrust. It does not automatically establish that a launcher can safely continue if one stops. Remaining thrust, vehicle mass, control authority, trajectory and fault response all matter. Without demonstrated capability for the relevant flight phase, an engine cluster should not be described as guaranteed backup propulsion.

For an original simplified force exercise, suppose two engines provide 100 units of thrust each and a particular flight segment requires at least 150 units. Losing one leaves 100 units, below the requirement. This is a fictional comparison, not H-IIB flight data; it shows why counting engines alone cannot establish fault tolerance.

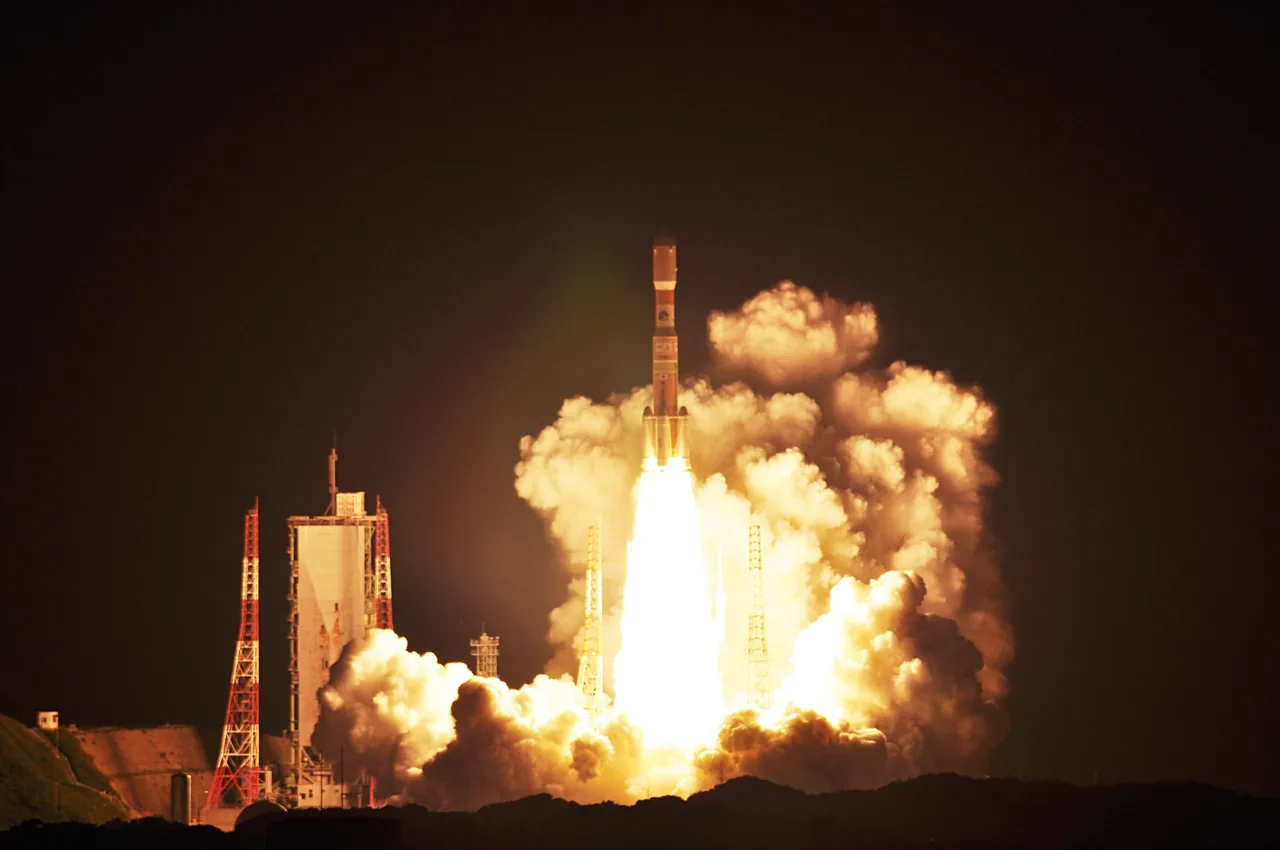

H-IIB’s first launch on September 11, 2009 in Japan carried the HTV demonstration spacecraft, recorded here as HTV-1. The night photograph shows powered ascent above Tanegashima. The completed launch record provides evidence about the whole flight that a single photograph cannot supply.

The 2012 project-manager account also describes changes between flights, including fairing improvements and work on newer avionics. A vehicle’s configuration can evolve within a program. When assessing heritage, ask which parts remained the same, which changed and what evidence covers the changed combination. A program name alone is not a complete hardware specification.
