Connect engine design to flight

LE-9 uses liquid hydrogen and liquid oxygen with an expander-bleed cycle. In the design explanation published by JAXA, hydrogen takes heat from the chamber walls and the heated gas drives turbopump machinery. That machinery helps feed propellants into the engine. Cooling and propellant supply are therefore connected parts of the design.

JAXA selected this approach to simplify the engine relative to earlier designs. Simplicity can reduce some manufacturing and integration burdens, but it does not make testing unnecessary. Pumps, combustion, structures and controls must work together across the conditions of an actual flight.

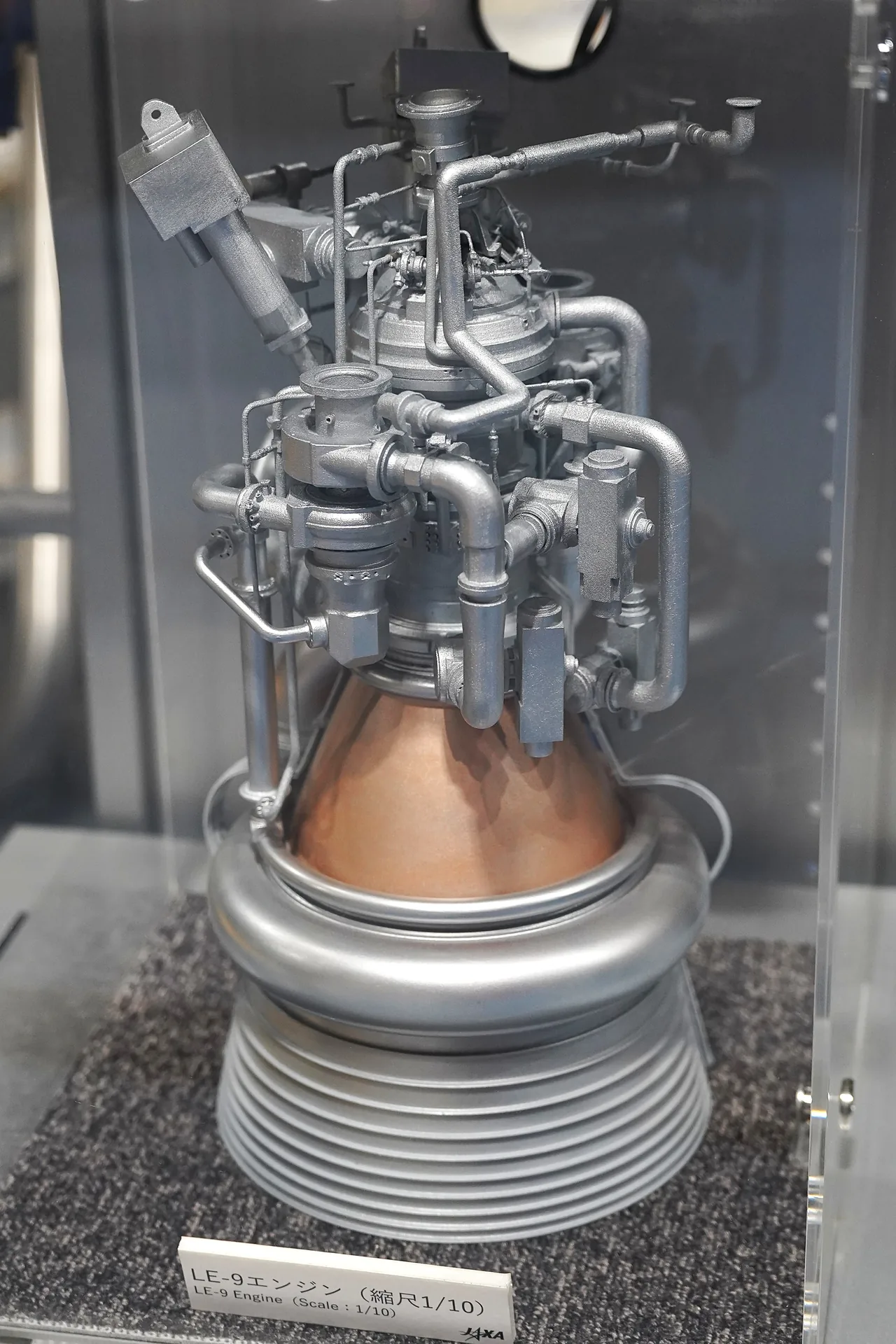

The lesson photograph shows a one-tenth-scale LE-9 model at JAXA’s Tsukuba Space Dome. Its nozzle and pipework help a visitor examine the engine’s form. The sign identifies it as a scale model; it is not a flight engine and cannot supply evidence of a successful firing.

In an original scale exercise, a 12-centimetre feature on a geometrically accurate one-tenth-scale model would correspond to 120 centimetres, or 1.2 metres, on the full-size object. That multiplication applies to length. It does not mean thrust, mass or heat flow can all be multiplied by ten. The example does not measure a specific part in this photograph.

In an original simplified vertical model, upward thrust is 6,000 kilonewtons, downward weight is 5,000 kilonewtons and mass is 500,000 kilograms. Ignoring drag, the net upward force is 1,000 kilonewtons, or 1,000,000 newtons. Dividing net force by mass gives an upward acceleration of 2 metres per second squared. These are fictional values, not an H3 flight calculation.

The instantaneous model leaves out changing propellant mass, drag, steering and engine variation. It nevertheless exposes a common mistake: using all the thrust as the net force without subtracting weight. An engine’s thrust specification matters, but a launch trajectory requires the whole vehicle and environment.
