Lesson 2 of 6 · Rocks, images & inference
Separate the record from the explanation
8 minute lesson · 3 checks along the way · Optional video
Your goal for this lessonDistinguish measured features from explanations of how they formed, and use several observations to support an inference without overstating it.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
What did the rover actually record?
Curiosity photographed rocks containing rounded pebbles during its early exploration of Gale crater on Mars. Researchers described sizes, shapes, layers, and how the fragments were packed together. They interpreted the outcrops as deposits left by an ancient stream. Those are connected statements, but they play different roles: the recorded features are evidence; past flowing water is an explanation of how those features came to exist.
An is not necessarily a bare number seen directly by a human eye. A camera converts arriving light into a digital record, and measurements may require scale information and processing. Calling a description observational does not make it infallible. It means identifying what was recorded and how, so that the next step—the about a process or history—can be examined separately.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
A strong interpretation explains a collection of clues
Rounded stones on Earth can result from repeated collisions during transport. For the Martian outcrops, pebble size, rounding, and arrangement worked together in the argument for flowing water. NASA’s route map explains that some fragments were too large for wind transport. The later analysis also considered pebble-rich and sand-rich layers. The interpretation rested on an assemblage of evidence rather than on a single familiar-looking shape.
Earth provides useful comparisons, but analogy has limits. A similar-looking object does not guarantee an identical history on another world. The useful question is whether a proposed process could produce the observed combination under the conditions being investigated. Gravity, material properties, and the surrounding geological setting matter. Comparing mechanisms is more informative than saying that a photograph simply “looks like a river.”
Compare the evidence
A discovery map and a later analysis
Follow the difference between locating a clue and explaining its physical history.
Early outcrop record
- When and where
- NASA map release: September 27, 2012 · Curiosity’s route in Gale crater, Mars
- Purpose
- Locate the rocky clues encountered along the route.
- What it supports
- The map description identifies embedded rounded gravel and notes sizes inconsistent with wind transport.
- What remains uncertain
- The map is a record of sites and features, not a direct recording of an ancient stream.
Quantified geological interpretation
- When and where
- NASA/JPL report: May 30, 2013 · Goulburn, Link, and Hottah outcrops
- Purpose
- Assess whether the observed deposits fit sustained stream transport.
- What it supports
- The analysis compared pebble shapes, sizes, packing, and layering with stream processes.
- What remains uncertain
- The geological interpretation does not by itself establish the presence of organisms.
Which proposed claim would require evidence beyond both cards: past water transport or ancient organisms?
Compare your reasoning
Both sources address the rocks and their transport history. A claim about organisms needs evidence that tests biological versus nonbiological explanations. The stream interpretation can remain strong while that additional question is open.
Work through a decision
Build an evidence-to-claim chain
For a worked reading exercise, sort three statements into roles: “The image contains rounded fragments”; “water transported the fragments”; and “microbes lived in that water.” The first describes a feature, the second proposes a physical history, and the third adds a biological claim. Support for the transport interpretation does not automatically transfer to the claim about life. Each additional claim needs evidence that addresses its own alternatives.
Now test the wording of a museum label. “Curiosity photographed a river flowing past the rover” would be inaccurate for these rock observations. A better label says that the rover recorded deposits interpreted as evidence of ancient stream flow. The difference matters: the image shows preserved material in the present, while the explanation reconstructs a past event. Historical science can investigate events without having witnessed them directly.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Keep the observing context attached

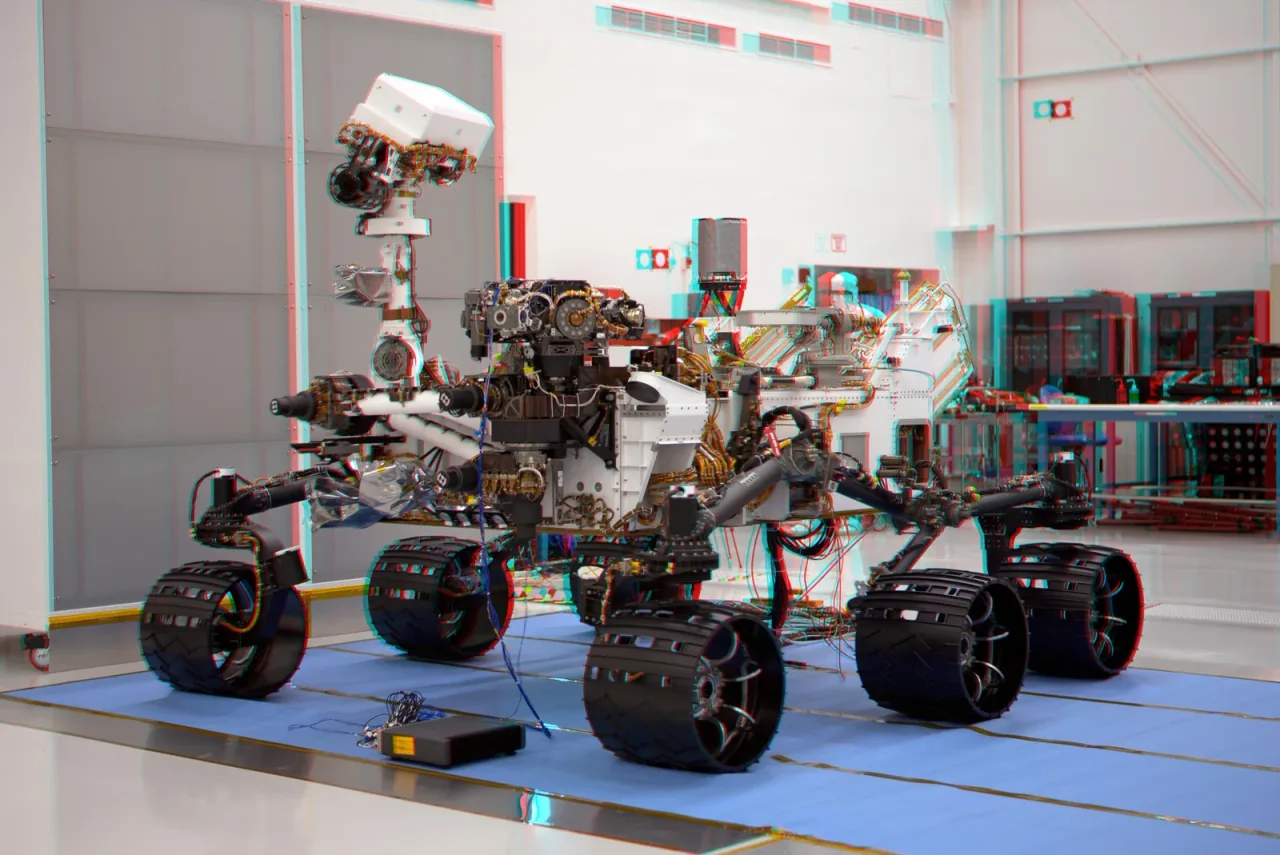

The accompanying Curiosity photograph shows the rover in an assembly building on Earth in 2011. Its red-and-blue outlines come from combining a stereo pair for depth viewing. The image helps explain the observing hardware and the importance of processing information. It is not a picture of the streambed, and its display colors are not evidence that the rover’s metal had those colors.
Before accepting an interpretation, write an evidence sentence, an explanation sentence, and a limit sentence. For example: rounded fragments occur together in a documented outcrop; transport by flowing water explains several of their properties; these rocks alone do not establish that organisms lived there. This habit does not weaken the geological result. It makes the result more precise and shows what a later investigation would need to add.
Curiosity in JPL’s Spacecraft Assembly Facility on May 26, 2011. NASA combined left and right photographs into a stereo anaglyph; the red-and-blue offsets support depth viewing and are not the hardware’s natural colors. This is a ground photograph, not the Martian streambed.
Look closely
The mast, wheels, and room are visible. Why can this image explain the rover’s hardware without directly establishing the ancient stream interpretation?
See what to notice
It documents the observing platform before flight, and its processed stereo presentation is disclosed. Evidence for the stream interpretation comes from the later rock observations and geological analysis, not from the assembly-room setting or the anaglyph colors.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
