The April 1983 Rohini RS-D-2 spacecraft carried a Smart Sensor Camera. ISRO describes visible and infrared imaging, onboard classification of ground features and work on deriving attitude and orbital information from images. Those are experimental capabilities, not merely a collection of attractive pictures.

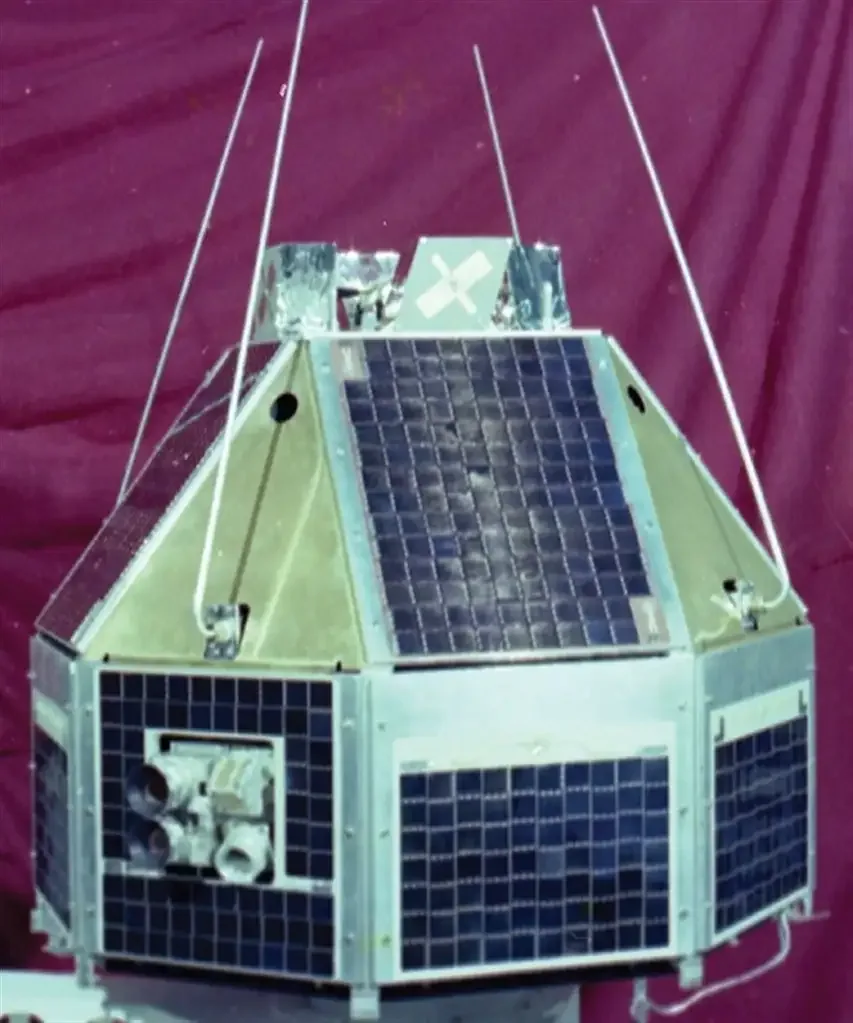

The ground photograph shows solar-cell-covered faces, antennas and optical apertures. The spacecraft record identifies the payload; the image alone cannot establish which data products were successfully returned. Looking at hardware and reading an experiment’s results are complementary ways to understand its purpose.

Consider an original camera exercise: a row of 200 samples spans a 2-kilometre strip on the ground. The nominal spacing is 2,000 ÷ 200 = 10 metres per sample. That does not establish that every feature is located to within 10 metres, or that a 10-metre object will always be recognizable.

Location accuracy also depends on knowing the viewing direction, spacecraft position, timing and calibration. Classification introduces a further question: whether the measured signals distinguish the categories of interest under the actual conditions. A bright patch could need additional context before it can be interpreted as cloud, snow or another surface.

The value of a development program includes engineering methods and experience that later teams can reuse. SLV-3 contributed to the path toward ASLV, PSLV and GSLV, but those programs had their own designs and objectives. Technical inheritance does not mean that the later vehicle was an unchanged copy.

A useful transfer record says what the earlier program demonstrated, which assumptions still apply and what needs to be tested again. For example, a camera-processing method may need recalibration for a new sensor, while a stage-separation procedure may need new analysis for changed loads. The original accomplishment remains valuable when its limits are carried forward with it.
