Choose a sounding mode

A fixed-frequency sounder repeats measurements at one transmitted frequency, helping track how its response changes with time. A swept-frequency sounder samples a frequency sequence, revealing structure across a broader band. A sweep takes time: variation along the record may reflect changing frequency, changing conditions or both.

Isis 2 offered several operating patterns. Its documented swept-frequency mode begins with 3.3 seconds at a selected fixed frequency before the sweep. Mixed mode has a different meaning: the transmitter remains at a fixed frequency while the receiver sweeps. Changing the receiver setting is not the same as changing the transmitted signal.

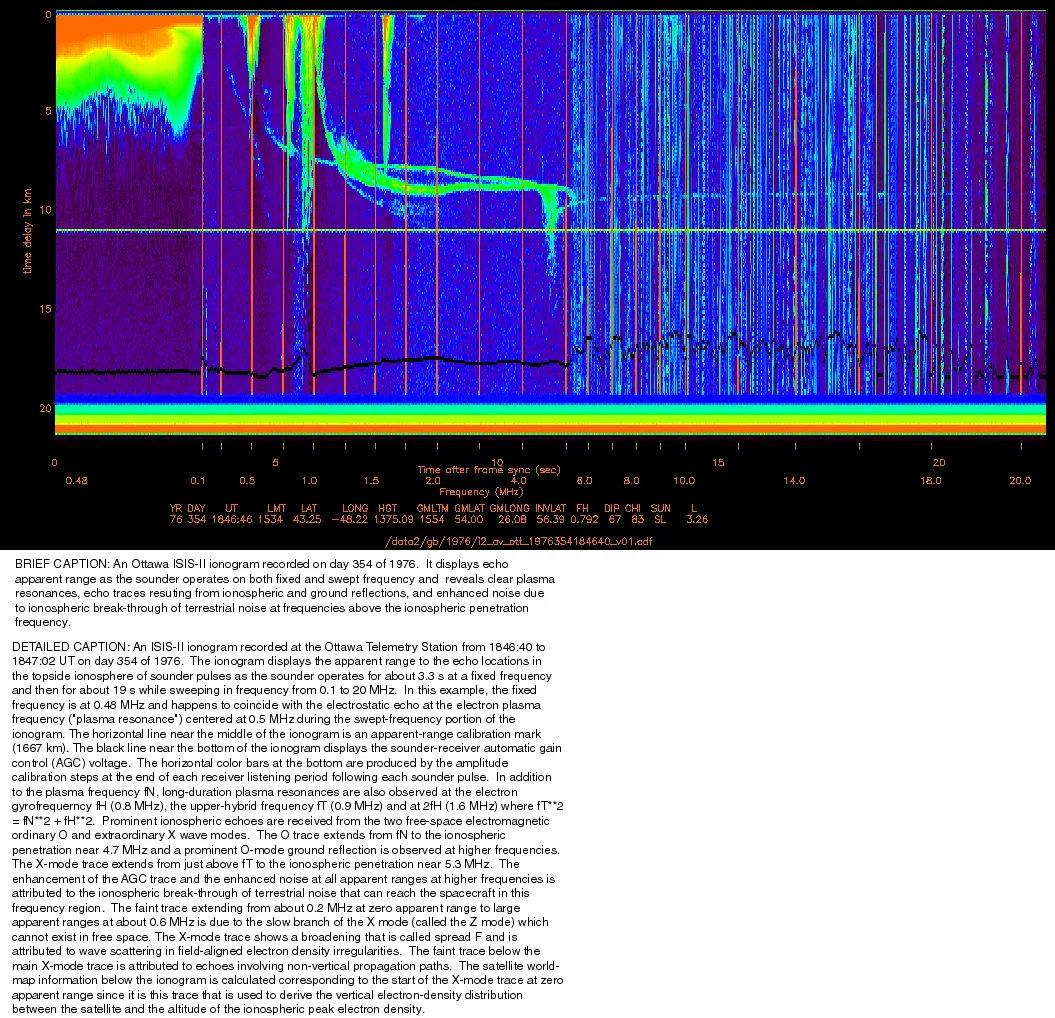

The NASA SPDF figure shows an Isis 2 observation received at Ottawa on day 354 of 1976. Its early segment uses a fixed 0.48 MHz transmission; a sweep follows. The display therefore includes both time and frequency labels. A single straight-line conversion from every horizontal position to transmitted frequency would misread the fixed segment.

Curving traces record different propagation responses, but not every bright line is an atmospheric feature. The figure’s original explanation identifies calibration markings and receiver gain information. Frequency markers help establish the scale. Before interpreting a line as a new plasma phenomenon, compare it with the instrument’s known behavior and the supplied explanatory text.

Separate transmitter setting from receiver tuning

An engineering description can list an available mode without proving that a particular observation used it. NASA’s historical mode notes describe a proposed VLF replacement pattern but report no identified evidence of its use in the telemetry reviewed. A capability list and a recorded operating history answer different questions.

In an original observing decision, a scientist wants to follow a short disturbance at one known frequency. Repeated fixed-frequency samples can reduce the ambiguity introduced by sweeping through frequencies while the disturbance evolves. A second scientist wants a frequency profile and can accept that acquisition spans time. A sweep better matches that question, provided the timing remains part of the interpretation.
