HTV: deliver supplies and support research

Japan’s H-II Transfer Vehicle, known as HTV or Kounotori, carried supplies to the International Space Station on nine flights from 2009 to 2020. H-IIB rockets launched the vehicles from Tanegashima. HTV-1 combined cargo delivery with flight demonstrations, while HTV-9 completed the original series. The spacecraft name identifies the cargo vehicle, not the rocket that launched it.

HTV accommodated both pressurized and unpressurized cargo. Crew members could enter its attached pressurized compartment to unload supplies, while external equipment needed robotic handling. A manifest must therefore specify more than total mass. An experiment rack — open definition, food package and exposed instrument can impose different requirements for packaging, access, temperature and movement through the station.

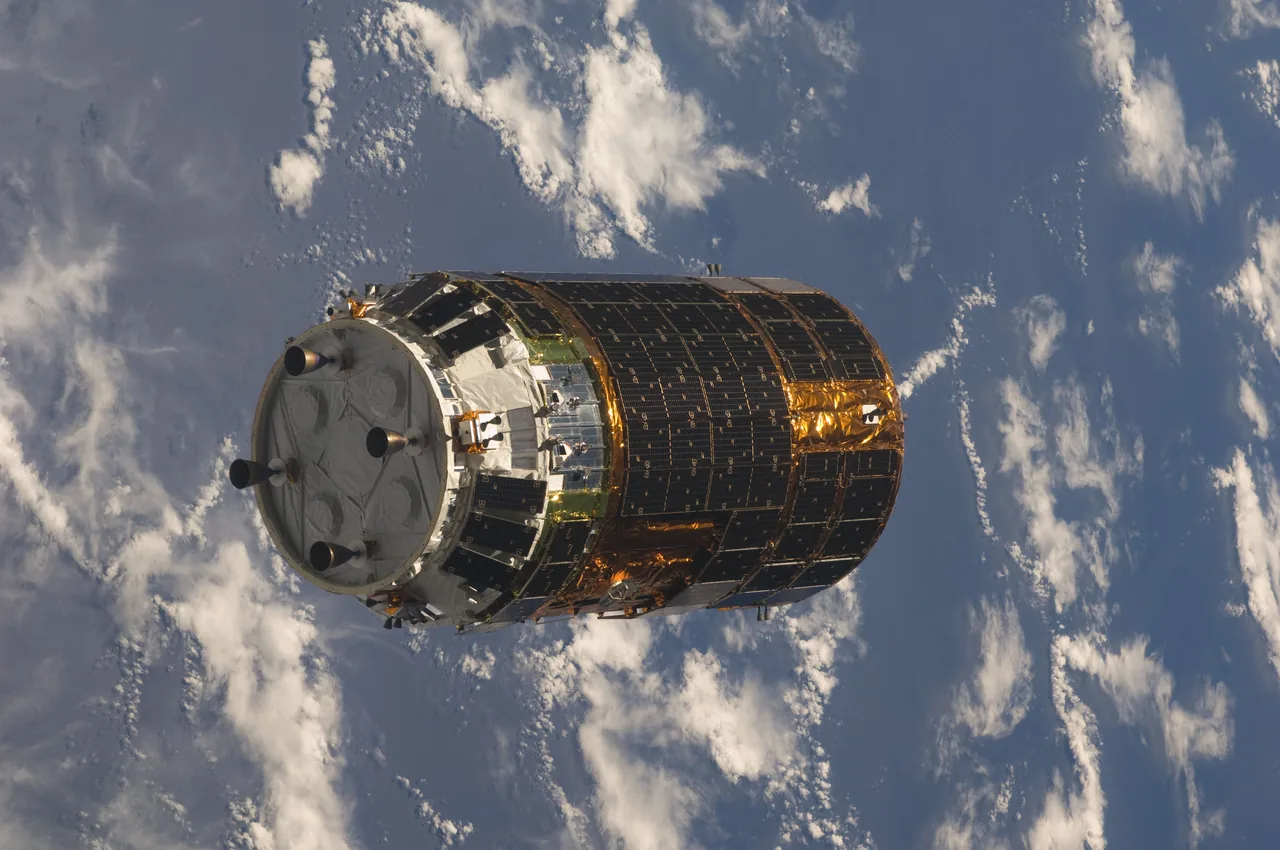

During an HTV arrival, the spacecraft approached the station and Canadarm2 captured it for attachment at a berthing — open definition port. This differs from a spacecraft making its own final docking contact. Accurate relative navigation and controlled approach remained essential even though an arm performed the final capture and positioning.

HTV-1 also demonstrated coordination between robotic systems. Its external pallet carried scientific payloads, and the station arm and Kibo’s arm participated in moving and returning the pallet. That sequence connects cargo transport to laboratory operations: arrival at the station was followed by installation work before the equipment could perform its intended research.

The main HTV spacecraft was expendable and disposed of through atmospheric reentry after its station visit. HTV-7 carried a separate Small Reentry Capsule for a 2018 demonstration. The capsule returned protein crystals, with records showing that the required cool conditions had been maintained during recovery. Returning that capsule did not make the entire cargo spacecraft reusable.

For a fictional sample-return plan, write separate requirements for orbital storage, transfer into the return container, descent, recovery and transport to the laboratory. A successful landing would not by itself establish an intact sample or an uninterrupted temperature record. HTV’s example shows why logistics can be part of the scientific method: the route from experiment to analyst can change the evidence being studied.
