Lesson 5 of 6 · What did the instrument actually measure?
What did the instrument actually measure?
10 minute lesson · 3 checks along the way
Your goal for this lessonMatch an instrument to its observable and bound what a local sample can establish.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
One rover, several kinds of evidence
A rover is a collection of instruments sharing a mobile platform, not a single machine that declares a rock’s complete history. Cameras record light and reveal textures, layer relationships, and sampling context. An alpha particle X-ray spectrometer helps measure elemental composition near a surface. Elements are chemical ingredients; their abundances alone do not uniquely identify the minerals in which they occur.
Mars Pathfinder / Sojourner demonstrated close investigations of rocks with its spectrometer. In the accompanying lander-camera mosaic, the rover is positioned at the rock called Moe. The picture records the arrangement of hardware and terrain, not the resulting chemical spectrum. NASA combined color-enhanced frames, including rover and terrain observations from different days. Treat the image as documented context rather than a simultaneous, unprocessed view of an experiment.

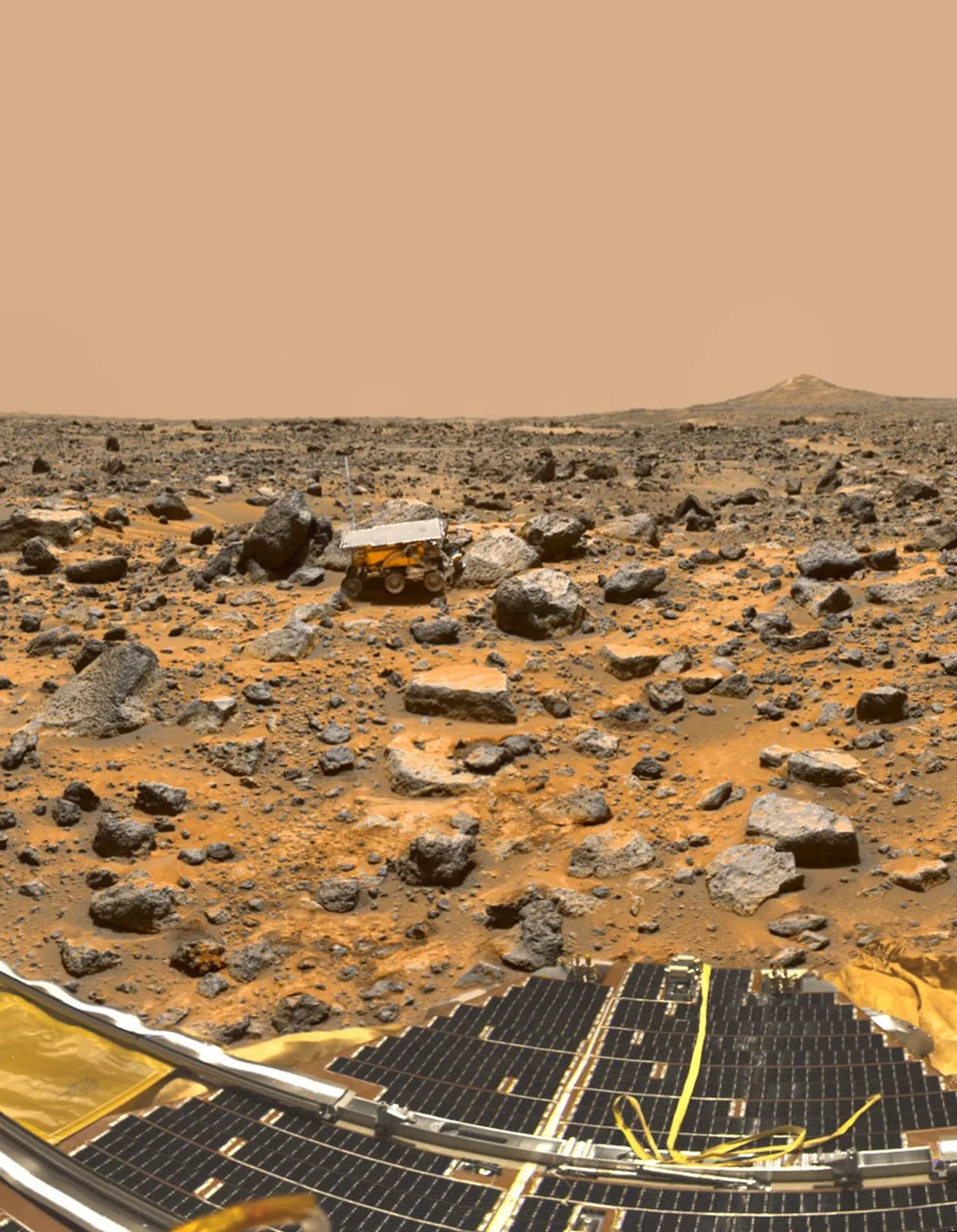

The Pathfinder lander’s camera shows Sojourner deploying its spectrometer against Moe. NASA’s color-enhanced, 75-image mosaic combines rover and terrain frames taken on different days. It records the measurement setting, not an elemental spectrum.
Look closely
What can you locate in the picture, and what result would require the spectrometer’s data?
See what to notice
You can locate the rover, nearby rocks, and the foreground lander. Identifying the sampled rock as Moe comes from NASA’s record. Determining elemental abundances needs calibrated spectrometer measurements; neither the rover’s pose nor enhanced rock color supplies that result.
Minerals, gases, and microscopic context
Mars Science Laboratory Curiosity carries CheMin, which uses of powdered samples to identify crystalline minerals. The pattern depends on how atoms are arranged, adding information beyond a list of elements. Its SAM suite analyzes gases, including those released when samples are heated. Heating can transform compounds, so a gas detected in the instrument must be interpreted through the preparation process and appropriate calibration.
Mars 2020 Perseverance combines close imaging with instruments such as PIXL, which maps elemental chemistry, and SHERLOC, which uses spectroscopy to investigate minerals and organic compounds. Matching chemical patterns to small-scale structures helps test how a rock formed or changed. No instrument measures every property equally well. Spot size, , sample preparation, and possible contamination all constrain what a result can say.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Work the evidence: sample size matters
Imagine a fictional 20-milligram powder sample whose analysis finds a making up 15 percent by mass. The carbonate amount is 0.15 × 20 = 3 milligrams. That result applies to the analyzed sample under the stated measurement model. It does not show that 15 percent of Mars is carbonate, or even that every part of the sampled outcrop has exactly that composition.
Plan a follow-up before making a regional claim. Analyze additional positions, record whether they sample beds or fractures, and compare preparation and calibration. A dust coating could differ from the underlying rock. If another instrument reports the same relevant elements, that is useful agreement, but it does not by itself establish the same crystal structure. Complementary measurements should test different parts of the interpretation rather than simply repeat its wording.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
A promising clue is a testable proposal
In September 2025, NASA reported a in a rock sampled by Perseverance in July 2024. The Cheyava Falls observations combined chemical and textural evidence that researchers considered important for testing biological and nonbiological explanations. “Potential” matters: the result was not a confirmed discovery of Martian life. A report’s publication date also differs from the date the rover collected the evidence.
The next question is which additional observations could separate competing origins. Organic molecules alone are insufficient because processes can produce them. Context, independent analyses, contamination controls, and tests of alternative chemistry all matter. A rover’s carefully documented local result can substantially change a scientific argument without settling the largest possible claim. Read the instrument, sample location, analysis method, and stated uncertainty before turning a discovery headline into a conclusion.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
Go to the source
Explore the evidence behind this lesson. These optional readings and videos open in a new tab.
- Read: NASA: Pathfinder on MarsSojourner at Moe; the image is a color-enhanced mosaic combining different days.
- Read: NASA: the CheMin instrumentDiffraction, mineral identity, and environmental interpretation.
- Read: NASA Goddard: SAM instrument factsGas analysis and heated samples; this page preserves its historical prelaunch wording.
- Read: NASA: Perseverance’s science instrumentsPIXL and SHERLOC perform complementary measurements.
- Read: NASA: the September 2025 potential-biosignature reportA dated finding with explicit need for further study, not confirmed life.
