Follow heat through a spacecraft
9 minute lesson · 3 checks along the way
Your goal for this lessonTrace conduction and convection through a cooling system, and explain why microgravity changes buoyancy without preventing forced circulation.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Conduction follows a material path
A warm electronic component can transfer energy through its mounting bracket into a cooler panel. This depends on microscopic interactions within the material, with mobile electrons also important in metals. The entire bracket does not need to travel with the energy. Net conductive transfer follows the difference; two contacting bodies at the same temperature have no net heat transfer from that difference.
For an ideal uniform bar in a steady state, conducted power is kAΔT/L. The material’s conductivity is k, cross-sectional area is A, length is L, and ΔT is the end-to-end temperature difference. Greater area or conductivity increases the transfer; a longer path reduces it under the same end temperatures. Real joints introduce , so an impressive metal strap can still perform poorly if its attachment is inadequate.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Convection moves the fluid as well
involves transfer associated with bulk fluid motion. On Earth, buoyancy can organize natural convection: a warmed region that becomes less dense can rise through denser surrounding fluid in a gravitational field. The result depends on the arrangement of heating and gravity. The phrase “heat rises” confuses this specific fluid mechanism with a universal rule; conduction and radiation have no preferred upward direction.
In an orbiting cabin, sustained -driven circulation is greatly reduced by the free-fall environment. Fans can still drive air, and pumps can still circulate liquid. does not require ordinary buoyant rising. Inside the International Space Station, cooling hardware carries energy toward external radiators. The moving coolant remains inside plumbing; the final transfer across the surrounding vacuum is mainly electromagnetic radiation, not a wind blowing across the radiator.

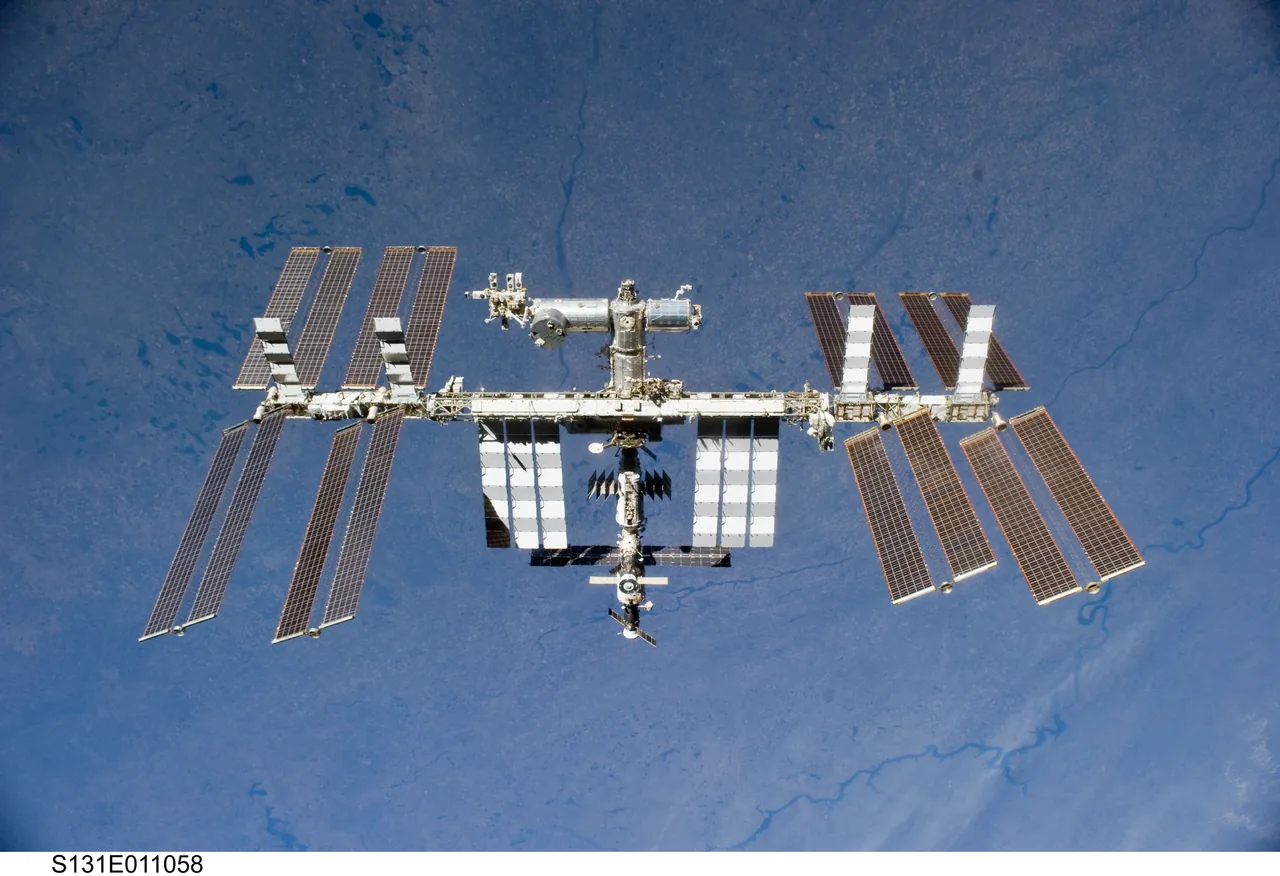

The International Space Station photographed from Discovery during STS-131 in April 2010. Broad solar arrays and pale external radiator panels serve different functions. The station’s cooling system moves energy through hardware and circulating fluids before radiators emit it to the surroundings. The coolant plumbing is largely hidden in this distant view.
Look closely
Why does the presence of large external panels not tell us that circulating coolant is unnecessary?
See what to notice
The panels still need a path that brings energy from warmer equipment to their emitting surfaces. Conduction and flowing coolant provide internal transfers; electromagnetic radiation carries energy across the surrounding vacuum. The photograph shows parts of that chain, not its flow rates or operating temperatures.
Work through a decision
Find the limiting thermal connection
Consider an invented steady conducting link with k = 100 watts per meter per , area 0.001 square meters, length 0.2 meters, and an end temperature difference of 20 kelvin. Its ideal conducted power is 100 × 0.001 × 20/0.2 = 10 watts. If an electronics package continuously dissipates 15 watts and this is its only exit path, these specified temperatures cannot remain steady.
A proposed second link doubles the area while preserving conductivity, length, contact quality, and end temperatures. It would conduct 20 watts in the same ideal model. That comparison identifies a possible improvement, not a complete design approval. The receiving panel must also reject the delivered energy. Otherwise it warms, changes the temperature difference, and removes the conditions under which the simple 20-watt estimate was obtained.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read a cooling system as a chain
Look at the station’s broad white panels and darker solar arrays in the archive image. Their different jobs connect: electrical power runs equipment, and much of that energy eventually becomes that must leave. NASA’s description of the station’s external ammonia loops documents pumps and radiators. A still photograph establishes their arrangement but does not measure flow rate, pipe temperature, or current cooling performance.
A useful fault investigation follows the whole chain: component to mounting contact, contact to coolant or structure, then radiator to its surroundings. A pump failure, an obstructed path, and an unfavorable radiator view can all produce elevated component temperatures for different reasons. Choose sensors that separate those explanations. Increasing airflow inside a cabin cannot fix every external heat-rejection problem, although it may improve a particular internal transfer step.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
