Lesson 5 of 6 · Magnetism and atmosphere loss
A magnetic field is not a sealed lid
9 minute lesson · 3 checks along the way
Your goal for this lessonDistinguish intrinsic and induced magnetic environments and explain atmospheric escape using inventories, rates, and several physical controls.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Compare the actual counterexamples
Mercury has an internally generated magnetic field yet only an extremely sparse . Venus has a dense atmosphere without a detected Earth-like global magnetic field generated by its core. Together, those observations defeat the simple claim that possessing a magnetic field guarantees a thick atmosphere, or that lacking one guarantees no atmosphere. The field matters, but it cannot be the whole explanation.
At Venus, solar ultraviolet radiation ionizes some upper-atmospheric material. The solar wind carries its own magnetic field, which interacts with this conducting region. Currents and the draping of the interplanetary field form an . This interaction can divert the solar wind while also enabling energy transfer and particle escape. An induced magnetic environment is different from a dynamo operating within a planetary interior.
Particles need a route and enough energy
Escaping particles must overcome the planet’s gravitational binding. Thermal motion, radiation-driven heating, collisions, and electromagnetic processes can contribute, depending on the particle and environment. Light particles often escape more readily than heavy ones under comparable conditions. Ionized and neutral particles do not respond identically to electric and magnetic fields. A complete account therefore asks which species escapes, from where, and by which mechanism.
Venus Express measured escaping ions, providing evidence about present-day loss processes. Those measurements are not a direct recording of the entire planet’s past. Ancient solar radiation, atmospheric composition, outgassing, and surface reactions may have differed. Mercury’s exosphere likewise connects the surface to space through supply and removal processes. Atoms knocked from the surface need not all escape; some follow trajectories that bring them back.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Separate an inventory from a loss rate
Consider two fictional atmospheres of the same gas. World A contains 100 units of atmospheric mass and loses 1 unit each year; world B contains 1000 units and loses 2 units each year. If those rates remain constant and nothing replenishes either atmosphere, the simple -divided-by-rate times are 100 years and 500 years. B loses more mass each year, yet its larger inventory gives the longer depletion time.
These are bookkeeping illustrations, not predictions for Mercury or Venus. Real rates change with solar conditions, composition, temperature, and the evolving reservoir. Supply from a surface or interior can partly offset loss. Comparing only a detector’s particle count is even less sufficient: calibration, particle masses, measured directions, area, and time are needed before obtaining a global mass-loss rate. Always identify the quantity being compared.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Design measurements around coupled systems
BepiColombo pairs the Mercury Planetary Orbiter (BepiColombo MPO) with the Japanese Mio orbiter to investigate complementary aspects of Mercury and its environment. The photographed Mercury Planetary Orbiter is actual prelaunch hardware, not a diagram of magnetic shielding. Measurements of fields, particles, surface properties, and solar conditions can connect changes in an exosphere to possible sources and loss mechanisms. Several synchronized viewpoints help separate local structure from changes with time.
The broader comparison is a system problem. Gravity, radiation history, supply, chemistry, temperature, and magnetic geometry interact. A magnetic field can alter where particles enter and leave; it is not an impermeable wall. Ask whether a proposed explanation predicts the measured species, fluxes, and variations while also accounting for the atmosphere that remains. That is more informative than sorting planets into protected and unprotected boxes.

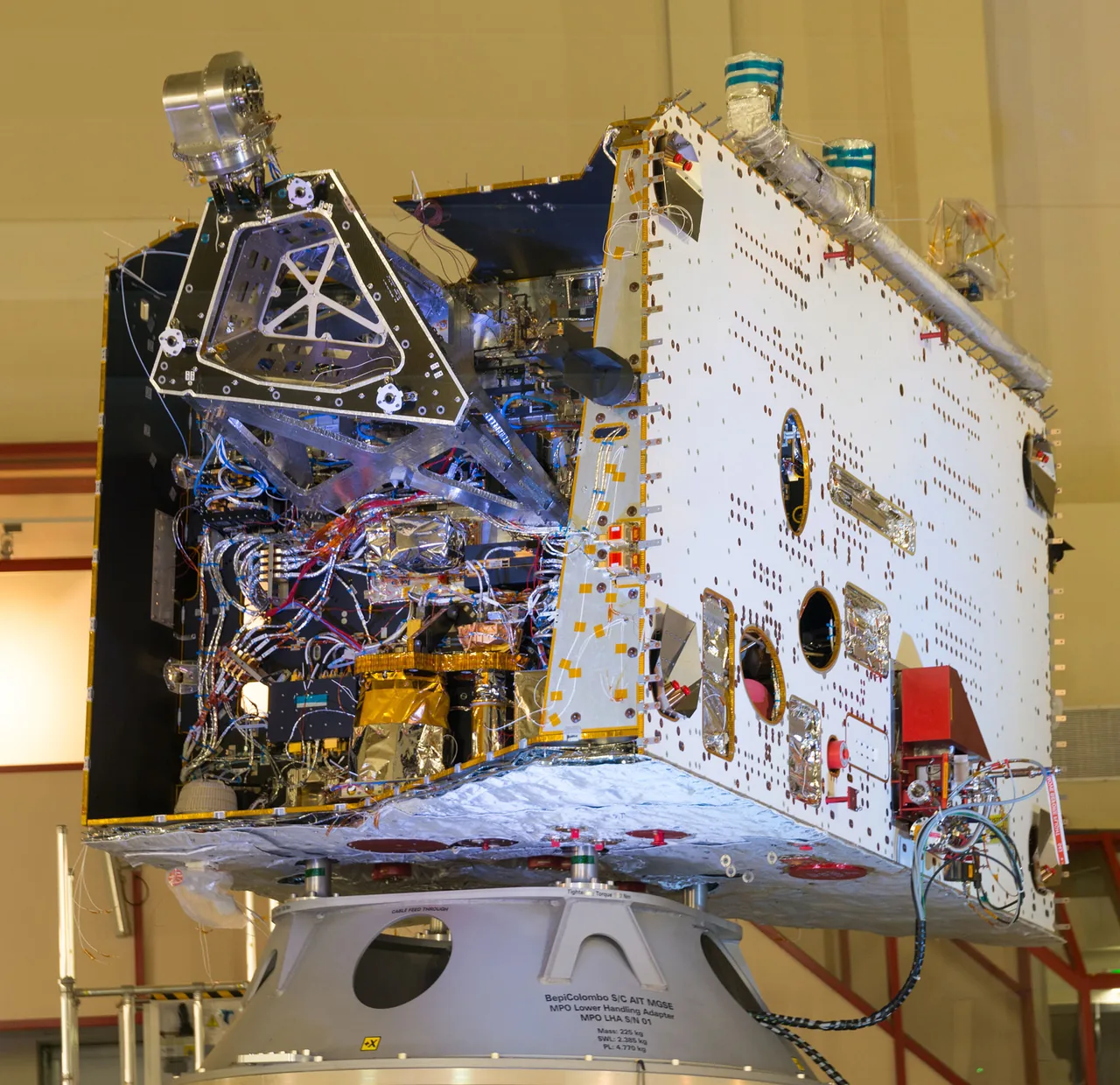

BepiColombo MPO at ESTEC on October 4, 2015, photographed before launch. The open spacecraft and its handling stand provide a view of real hardware used to investigate Mercury. This is not a picture of Mio or of a magnetic field around the planet. The source photograph shows a ground configuration rather than the complete operating arrangement in space.
Look closely
What additional data would be needed to connect this hardware to a claim about atmospheric escape?
See what to notice
Calibrated particle and field observations, their times and locations, instrument response, and a physical model connecting local measurements to sources and losses are needed. Visible panels and wiring do not themselves show particle trajectories or atmospheric retention.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
