Maintain equipment with Dextre

Dextre has two articulated arms and specialized hand mechanisms with tools, cameras and connections. It can replace selected external station equipment, including cameras and electrical components. Canadarm2 and the mobile base help bring it to a worksite; fine manipulation and long-distance positioning are complementary tasks.

An equipment box can be designed for replacement by giving it accessible fasteners, compatible grasp points and service connections. That does not mean every box outside the station is robotically replaceable. The tool, interface and access path must support the particular task.

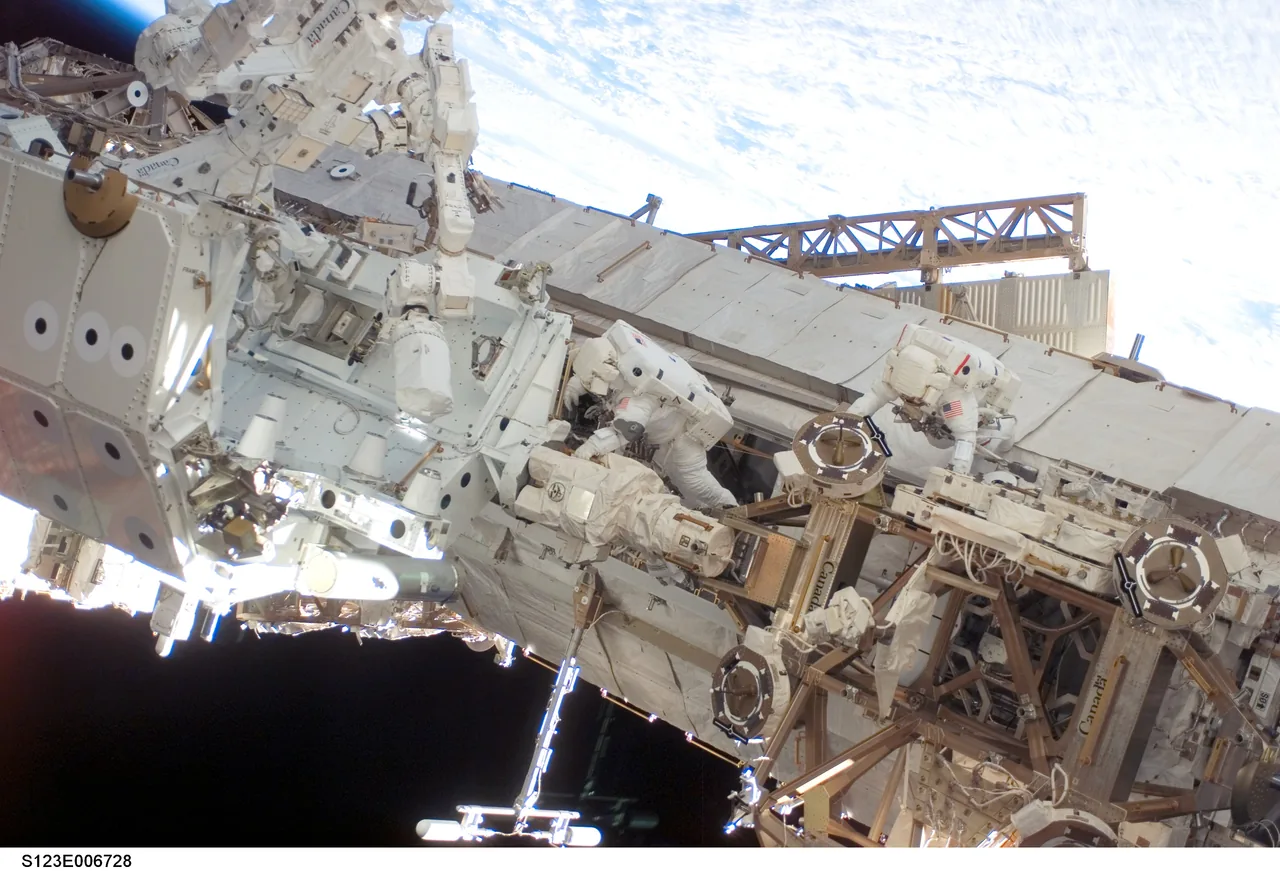

During STS-123, Richard Michael Linnehan and Robert L. Behnken helped assemble Dextre. The preserved NASA photograph documents their March 17–18, 2008 spacewalk work on its spare-parts platform, tool-handling assembly and checkout. Human assembly and later robotic operation belong to the same history.

For an original maintenance model, separate three outcomes: the new unit is mechanically installed, its services are connected, and its function is confirmed. A successful fastening operation establishes only the first outcome. A camera image cannot, on its own, prove that the unit is returning valid data.

Suppose a classroom exercise assigns each of those three stages an independent 0.9 probability of success. The modeled probability that all three succeed is 0.9 × 0.9 × 0.9 = 0.729, or 72.9 percent. Taking the average would answer a different question. These invented probabilities are not Dextre reliability measurements.

Real failures can share causes: a bad connection might affect several checks. Independence is therefore an assumption to examine, not an automatic property of engineering tasks. The calculation helps explain why a complete outcome can be harder to achieve than any single step.

Three necessary outcomes

NASA’s Robotic Refueling Mission used a dedicated module with activity boards, valves and tools on the station. Dextre performed a fluid-transfer demonstration in January 2013. The module used ethanol to test servicing techniques; this was not a claim that an unrelated operational satellite had received its mission propellant.

The distinction does not diminish the result. A testbed can isolate difficult operations and establish evidence for a later system. But a future application may add different interfaces, thermal conditions or fluids. Those additional requirements need their own evidence.

Read a statement about Dextre by identifying the object, action and outcome. “A tool engaged a test valve” and “an operational satellite resumed its mission” are different claims. The first cannot silently stand in for the second.
