Lesson 3 of 4 · Read the rhythm without overclaiming
Read the rhythm without overclaiming
6 minute lesson · 3 checks along the way
Your goal for this lessonRelate period to frequency and interpret the Procyon result without treating non-detection as proof of absence.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Read & understand
From a repeating curve to a frequency
Asteroseismology uses oscillations to investigate stellar interiors. Mechanical disturbances inside a star can affect its surface and emerging light. The telescope receives electromagnetic radiation; it does not record sound traveling from the star through empty space. The connection between brightness and internal structure requires a physical model.
For an ideal repeating signal, frequency is one divided by period. An invented 1,000-second oscillation has a frequency of 0.001 cycles per second, or 1,000 microhertz. A 2,000-second oscillation has half that frequency. Microhertz describes repetition, whereas ppm describes relative brightness variation.
A frequency plot summarizes how much variation appears at different repeating rates. Several peaks can represent several contributions. It is not a direct photograph of the interior, and the tallest peak alone does not uniquely determine a star’s age, composition or mode geometry.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Observe long enough, sample often enough
Observing duration and sampling interval answer different questions. Long coverage helps distinguish nearby frequencies; frequent measurements help follow rapid changes. Collecting more samples within one short interval does not create the long baseline that was never observed.
An original clock example illustrates the distinction. A 20-minute sequence and a 20-day sequence might both take one point per minute, but only the latter tracks what happens over many days. Conversely, measuring once per day can miss a minute-scale variation even if the campaign lasts a year.
Gaps and repeated interruptions can introduce alternative apparent rhythms, called aliases. A candidate peak should be checked against the actual observation times and instrument cycles. The teaching diagrams here show idealized patterns; a real analysis must account for noise, irregular sampling and changing oscillations.
Period and frequency are reciprocal
Original teaching diagram. Ideal teaching signals, not a reconstruction of Procyon.
Open full-size diagram in a new tab: Period and frequency are reciprocalCheck 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
What Procyon taught researchers
Early MOST observations of Procyon in 2004 and 2005 produced non-detections. The later Huber and colleagues paper reports that the improved 2007 photometry contains oscillation frequencies matching a ground-based radial-velocity campaign. That evidence supersedes the sweeping statement on the old CSA page that Procyon does not oscillate.
The same 2011 study did not settle the detailed identification of the frequency ridges. Detecting a pattern and assigning every mode are different levels of inference. A result can strongly support oscillations while still leaving a scientifically important classification unresolved.
Use a fictional instrument with a practical detection threshold of 25 ppm under its stated conditions. Failing to detect an injected 10-ppm signal would not establish zero amplitude. Likewise, a scientific non-detection has meaning only with its sensitivity, duration, analysis and assumptions attached. A later improvement can change the evidence without making the earlier measurements imaginary.

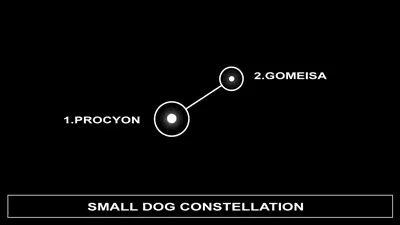

CSA schematic identifies Procyon in Canis Minor, the Small Dog constellation. Circle sizes and connecting lines are illustrative; this is neither a measured light curve nor a diagram of the stars’ physical separation. Full source frame retained. Credit: Canadian Space Agency.
Look closely
Could these circles establish Procyon’s oscillation amplitude?
See what to notice
No. They identify a target in a schematic. Amplitude requires calibrated brightness measurements over time; the linked MOST card supplies mission context.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
