Lesson 1 of 6 · Position and motion
Describe motion from a chosen viewpoint
8 minute lesson · 3 checks along the way
Your goal for this lessonChoose a reference frame and distinguish position, displacement, distance traveled, and relative motion.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Give a location meaning
“The spacecraft is moving” leaves an essential question unanswered: moving relative to what? Soyuz TMA-20 approached the International Space Station while both vehicles traveled around Earth. A camera on the station could record a slowly changing separation even though their positions relative to Earth changed rapidly. Motion is not a label attached to an object without specifying the viewpoint used to measure it.
A provides that viewpoint and a coordinate system. For a simple straight corridor, put an at one hatch and choose the direction toward the other hatch as positive. A sample box at x = +3 m is three meters along that direction from the origin. Another box at x = −2 m is on the opposite side; the minus sign does not mean a negative physical length.

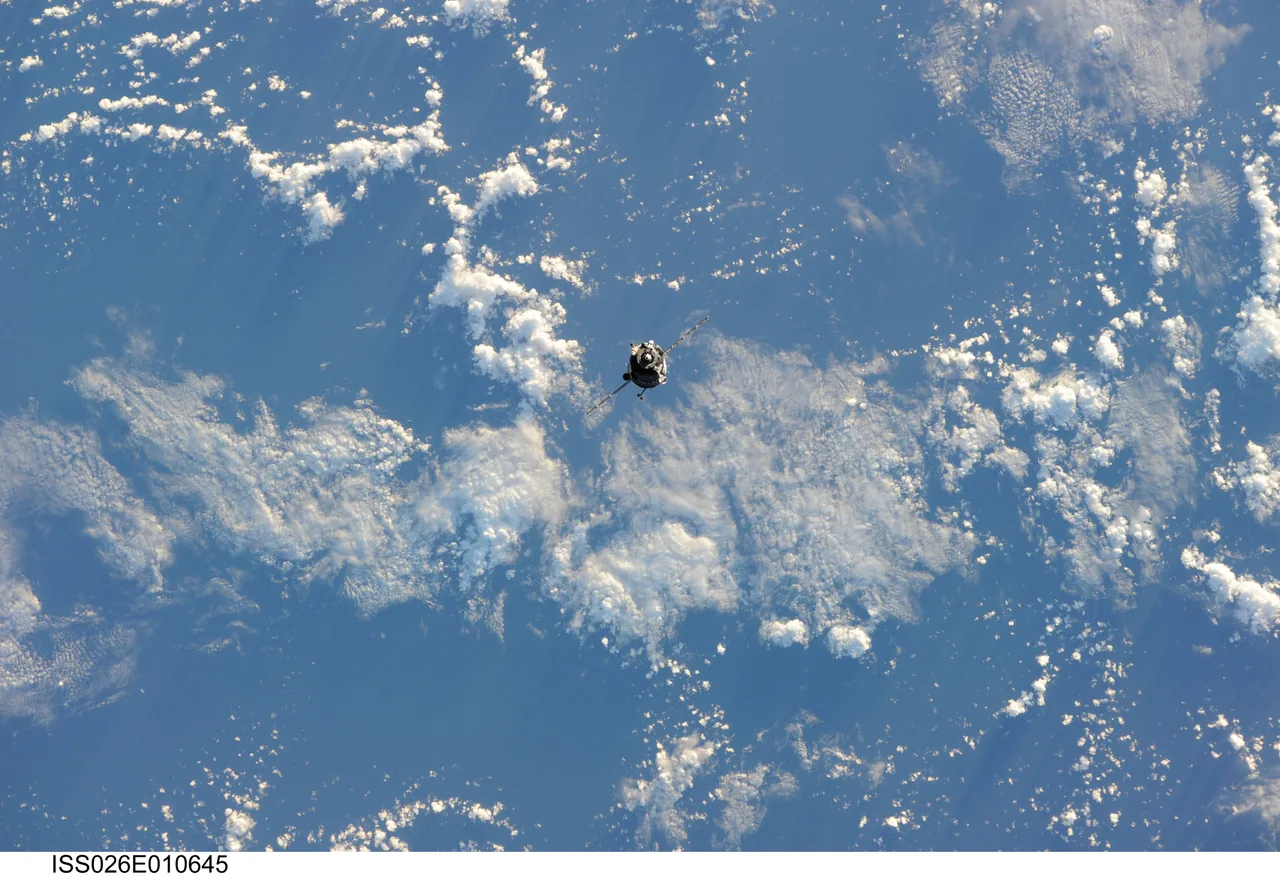

Soyuz TMA-20 approaches the International Space Station in this December 17, 2010 photograph, ISS026-E-010645. The archived color frame retains its catalog-number strip at the bottom. Its station-based viewpoint differs from an Earth-based motion measurement.
Look closely
Which measurements would let you distinguish approaching from receding without relying solely on the published caption?
See what to notice
Compare measured spacecraft-to-station ranges at known times. A single screen position does not establish a closing rate; changing camera pointing, distance, and relative motion can produce different image behavior.
Separate an endpoint change from a journey
answers where the box is at a given time. answers how its position changed: final position minus initial position. Distance traveled adds the lengths of every part of its path. These quantities can disagree without either measurement being wrong. A box carried to a workbench and back has traveled a nonzero distance even when its final displacement is zero.
Writing only “five meters” hides whether you mean a location, a path length, or a separation. Record units and labels beside numbers. Also keep the same origin and axis throughout a calculation. If another observer places the origin somewhere else, the position numbers change, but a fixed shift of origin does not change the displacement between the same two events.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Audit a cargo-transfer log
Use this invented training log for one box in a straight corridor: it begins at x = +2 m, is carried to x = +8 m, and finishes at x = +5 m, with no other detours. Its first path segment is 6 m and its return segment is 3 m. The is therefore 9 m, while displacement is +5 − (+2) = +3 m.
Two reports now disagree. “The box traveled 3 m” confuses displacement with path length. “The box ended 3 m farther along the positive axis than it started” matches the log. If the box instead returned to +2 m, its displacement would be zero but its complete out-and-back distance would be 12 m. Endpoints alone cannot reconstruct every turn along a route.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read a rendezvous photograph carefully
The archived Soyuz photograph shows a spacecraft against clouds and ocean. The published record establishes that it was approaching the station, but a single exposure does not by itself measure its closing speed. An object near the center of the image could be approaching, receding, or momentarily maintaining separation. Camera pointing and depth matter as well as an object’s position within the frame.
To test an approach claim quantitatively, request a sequence of measured ranges with timestamps and a stated reference object. If separation decreases from 120 m to 90 m over 60 s, the average closing speed is 30/60 = 0.5 m/s. That is a relative measurement between spacecraft, not their speed around Earth. Keep that distinction when interpreting every docking image in the archive.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
