Design a larger solid launcher
6 minute lesson · 3 checks along the way
Your goal for this lessonExplain M-V design trades involving structural mass, ground facilities and scientific access.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Read & understand
Treat the launcher and launch site as a system
M-V was the final Mu generation. ISAS’s design goals included medium-size science payloads and continued use of existing facilities at Kagoshima Space Center, now commonly called Uchinoura. A rocket must fit its operating system: assembly equipment, transport routes, launch structures, tracking and range-safety procedures.
Reusing infrastructure can reduce new construction, but it constrains a design. In an original planning example, a larger payload fairing may help fit an instrument while requiring changes to the building that encloses it. A change that appears beneficial when studying the vehicle alone may create extra work elsewhere in the launch system.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Spend mass where it helps
M-V used high-strength steel motor cases on its first two stages and carbon-fiber composite cases on the third and kick stages. A motor case contains pressure; its material and structure must meet the applicable loads. Reducing structural mass can leave more performance available for payload or trajectory requirements, but strength and manufacturing quality still have to be demonstrated.
For an original fixed-allowance exercise, suppose an upper assembly may total 1,000 kg. Propellant, structure and equipment use 850 kg, leaving 150 kg for the payload. Reducing qualified structural mass by 20 kg could raise that allowance to 170 kg if all other constraints remain unchanged. This arithmetic illustrates a trade, not a prediction of M-V performance.

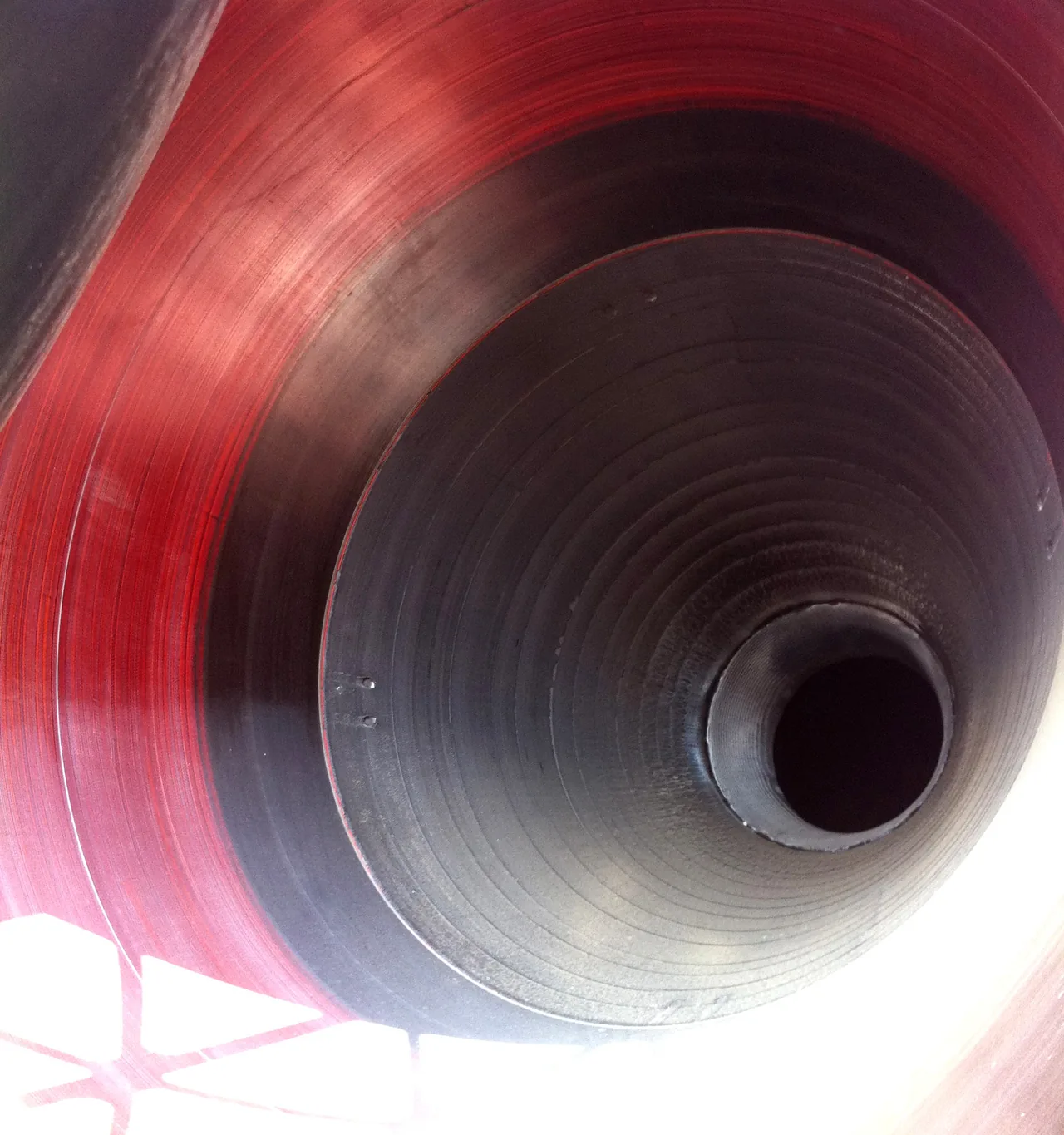

Interior of an M-V second-stage nozzle, photographed by Takchabo. The source describes combustion-test scorching; this is not identified as ASTRO-E’s failed first-stage component. CC BY-SA 3.0. Full source frame retained; display copies resized and compressed only.
Look closely
Can red illumination in this photograph tell us the nozzle’s operating temperature?
See what to notice
No. Visible color depends on lighting and the photograph is not a calibrated thermal measurement. Its second-stage identity also prevents using it as proof of a different stage’s failure.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Read a hardware photograph carefully
The M-V second-stage nozzle close-up provides a view of real hardware. Its curved interior narrows toward the throat; the photograph also contains strong red ambient illumination. Visible shape helps us discuss exhaust flow and material inspection, but a photograph alone does not measure pressure, temperature or thrust.
The source record describes combustion-test scorching. That does not identify this specimen as the failed first-stage component from ASTRO-E’s launch. Stage identity, test history and the investigation evidence must be matched before drawing a causal conclusion. Engineers combine images with measurements and records rather than diagnosing a different event from resemblance alone.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
