Lesson 4 of 6 · super-Earths and sub-Neptunes
Follow the evolution of small planets with envelopes
10 minute lesson · 3 checks along the way
Your goal for this lessonUse planet categories cautiously and trace how a modest gas inventory can affect a much larger observed volume.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
A category name is not a surface report
and describe overlapping regions of planetary size or mass in different research conventions. They do not promise forests on an enlarged Earth or a miniature copy of Neptune’s interior. Studies should specify their actual radius, mass, and orbital cuts. Some planets in this broad range are predominantly rocky; others retain lighter envelopes or substantial volatile material whose physical state depends on pressure and temperature.
Our solar system has no planet between Earth and Neptune in size, but Kepler found many such close-in worlds around other stars. Observations revealed a relative scarcity in part of the small-planet radius distribution, often called the . It is a population feature with dependencies on stellar and orbital properties, not an absolute forbidden radius. Better measurements and completeness estimates matter when interpreting its shape.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
A little gas can occupy a lot of space
Hydrogen and helium can form a low-density whose volume is large compared with its fraction of planetary mass. Temperature, gravity, composition, and cooling history affect how extended that envelope becomes. A planet can therefore change noticeably in radius without losing the same percentage of total mass. during cooling is another way to change radius, even when no material escapes across the outer boundary.
Consider a fictional planet with a 4.9-Earth-mass and a 0.1-Earth-mass envelope. The envelope initially represents 0.1 divided by 5, or two percent of total mass. Remove 0.05 Earth masses of envelope while leaving the core unchanged. The remaining fraction is 0.05 divided by 4.95, about 1.01 percent. Half the envelope was lost, but only one percent of the original total mass left.
Half an envelope is not half a planet
Original mass-budget schematic of the lesson’s invented planet. Boxes show inventories, not the geometric volumes or physical sizes of layers. The denominator after escape is the remaining total mass; this budget alone does not determine a new planetary radius.
Open full-size diagram in a new tab: Half an envelope is not half a planetCompare mechanisms without confusing their energy source
Stellar high-energy radiation can heat upper atmospheric gas and help drive escape. Energy released as a planet cools can also support atmospheric loss under suitable conditions. These mechanisms have different dependencies on age, irradiation, and planetary properties. They are thermal and dynamical processes, not a claim that visible light simply shoves off a fixed fraction of every atmosphere. Replenishment and chemistry can complicate the history further.
Population analyses test which combinations of processes reproduce measured radii and their variation with orbital period and host-star properties. A 2022 California-Kepler Survey analysis found a radius-gap slope compatible with predictions from more than one mass-loss mechanism. Compatibility did not uniquely select one. Observations of younger systems, escaping gases, and mature populations provide complementary tests, with different limitations rather than one universal atmospheric clock.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Use the same definitions when comparing populations
The Transiting Exoplanet Survey Satellite helps identify nearby and bright host systems that are suitable for follow-up. A particularly measurable atmosphere does not necessarily represent the most common kind of planet. Large atmospheric signals favor some radii, temperatures, and stellar sizes. Connecting a detailed spectrum to a population claim requires accounting for that selection as well as the selection that produced the original detection catalog.
Return to the fictional envelope budget: it provides a , not a new radius or a guaranteed exposed core. Determining either requires an interior-atmosphere model and more physical inputs. When a headline calls a planet an Earth cousin, replace the analogy with measured quantities and stated assumptions. Categories organize comparisons; the evidence comes from how mass, radius, radiation, age, and atmospheric observations fit together.

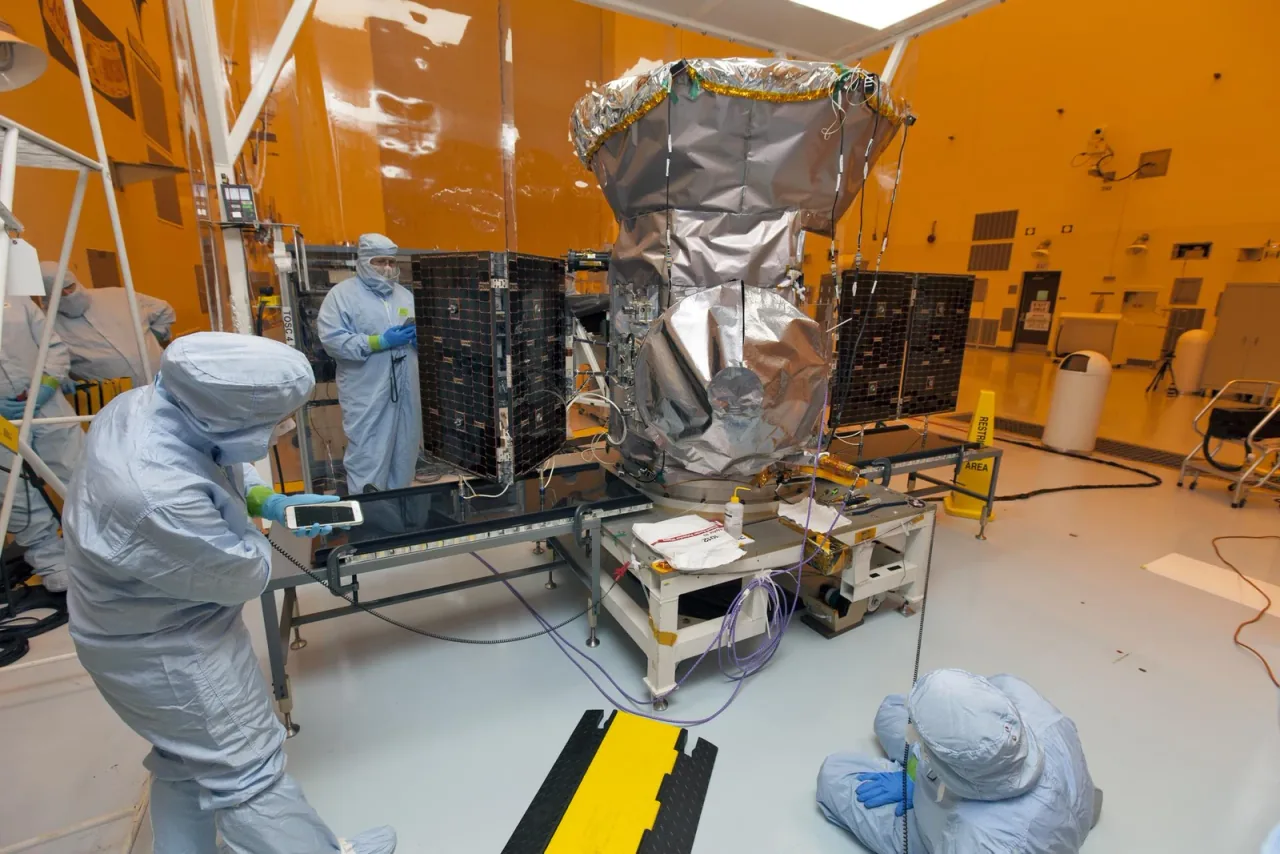

Technicians test solar-panel deployment on the Transiting Exoplanet Survey Satellite at Kennedy Space Center on February 21, 2018. This ground photograph documents the spacecraft and its preparation. Its later stellar brightness measurements require separate planetary and stellar models to infer envelope properties.
Look closely
Locate the deployed panels. How does their role differ from the measurements needed to decide whether a planet has lost half its envelope?
See what to notice
The panels supply electrical energy for spacecraft operation. Inferring envelope loss requires planet mass, radius, thermal and atmospheric modeling, and evolutionary evidence; neither the hardware photograph nor a category label measures the lost gas inventory.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
