Your goal for this lessonChoose and compare solar observations using wavelength, timing, calibration, and the distinction between remote and local measurements.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
One star, several kinds of evidence
A telescope does not simply deliver the Sun as an unfiltered truth. Its optics, wavelength sensitivity, detector, exposure, and processing determine what a measurement records. A visible-light image may show photospheric spots; an extreme-ultraviolet image can emphasize hot atmospheric structures. A difference between those images need not mean the Sun changed between exposures. The instruments may be responding to different material at the same time.
A spectrometer separates incoming light by wavelength. Spectral features can help infer composition, temperature, and motion when interpreted through physical models. A uses the light’s response to magnetic fields to estimate field properties; its contrasting colors or shades are a map convention. They do not mean one magnetic polarity is literally blue and the other red on the Sun.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Match the tool to the question
You need to investigate three questions: where spots lie on the visible disk, how a coronal loop changes, and what particles pass a spacecraft. Choose a photospheric image for the first, a suitably calibrated atmospheric image sequence for the second, and an particle detector for the third. A sharper picture is not automatically the answer when the quantity you need is particle energy or magnetic field.
Solar Orbiter combines remote sensing, which measures radiation arriving from distant regions, with in situ instruments sampling conditions around the spacecraft. Connecting the datasets needs geometry and timing: material photographed near the Sun takes time to travel outward and may follow a changing path. Two instruments aboard one spacecraft are complementary, but they do not necessarily observe the same parcel at the same instant.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Keep the caption attached to the data
To compare two archive images, record their observation times, wavelengths, viewpoint, scale, exposure, and processing. Align corresponding regions before measuring a change. An enhanced-contrast image may reveal a faint feature without representing a brighter physical source; a longer exposure may record more counts from an unchanged scene. Calibration connects detector readings to physical quantities and tracks changes in instrument sensitivity over time.
Solar Dynamics Observatory illustrates the value of a coordinated instrument set: its atmospheric imagery, surface-motion and magnetic measurements, and ultraviolet measurements answer related questions. Irradiance measures received radiant power per area, not the location of each emitting feature. Combining a spatial image with a total-output measurement is stronger than pretending either one supplies all the information the other contains.
Investigate an instrument’s first light
A blocks the bright solar disk to make faint surrounding material easier to study. The archived PUNCH first-light image includes a marker for the hidden Sun, constellation annotations, and bright glints caused by incomplete instrument alignment. The source processing highlights background stars. A useful inspection separates those labels and instrumental effects from the celestial scene instead of naming every bright arc a solar eruption.
For your final comparison, list one claim the image supports and one it cannot support. It can demonstrate that an instrument records stars and reveal alignment work still required; it cannot by itself forecast a storm at Earth or show a complete temperature map. Use the recorded images and linked observatory explanations for this lesson. Direct solar viewing or experimenting with improvised filters is unnecessary and can damage eyesight.

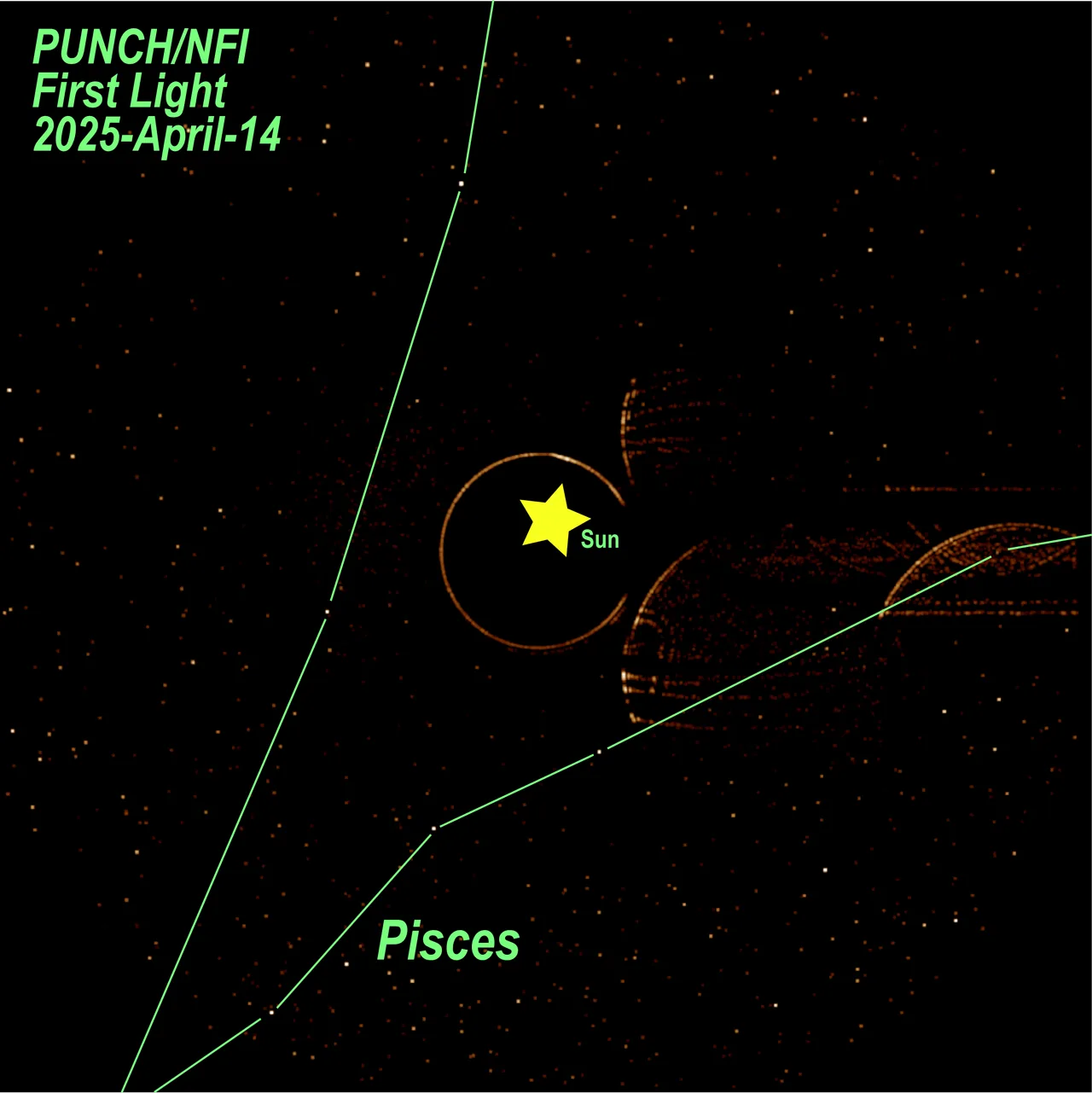

PUNCH Narrow Field Imager first light, April 14, 2025. Source filtering highlights stars against the much brighter dust-scattered F corona. The Sun marker and constellation lines are annotations; bright glints to the right result from incomplete instrument alignment. The preserved image includes these processing and alignment effects.
Look closely
Identify an annotation, a background star, and one bright glint. Which of those should be counted as a confirmed solar eruption?
See what to notice
None is a confirmed eruption. The marker and green lines explain positions, stars belong to the background sky, and the source identifies the bright glints as an alignment effect. First-light evidence is still useful for checking focus and preparing a calibrated instrument.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
