Resurs-P: distinguish image detail from spectral information

Resurs-P is a Russian Earth-observation satellite family associated with Roscosmos. It belongs within a broader Resurs history that also includes different spacecraft generations, such as Resurs-DK. A shared name does not imply identical instruments. WMO’s program register associates Resurs-P with several imaging instruments and identifies the ground organization that acquires, processes and distributes the data. This lesson focuses on Resurs-P rather than treating every historical Resurs design as one unchanged satellite.

The Geoton-L1 instrument records panchromatic — open definition and multispectral imagery. Panchromatic measurements combine light across a relatively broad wavelength interval, while multispectral measurements retain separate bands. WMO lists finer ground sampling for the panchromatic product than for its individual multispectral bands. Those are different kinds of information: a sharper-looking picture does not automatically contain more independent measurements of spectral differences.

Consider an original mapping exercise with a sixteen-meter-wide square. One-meter square sampling gives sixteen positions across each side, or 256 samples across the area. Four-meter square sampling gives four positions per side, or sixteen samples. The finer grid therefore has sixteen times as many spatial samples over this area. The calculation squares the linear ratio because the image covers two dimensions. It does not establish which real objects can be identified reliably.

Resampling the coarse grid onto a one-meter display can make it align with another product, but it does not create 256 independent color measurements from sixteen originals. A fused image can combine fine spatial structure with coarser spectral measurements using a model. For quantitative work, retain the original bands and document the processing. Sampling distance, optical performance, contrast and noise all influence what can be inferred from a feature.

Sampling changes in two dimensions

Imagine a riverbank mapped in two seasons. A visible difference could reflect water level, vegetation, illumination or geometric misalignment, as well as permanent land change. Before measuring an apparent shift, check acquisition times, coordinate alignment, cloud cover and the wavelengths represented. A smaller pixel size cannot compensate for comparing different locations or interpreting a seasonal shadow as a new channel.

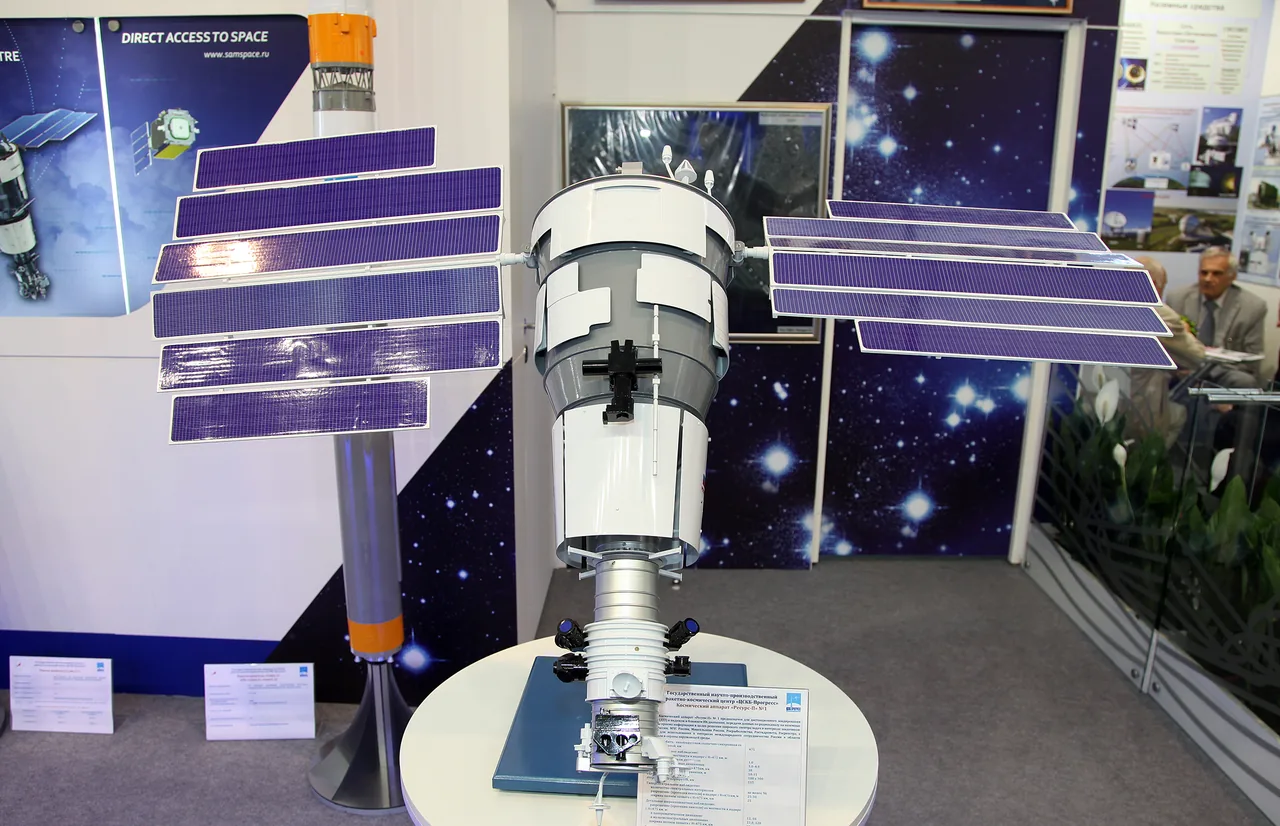

The photograph shows a Resurs-P No. 1 exhibition model with its spacecraft body and solar arrays. It illustrates the design, not an orbital observation or the present condition of a flight vehicle. The useful chain runs from instrument measurement through calibration and mapping to a stated question. A good Resurs-P comparison explains which product was used, what processing changed it and what independent evidence would support the proposed land-cover interpretation.
