Infer soil moisture with context

The SAOCOM manual describes horizontal and vertical transmit-and-receive combinations. HH means horizontal transmission and horizontal reception; HV combines horizontal transmission with vertical reception. Using several polarization channels records complementary responses. It does not give four independent soil samples at every location or make every operating mode available on demand.

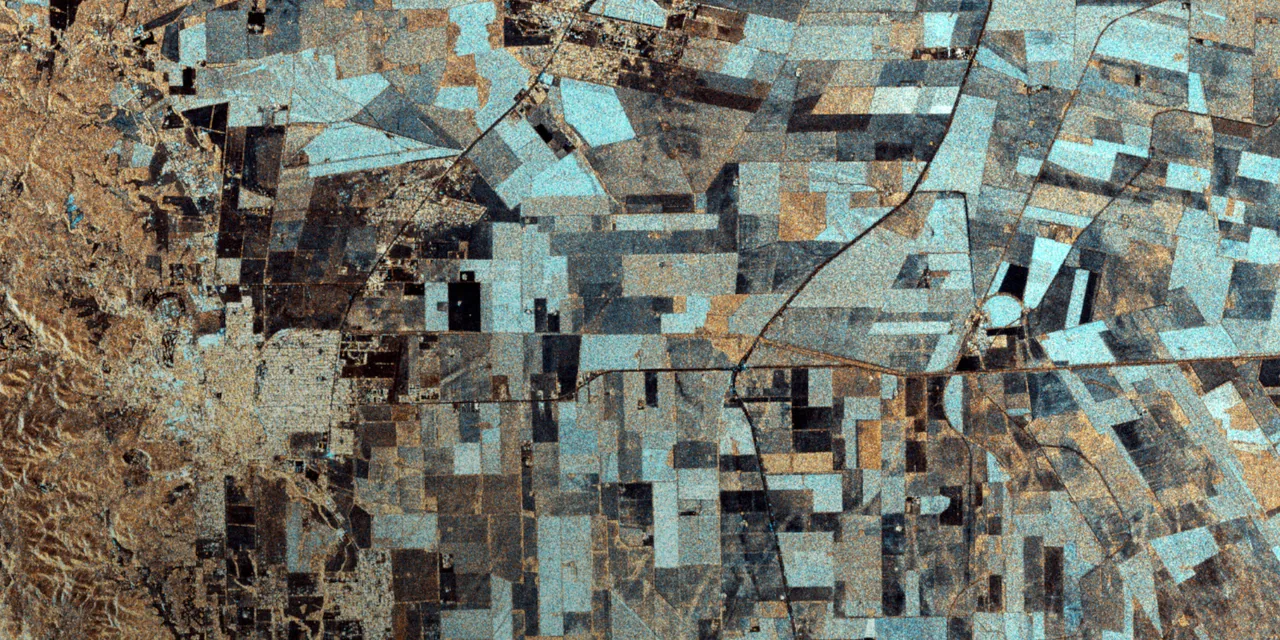

A soil-moisture estimate is a derived product. A retrieval relates measured radar information to water content while accounting for other influences, such as vegetation, surface roughness and geometry. A dark patch in the Córdoba radar scene is therefore not a numeric moisture reading. Its displayed colours require the product’s channel mapping and processing description before they can be interpreted quantitatively.

Volumetric water content compares water volume with total bulk soil volume. In a fictional sample, two litres of water occupy part of ten litres of bulk soil. The fraction is 2 ÷ 10 = 0.20, or twenty percent. It is not two litres divided by only the remaining solid material. A product using a different definition must be converted appropriately before comparison.

Suppose the fraction changes from 0.20 to 0.25 in an original example. The increase is 0.05, or five percentage points. Relative to the starting value, it is 0.05 ÷ 0.20 = twenty-five percent. Those statements describe the same change with different denominators. Reporting only a five-percent increase would obscure which calculation was intended.

The same water change, two denominators

Imagine a radar estimate for a field-sized footprint at noon and a ground probe at one spot the following morning after rain. Their difference combines spatial variation, elapsed time and possibly depth differences with retrieval error. Calling the entire difference an instrument failure would skip the matching problem. Record the acquisition time, sampled depth, footprint and recent conditions first.

In a deliberately matched teaching set, satellite-minus-reference differences are +0.02, −0.01 and +0.02 in volumetric fraction. Their mean is +0.01. That small mean could conceal larger individual errors or variation under other vegetation conditions. Inspect individual differences and sample coverage, and retain quality flags and processing versions rather than using a single average as universal proof.
