What sensors measure
9 minute lesson · 3 checks along the way
Your goal for this lessonSeparate an instrument’s recorded signal from the physical quantity inferred from it.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Begin with a signal, not a conclusion
A satellite does not receive a message saying “this forest is healthy” or “this glacier is shrinking.” Its instrument records a physical signal. An optical detector responds to radiation reaching the telescope within selected wavelength bands. Electronics convert that response into numbers. connects those numbers to a defined quantity, with units and . A map of vegetation, temperature, or elevation is a further interpretation of measurements.
Passive sensors collect radiation supplied elsewhere: sunlight reflected by Earth or thermal radiation emitted by the surface and atmosphere. Active sensors supply their own illumination, such as radar pulses or laser light, and measure the return. Active does not mean universally better. Different wavelengths interact differently with vegetation, water, ice, clouds, and rough surfaces, so the useful instrument depends on the question being asked.
Follow one measurement chain
ICESat-2 uses the ATLAS laser instrument to time returning photons. The timing provides a between spacecraft and reflecting material. Combining that range with spacecraft position, pointing, and a reference surface allows an estimate. A shorter travel time alone does not establish melting or growth: the satellite might be elsewhere, or the return might come from a different surface within the scene.
An optical image follows another chain. Radiation recorded above the atmosphere contains effects of the surface, illumination, absorption, and scattering along the path. A surface-reflectance product estimates the surface contribution under a model of those effects. A thermal measurement also depends on atmospheric transmission and the surface’s emission properties. Neither a bright detector value nor a bright displayed uniquely specifies temperature, height, or material.

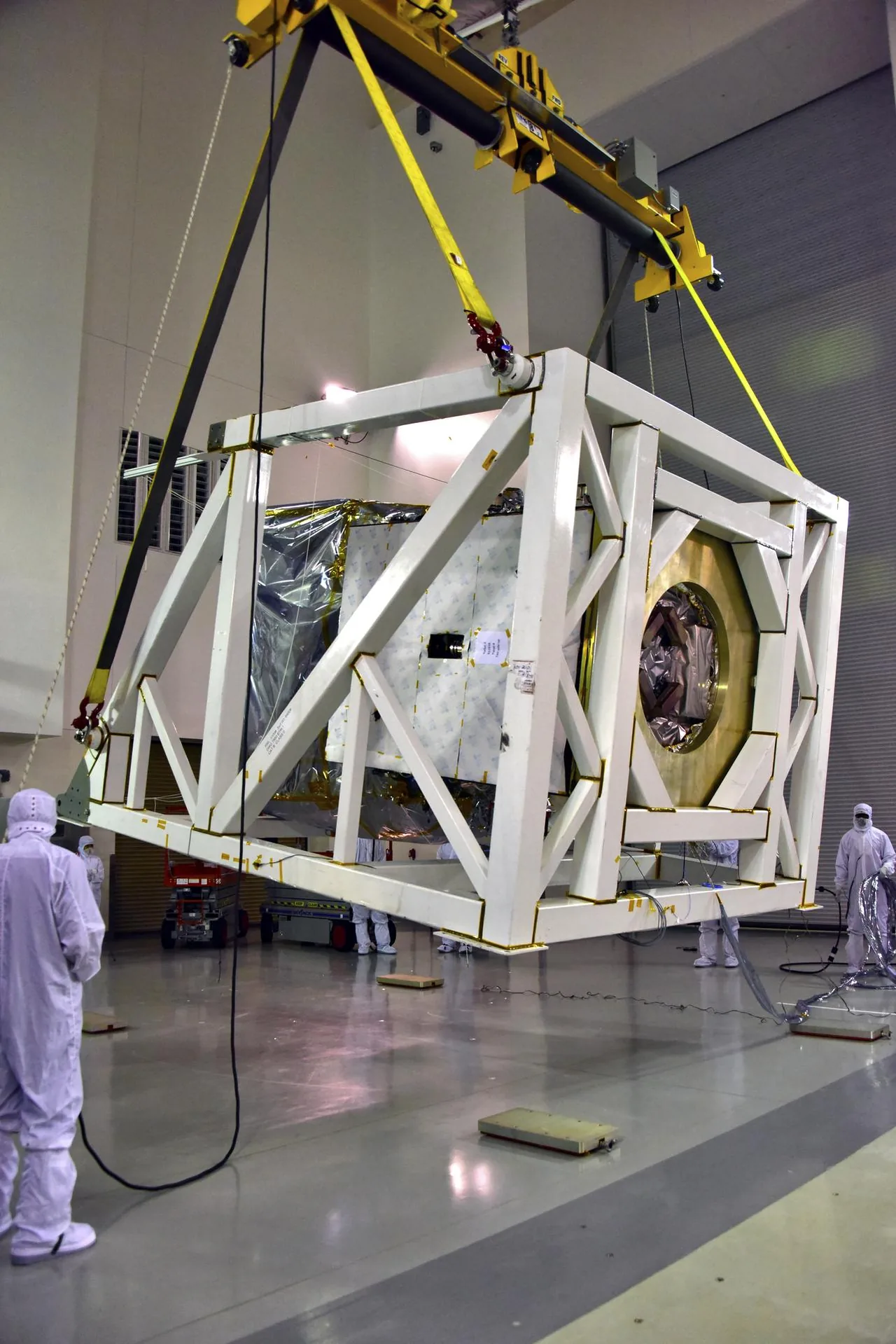

ICESat-2 is lifted in its fixture at the Astrotech facility at Vandenberg on June 14, 2018, during launch preparation. Its ATLAS instrument later used laser-pulse timing to measure ranges toward Earth.
Look closely
Which part of this photograph documents the physical observing system, and what information is still missing for an elevation measurement?
See what to notice
The photograph documents the spacecraft and its handling fixture. An elevation retrieval still needs calibrated return timing, spacecraft position and pointing, an identified target, and a reference surface; the hardware’s appearance supplies none of those numerical observations.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Time an invented return
Consider a hypothetical laser rangefinder with a corrected round-trip time of 4.00 milliseconds. Assume a straight path and light speed of 300,000 kilometers per second, ignoring atmospheric slowing and motion during travel. Convert the interval to 0.004 seconds. Light travels 1,200 kilometers in that interval, but this includes the outward and return journeys. The one-way range is therefore 600 kilometers.
Another corrected return takes 3.98 milliseconds, giving 597 kilometers. The ranges differ by 3 kilometers. Only if the instrument position and direction are unchanged and both returns identify comparable targets does that difference translate into the corresponding target displacement along the beam. These invented times are not ICESat-2 observations. The calculation demonstrates the measurement geometry without replacing the real mission’s calibration and orbit determination.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Ask what could imitate the result
Real photon records include background light and returns from clouds or vegetation above the ground. Analysts use patterns across many photons to distinguish likely surfaces; they do not accept every detected photon as bare-ground elevation. Radar returns likewise depend on viewing direction and scattering structure. An instrument can measure its signal accurately while an unsuitable interpretation still produces a misleading map.
A useful observation record therefore names the sensor, time, wavelength or timing method, processing level, units, and relevant quality flags. Independent measurements test the interpretation at a matching location and scale. Before accepting a satellite claim, complete the sentence: “The instrument measured this signal, and these assumptions connect it to that conclusion.” Keeping those steps visible makes the evidence more useful, not less impressive.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
