X-SAT: turn measurements into an image

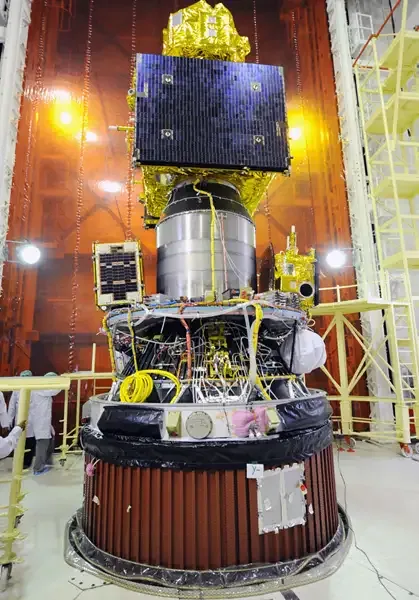

X-Sat launched on April 20, 2011 aboard India’s PSLV-C16 with Resourcesat-2 and Youthsat. NTU’s X-SAT project combined satellite-engineering development with Earth observation, supported by partners including the National University of Singapore’s remote-sensing centre. It followed earlier Singapore-linked communications spacecraft and payloads, so an unqualified claim that it was the country’s first satellite would hide that history.

The project joined several kinds of work: constructing a spacecraft platform, operating ground systems and processing observations. An image does not arrive simply because a camera reaches orbit. The mission must point the instrument, collect and preserve measurements, transmit them during contact and connect each sample with calibration — open definition and location information. These steps explain why a satellite course needs both hardware and data interpretation.

NTU publishes a Singapore image acquired on May 11, 2011 using red, green and near-infrared channels. In the displayed false-color view, vegetation appears red. That does not mean the trees were physically red to a person standing below. Display channels assign measured bands to visible colors so differences that are useful to an analyst become easier to distinguish.

The instrument record gives 12-metre ground sampling. In a simplified square grid, one sample spans twelve metres along each side and represents 144 square metres. This is a teaching approximation, not a promise that every twelve-metre object is recognizable. Contrast, blur, mixed surfaces and viewing conditions affect what a sample means. A small building and its surroundings may contribute to the same recorded value.

From measured light to a map

The university’s example identifies bright clouds and dark cloud shadows. A dark patch could therefore have a different cause from dark water or a burned surface. Analysts use neighboring features, other spectral bands, geometry and comparison dates to investigate an interpretation. A colorful image is evidence of measured light, while a land-cover label is an inference that needs suitable checking.

Consider a fictional map that labels ten dark patches as water. If field observations show that two are cloud shadows, the display alone was insufficient. The correction improves the map and suggests a better classification rule. X-SAT provides a practical bridge from spacecraft engineering to environmental knowledge: reliable decisions require both a working instrument and a disciplined explanation of how its measurements support the claimed feature.
