Raduga: hold a direction in the sky

The Raduga communications family began with a launch on December 22, 1975. Manufacturer and ITU records connect the original system to telephone and television transmission and the Orbita ground network. Its geostationary orbit — open definition offered a different operating arrangement from the strongly elliptical Molniya paths: a ground antenna could point toward approximately the same direction throughout the day.

This did not mean the spacecraft was parked without moving. In an ideal geostationary orbit, a satellite circles Earth over the equator in the same direction and at the same angular rate as Earth’s rotation. From a fixed ground site, those motions match. Operators still maintain the orbit and spacecraft attitude; a useful signal depends on the antenna beam reaching the intended receivers.

A stable direction can simplify a fixed ground installation, but geography remains important. At high latitudes an equatorial geostationary satellite appears low in the sky, and some locations cannot see it at all. Mountains, buildings and the curvature of Earth impose limits. Geostationary service and northern elliptical-orbit service therefore answer different combinations of requirements.

For a simplified teaching estimate, suppose a signal travels 36,000 kilometres up and 36,000 kilometres down. At 300,000 kilometres per second, that 72,000-kilometre path takes about 0.24 seconds one way. A reply over the same path needs about 0.48 seconds of propagation for the round trip, before processing. Real paths are often longer; these rounded distances are not measured Raduga performance.

Count the radio journey

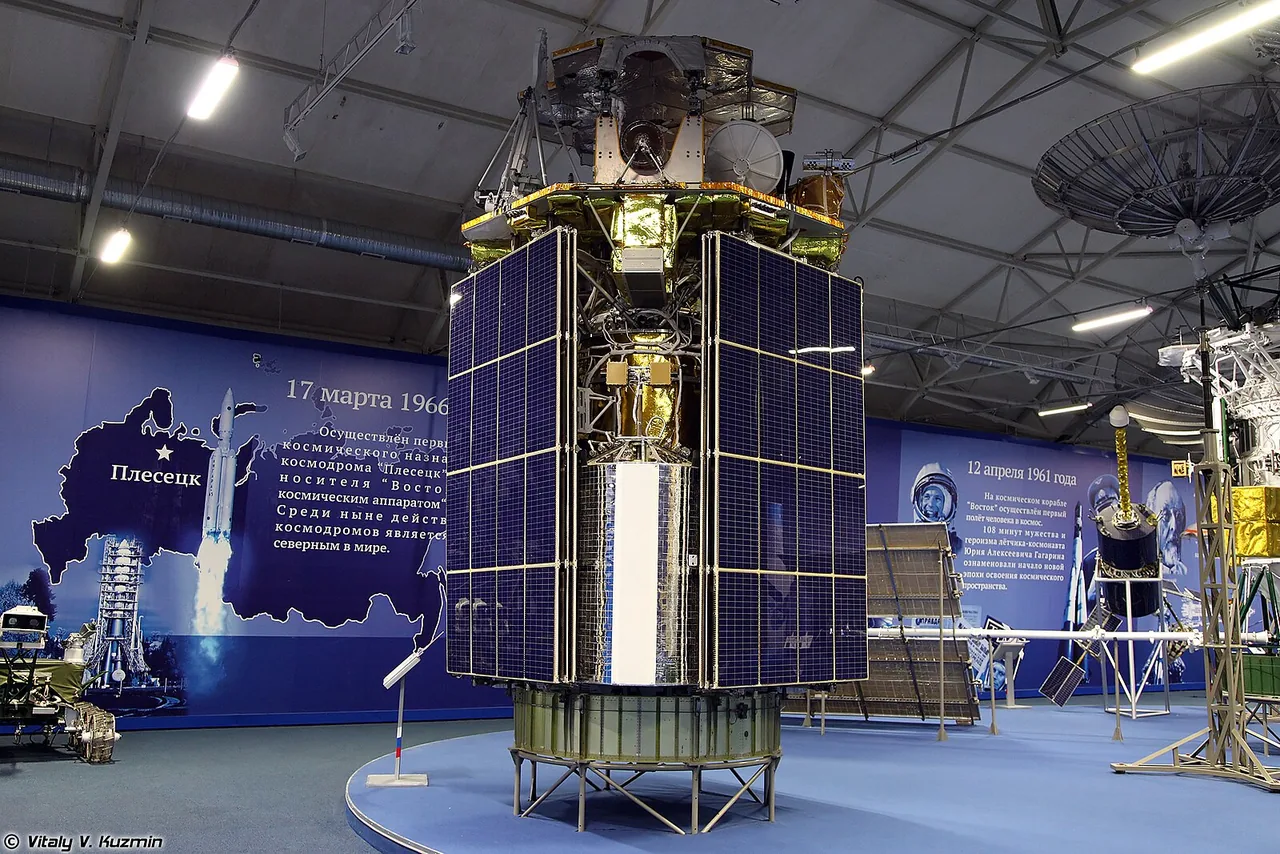

Later Raduga-1 and Raduga-1M names represent developments in the lineage. The photograph documents an identified Raduga-1M display at Patriot Park, not the original 1975 spacecraft. Its visible panels and antennas illustrate the physical functions of power collection and radio communication. They do not establish undisclosed payload specifications or the operating status of a particular satellite.

The archive example Raduga-1M — S32373 records a 2007 launch. That flight card and the museum image answer different questions: one identifies a mission, while the other shows a displayed design. Neither should be silently used to claim that the displayed article flew on that mission. Keeping those distinctions preserves useful history while avoiding a misleading appearance of precision.
