FORMOSAT-5: developing an imager and using its measurements

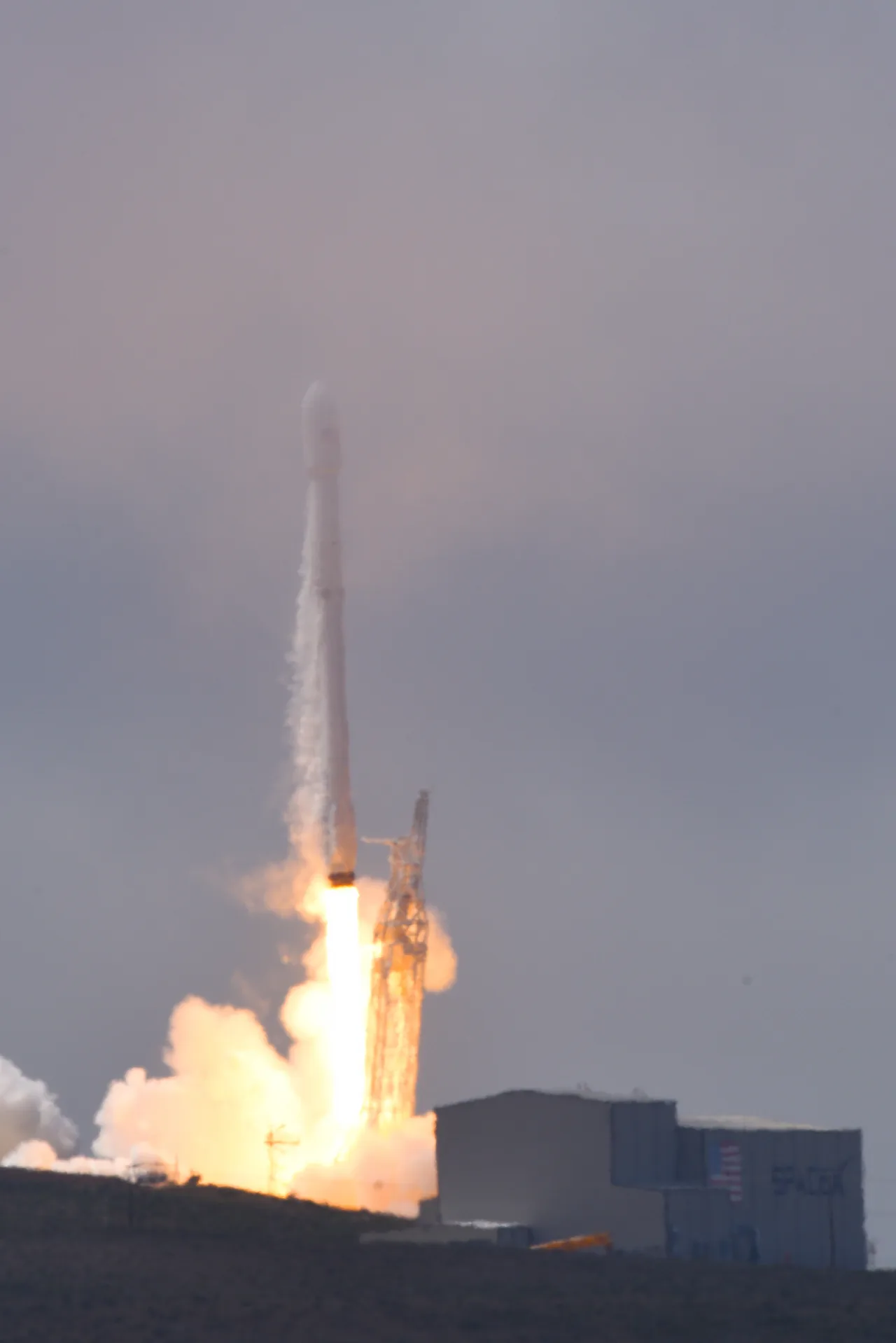

FORMOSAT-5, listed as FORMOSAT 5 in the archive, launched from California on a Falcon 9 in August 2017. It followed FORMOSAT-2’s land-imaging work while developing Taiwan’s own satellite and optical-imaging capabilities. The government’s contemporary account describes industrial, university and research teams working on the spacecraft, instruments, integration, mission control and image processing. The launch photograph shows the carrier rocket; the enclosed satellite is not visible.

The project illustrates why an observing capability is larger than a camera. A spacecraft must supply power, point the instrument, store its measurements and send them to the ground. Teams must also turn the received data into usable products. An attractive first picture would not by itself verify every subsystem, every operating mode or the quality of an entire future image archive.

The mission’s optical products were designed with two-meter panchromatic — open definition and four-meter multispectral — open definition sampling. Panchromatic imagery combines a broader band of light into brightness information; multispectral imagery keeps separate spectral bands. The finer spatial sample is useful for detail, while separate bands help distinguish different surface responses. Neither description means that every object of that width can always be identified confidently.

For a fictional square image covering 40 meters by 40 meters, two-meter sampling gives 20 samples along each side, or 400 samples in the square. Four-meter sampling gives 10 along each side, or 100. Halving the linear sample size quadruples the sample count over the same area. This exercise ignores edge effects and is about grid geometry, not a promise of perfect detail in real observations.

Pixel spacing changes the grid

FORMOSAT-5 also carried the Advanced Ionospheric Probe, a science instrument for the charged-particle environment. It was separate from the optical imager. The 2017 account included research into possible earthquake-related ionospheric changes. A research objective is not a demonstrated, reliable earthquake-warning service; a proposed relationship must be tested against other causes, false alarms and observations that do not fit the hypothesis.

TASA’s 2023 annual report describes using FORMOSAT-5 imagery during the Angel cargo-ship oil-spill response near Kaohsiung. That is a dated application of Earth imaging, not an ionospheric prediction result. In any application, clouds, viewing angle, illumination and processing affect interpretation. The lesson is to connect each useful claim to the correct instrument and evidence, while recognizing the engineering and institutional work that made the observations available.
