Lesson 6 of 6 · Complementary measurements & model tests
Build a case from incomplete evidence
9 minute lesson · 3 checks along the way
Your goal for this lessonChoose observations that distinguish competing giant-planet models and state the uncertainty that remains after a successful prediction.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Begin with the coverage you actually have
The giant planets do not come with equally complete datasets. Voyager 2 visited all four, but its Uranus and Neptune encounters were flybys rather than years spent orbiting those planets. Jupiter and Saturn have also been studied by orbiters. Telescopes extend the record across decades, yet their spatial resolution and wavelength coverage differ from those of a nearby spacecraft. These differences affect the questions each dataset can answer.
Write an evidence inventory before selecting an interior picture. Include what was measured, where, when, and how its uncertainty was estimated. A gravity measurement constrains mass distribution; magnetic measurements constrain conducting flows through a model; spectra constrain atmospheric properties at the depths they sample. Listing three instrument names is not enough if they all leave the same important region or physical variable unconstrained.

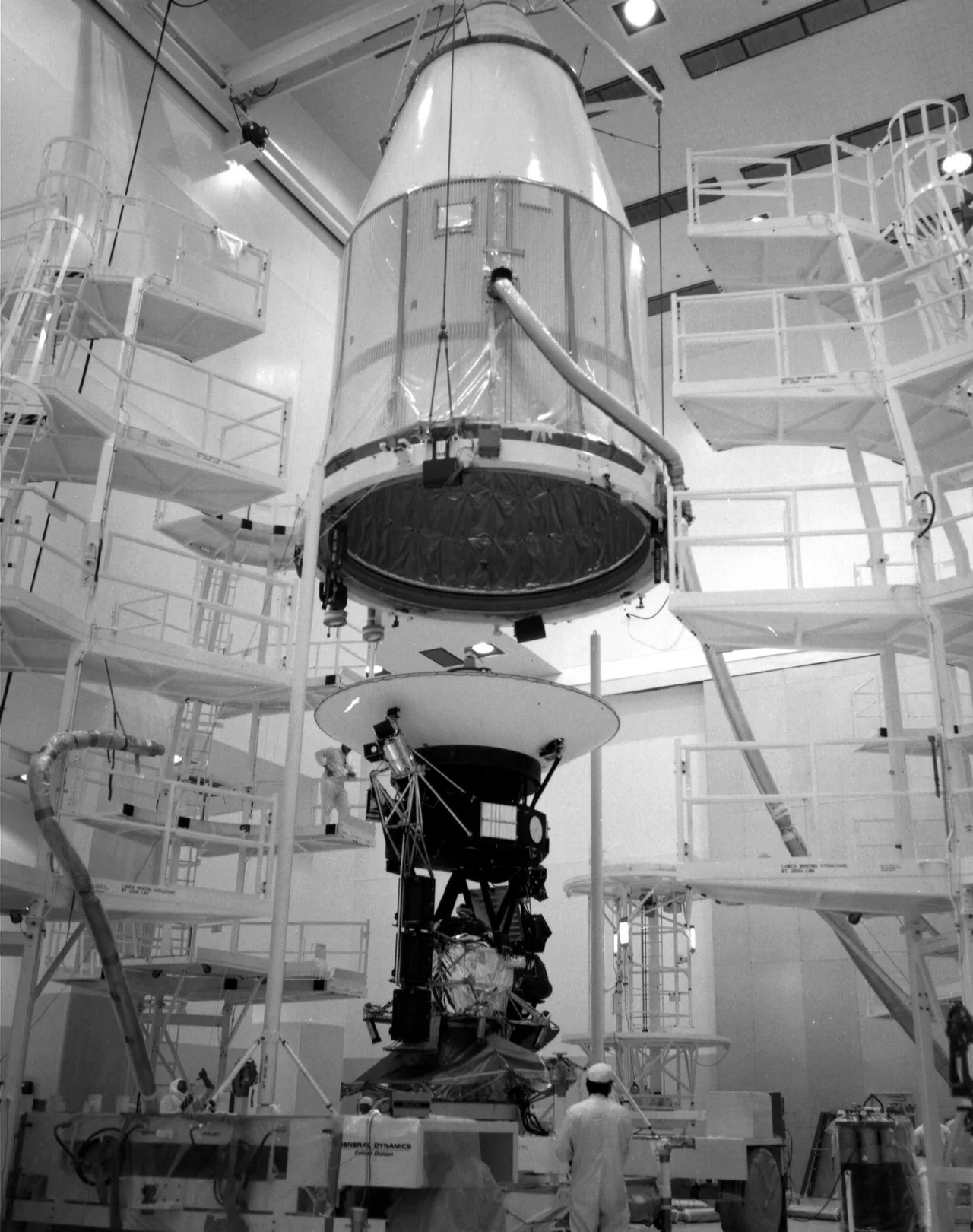

Voyager 2 during encapsulation preparations at Kennedy Space Center in August 1977. The photograph shows the flight hardware and protective shroud. Its encounters supplied measurements of four giant planets; this ground photograph does not itself contain planetary gravity or atmospheric data.
Look closely
Which part of an evidence inventory does this photograph supply, and what must come from the encounter records?
See what to notice
It documents the spacecraft and its preparation. Measurement values, observing geometry, timing, instrument response, and uncertainty must come from the science and engineering records, not the visible size of the antenna or instrument platform.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Predict a difference before choosing the instrument
Suppose two invented interior models both reproduce a planet’s mass and radius. Model A concentrates heavier material toward the center; Model B spreads more of it outward. A photograph of the cloud tops may not distinguish them. Precise gravity measurements, interpreted with rotation and atmospheric motion, could be more informative because different mass distributions change the planet’s external gravitational field. Not every difference produces a signal large enough to detect.
Likewise, two models can match brightness in one wavelength band while predicting different spectra elsewhere. Measuring a band where their predictions separate is more useful than collecting another near-identical display image. This does not make images unscientific: calibrated images at suitable times and wavelengths can be decisive. The essential step is to connect a proposed measurement to the specific prediction that the models disagree about.
Work through a decision
Use a deliberately simple model test
In a fictional comparison, models A and B predict instrument readings of 10 and 16 units. A measurement reports 11 with a one-standard-deviation random uncertainty of 2 units. The discrepancy is 0.5 for A and 2.5 for B. Under an unbiased Gaussian measurement model with exact predictions, A fits this one reading better. These quantities are invented and do not summarize an actual giant-planet experiment.
That ranking is not a proof that A uniquely describes the interior. A third model might fit equally well; uncertain , , or uncertain predictions could change the comparison. Repeat measurements and seek a different observable. For example, combine gravity with thermal emission or magnetic constraints where the models also make testable predictions. Agreement across independent evidence is harder to obtain accidentally than agreement with one adjustable number.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Write a conclusion with useful boundaries
A strong conclusion might say that particular Juno gravity data favor a family of models under stated material assumptions. It would not say that Juno photographed a fuzzy core or established one unique radial composition profile. Similarly, a sequence showing a storm’s disappearance constrains that feature’s visible lifetime without measuring every deep atmospheric flow. Precise language preserves what was learned instead of weakening it.
Finish by choosing a next observation and explaining why it matters. More measurements at different latitudes could test whether a local atmospheric sample was representative. Repeated seasonal observations could improve an . A better laboratory could separate interior models that currently overlap. The giant planets are useful scientific comparisons precisely because their shared physics, different histories, and uneven evidence let us ask increasingly discriminating questions.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
