Lesson 2 of 5 · Spacecraft and return
A sphere and a return plan
7 minute lesson · 3 checks along the way
Your goal for this lessonConnect Vostok’s descent module, braking and separate parachute landing.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Read & understand
Different jobs for different hardware
Vostok’s spherical descent module enclosed its occupant and carried protection for atmospheric entry. An attached equipment section supported flight outside the atmosphere. The capsule’s shape is a useful starting point, but its survival also depended on materials, orientation, separation and a planned return sequence.
Do not confuse the spacecraft with its launch vehicle. The launcher supplied the energy needed for orbit. The spacecraft then had to support its passenger and arrange a return; a successful launch did not eliminate those later requirements.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Slowing down changes the orbit
A braking maneuver reduces orbital energy so the trajectory encounters denser atmosphere. Aerodynamic forces then remove much of the remaining energy, producing severe heating around the vehicle. A parachute is useful only after the vehicle has reached conditions where it can deploy and operate.
This sequence explains why a large parachute cannot replace a heat shield. The devices address different portions of the return. Likewise, a robust shell cannot substitute for a correctly executed braking and separation sequence.

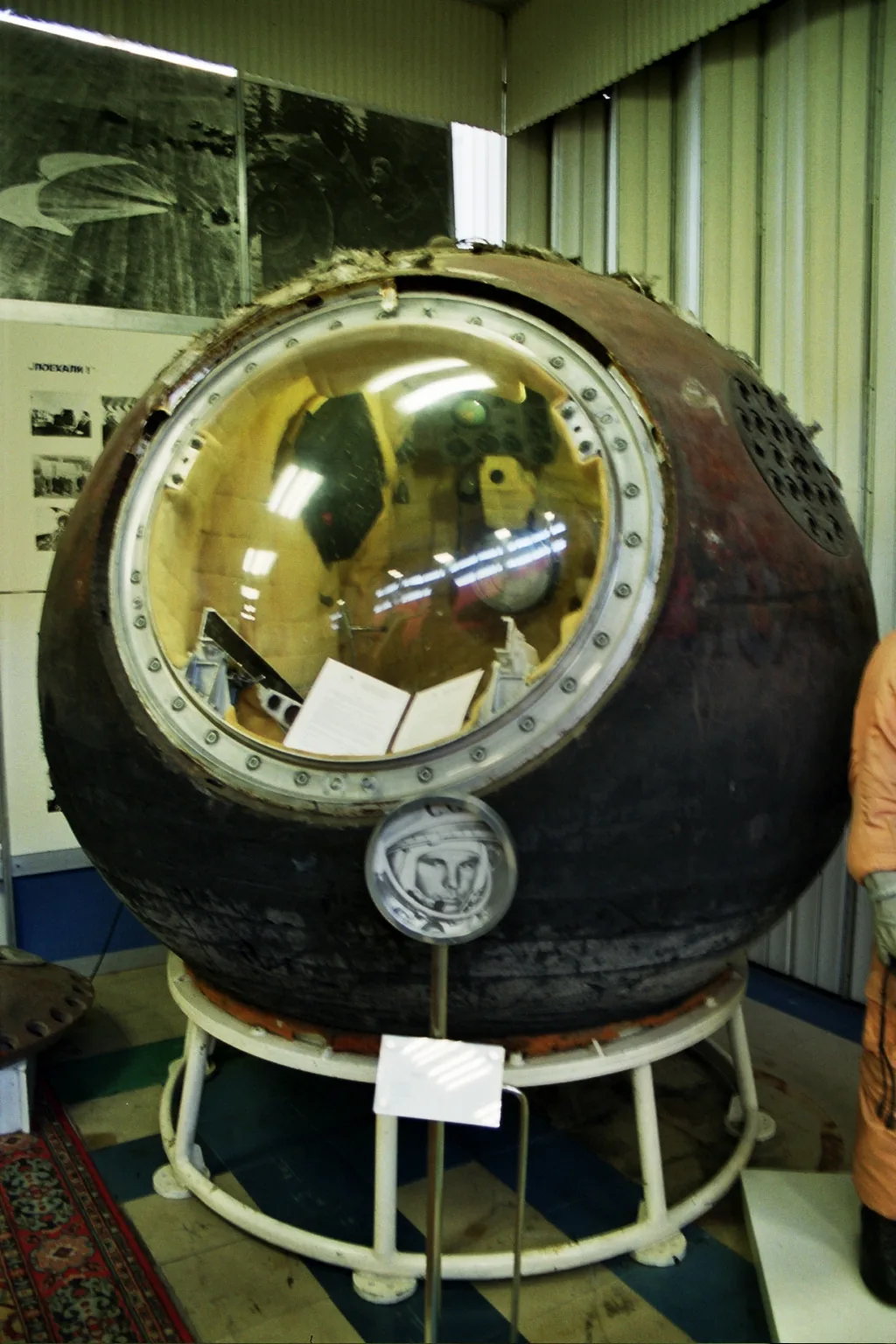

The recovered Vostok 1 descent module on museum display. The sphere is an artifact of the return system; Gagarin landed separately by parachute. The display image is resized and compressed.
Look closely
What can this artifact show about return design?
See what to notice
Its compact spherical form and hatch are visible. Flight records, rather than the display alone, establish the braking, ejection and recovery sequence.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
The person and capsule land separately
Yuri Gagarin did not touch down inside Vostok 1. After atmospheric entry he ejected and descended under his own parachute. The recovered capsule is therefore evidence of one part of the return, not evidence that the occupant rode it all the way to the ground.
In a fictional recovery plan, two objects with separate parachutes can drift to different places. Planning must account for finding the person as well as the hardware. This is why the landing method belongs in the program’s main story rather than in a small technical footnote.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
