ICESat: turn laser travel time into elevation evidence

NASA’s Ice, Cloud, and land Elevation Satellite, ICESat, launched in January 2003 as an EOS mission. Its Geoscience Laser Altimeter System, GLAS, investigated ice-sheet elevation as well as clouds, aerosols, land and vegetation. The mission’s observing record spans repeated laser-operation periods during 2003–2009; it should not be described as an uninterrupted stream of observations.

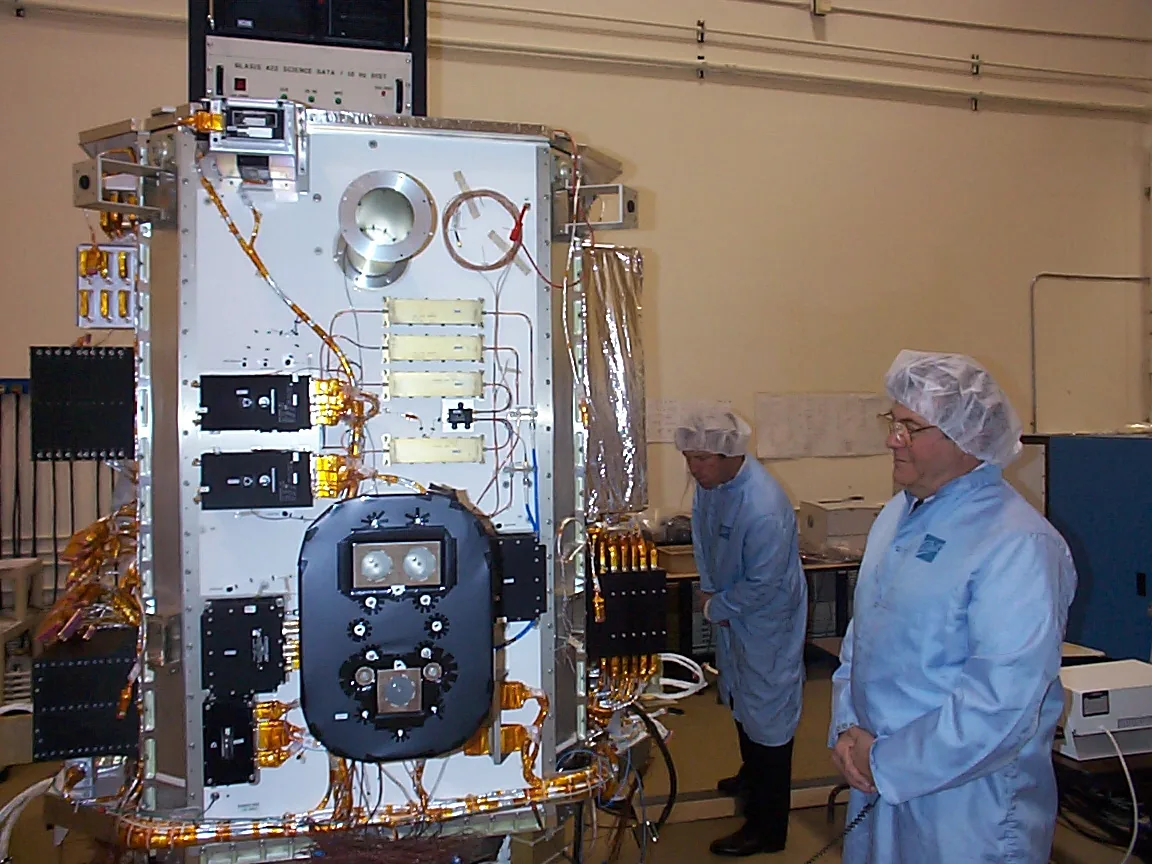

The original ICESat and the later ICESat-2 are separate spacecraft with different instruments. GLAS belongs to ICESat; ATLAS belongs to ICESat-2. The ICESat hardware photograph shows the original satellite during antenna integration. A shared scientific theme and similar names do not make the payload designs or their observing patterns interchangeable.

Laser altimetry — open definition uses the travel time of light sent toward a target and received after reflection. In a simplified vacuum calculation, range equals light speed multiplied by round-trip time, divided by two. The division matters because the light travels outward and back. Determining a surface elevation also needs accurate spacecraft position, pointing, timing and corrections for the observing conditions.

For a fictional round-trip time of 0.004 seconds, use light speed of approximately 300,000 kilometers per second: 300,000 × 0.004 ÷ 2 = 600 kilometers. This is range between instrument and target, not elevation above sea level. Clouds, slope and vegetation can affect which reflecting surface contributes to a return, so a raw signal needs interpretation.

Suppose a fictional repeated survey finds that an ice surface is lower. That is evidence of elevation change after location and measurement effects are checked. Estimating the amount of lost mass requires additional information, including the area affected and the density of material involved. Snow accumulation, compaction and ice motion can complicate a simple height-to-mass conversion.

The ICESat/GLAS long-term archive preserves calibration, processing and validation information along with the products. That context allows researchers to revisit old measurements and compare them with later observations. ICESat was decommissioned in 2010, but its scientific record remains useful. The lesson is to follow the whole inference from timed light, to range, to elevation, and only then to a carefully supported physical interpretation.
