Atlas: connect a booster to a high-energy upper stage

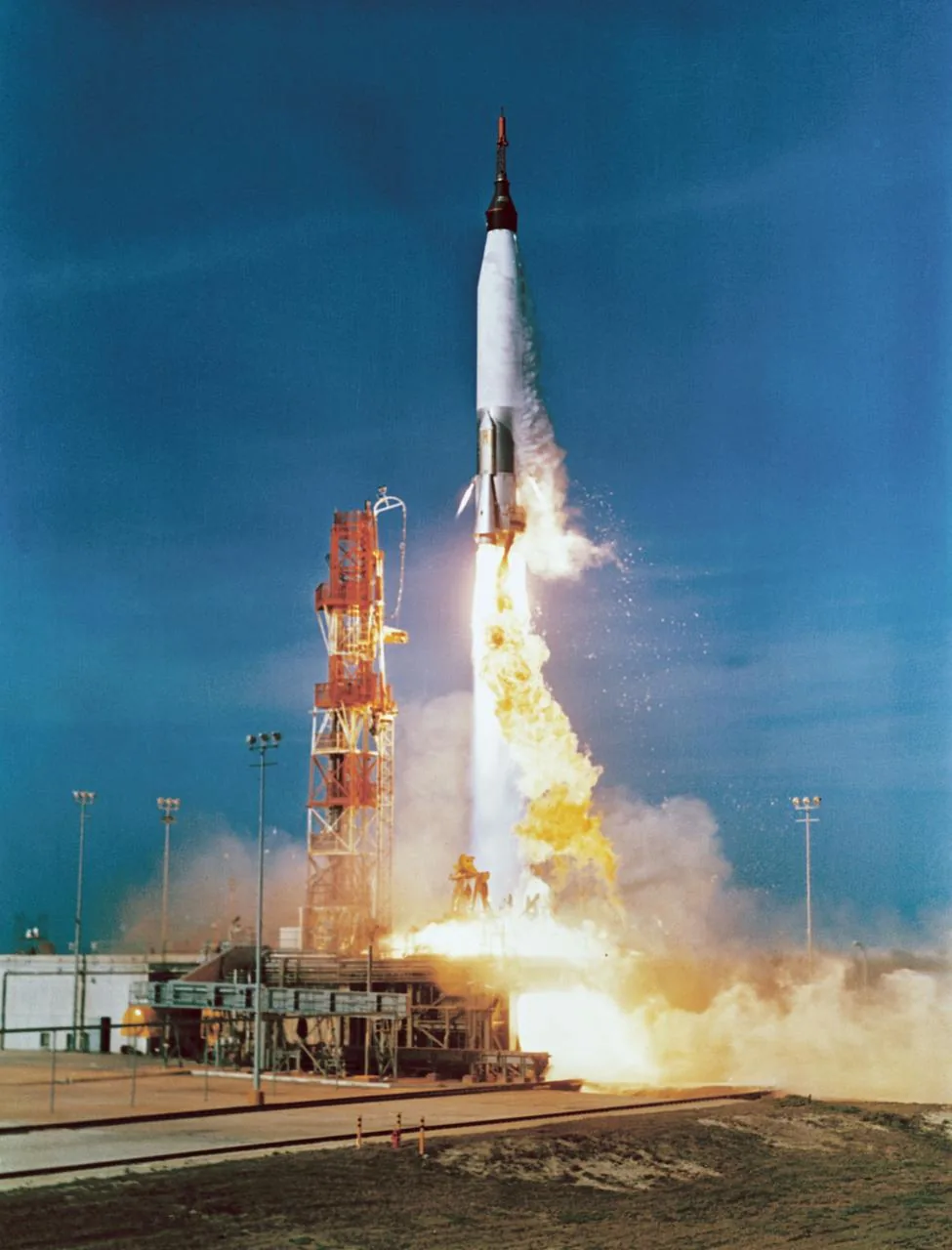

The Atlas lineage connects early missile-derived launchers and Mercury flights with later satellite and exploration launches. The pictured Atlas 67-D launched the uncrewed Mercury-Atlas 2 test in 1961. It is not an Atlas V or a photograph of John Glenn’s flight. Identifying the particular vehicle and mission keeps the historical transition visible instead of treating decades of redesign as one unchanged machine.

Atlas V uses a common core booster, optional solid rocket boosters and a Centaur upper stage — open definition. Those features describe that later design, not every earlier Atlas configuration — open definition. The number and arrangement of boosters can adapt a launch configuration to a payload’s needs, within the vehicle’s qualified options. A customer chooses a demonstrated configuration and mission profile; adding a booster is not a free modification that can bypass structural, performance or integration review.

Centaur’s liquid-hydrogen development involved NASA research, contractor hardware and extensive testing. Atlas-Centaur carried Surveyor 1 toward the Moon in 1966 after a difficult development period. Centaur also served with other booster families, so it should not be treated as simply another name for Atlas. The booster and upper stage cooperate in a launch system while retaining different engineering functions and histories.

An upper stage may need to coast between burns and then restart with the proper attitude, propellant conditions and timing. In a fictional timeline, a spacecraft needs a later injection — open definition burn after a coast. Reaching a temporary parking orbit — open definition is therefore an intermediate milestone rather than completion of that mission. If the later burn does not occur, the spacecraft may remain in an orbit even though the required delivery has failed. These are general sequence principles, not a reconstruction of a particular Atlas failure.

Follow the complete delivery

NASA’s Centaur testing history describes separation experiments in ground facilities. Such work asks whether joined stages can release cleanly without damaging hardware or obstructing the next operation. Mechanical clearances, wiring disconnections and timing all matter. A working engine and a working guidance computer are necessary contributions, but they do not alone demonstrate that the complete sequence will succeed. The boundaries between subsystems require their own tests.

For an original acceptance exercise, a payload must separate within a defined orbital range and transmit its first status message. A report that says only the booster lifted off leaves both requirements unverified. A report with insertion measurements, separation confirmation and received spacecraft data provides a much stronger chain of evidence. The Atlas history illustrates how a launch family develops usefulness through these linked capabilities: lift the payload, shape its trajectory, separate it safely and hand over to its own mission operations.
