Lesson 4 of 4 · Falcon development and reuse
Falcon: separate launch performance from booster recovery
8 minute lesson · 3 checks along the way
Your goal for this lessonTrace Falcon development and explain what partial reuse does and does not demonstrate.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Read & understand
From a smaller launcher to a wider family
SpaceX developed the smaller Falcon 1 before Falcon 9, whose first orbital flight took place in June 2010. That December, Falcon 9 launched a Dragon demonstration for NASA’s Commercial Orbital Transportation Services partnership. The rocket, the spacecraft and the development program are three different identities: one supplies launch propulsion, another performs spacecraft operations, and the partnership defines development objectives and responsibilities.
Falcon Heavy first flew in February 2018 with three first- cores arranged side by side. NASA’s account describes the separate outcomes of its boosters, including the two side cores’ landings. A family history should retain Falcon 1, Falcon 9 and Falcon Heavy as distinct designs rather than infer that every feature applies to each. The Falcon 1 launch photograph shows a 2009 flight from Omelek Island; it does not depict a reusable Falcon 9 booster returning to land.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Recovery is an additional mission sequence
Falcon 9 is a two-stage launcher whose first stage can be recovered for another flight. The second stage continues toward payload delivery while the separated first stage follows a different trajectory. Reentry, guidance, landing burns and landing hardware add their own requirements. Recovering the first stage does not mean the whole rocket returns, and an image of a landed booster does not by itself establish that the payload reached its required orbit.
Consider an original outcomes table with two independent questions: was the payload delivered correctly, and was the booster recovered? A flight can succeed at delivery while losing the booster. It can also return the booster while another part of the mission fails. Recording both outcomes prevents a dramatic landing scene from replacing the evidence for the customer’s mission. This exercise defines categories without assigning an invented outcome to any specific Falcon flight.
Keep three outcomes separate
Original teaching diagram. Payload delivery. Booster recovery. Later flight of that stage. 100 build + 4 × 10 turnaround. 140 units across 5 flights. 28 units per flight in this model. Original cost example excludes upper stages, facilities, financing and other mission costs.

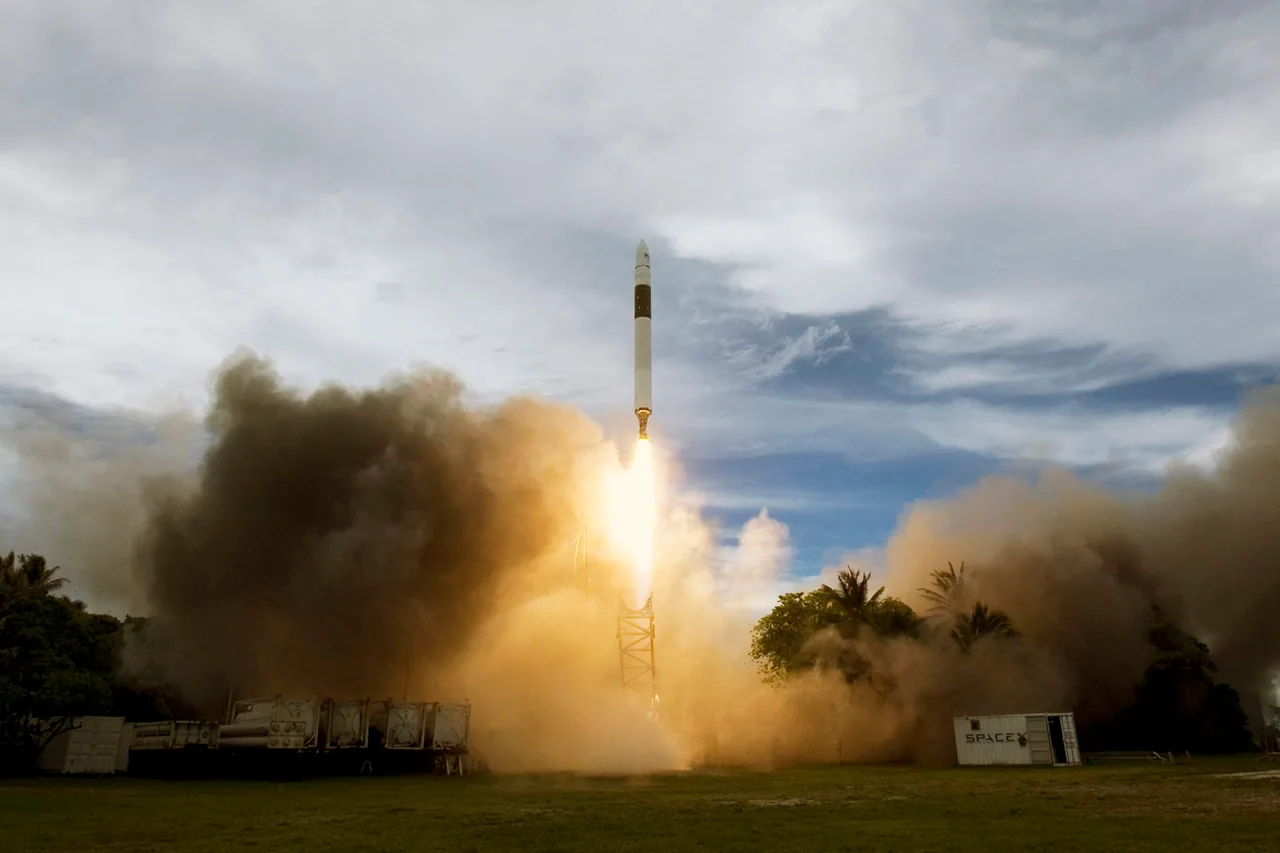

Open full-size diagram in a new tab: Keep three outcomes separateFalcon 1 lifts off from Omelek Island on its fifth flight in July 2009. The SpaceX photograph is a family example of the smaller early launcher; it does not show a Falcon 9 recovery or a Falcon Heavy flight.
Look closely
What does this photograph establish about reusability?
See what to notice
It records a launch, not recovery or a later flight of the same stage. Those milestones need their own operational evidence.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Reuse requires more than a landing
A recovered stage must be assessed, prepared and cleared for another mission. Its flight history, inspections and any replaced components matter to that decision. Recovery is therefore a physical event, while demonstrated reuse includes a later flight of the same stage. A program can learn from recovery attempts before routine reuse becomes possible, and a claim about one successful reused booster is not a claim that every component lasts indefinitely.
For a simplified original cost exercise, suppose a reusable stage costs one hundred units to build and ten units to prepare between flights. Across five flights, that gives one hundred plus four turnarounds, or one hundred forty units before other costs. The average is twenty-eight units per flight for this limited model. Real launch economics also include upper stages, recovery operations, facilities, financing and failed attempts. The calculation shows how spreading construction cost can help while keeping the boundaries of the claim explicit.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
Explore further · Optional
Go to the source
Explore the evidence behind this lesson. These optional readings and videos open in a new tab.
- Read: SpaceX: Falcon 9Manufacturer account of the two-stage rocket, engines and first-stage recovery. First-stage reuse does not mean the whole vehicle returns.
- Read: NASA: Falcon 9 reaches orbit in 2010Contemporary account of Falcon 9’s first flight, following the smaller Falcon 1. The lesson uses the dated flight history, not changing cumulative totals.
- Read: NASA: the first Falcon Heavy flightDescribes the February 2018 demonstration, three-core arrangement and separate booster outcomes.
- Read: NASA: the December 2010 COTS demonstrationDistinguishes the Falcon launch vehicle, Dragon spacecraft and NASA’s development partnership.
