Judge the outcome and the legacy

On STS-51-D in April 1985, the Leasat-3 satellite failed to begin its intended post-deployment sequence. Stanley David Griggs and Jeffrey Alan Hoffman went outside Discovery to attach improvised flyswatter tools to the arm. Margaret Rhea Seddon used the arm to engage the satellite’s lever, but the sequence still did not start.

The preserved photograph documents work on the tool and arm. It is evidence for that activity, not an image of a functioning satellite after repair. NASA’s mission account supplies the outcome. Reading the photograph together with the account avoids turning an inventive attempt into an unsupported success story.

In an original review exercise, separate three claims: the tool was installed, the lever was engaged, and the satellite activated. Evidence supporting the first two does not establish the third. A useful mission report can acknowledge effective teamwork while accurately recording that the desired recovery did not occur on that flight.

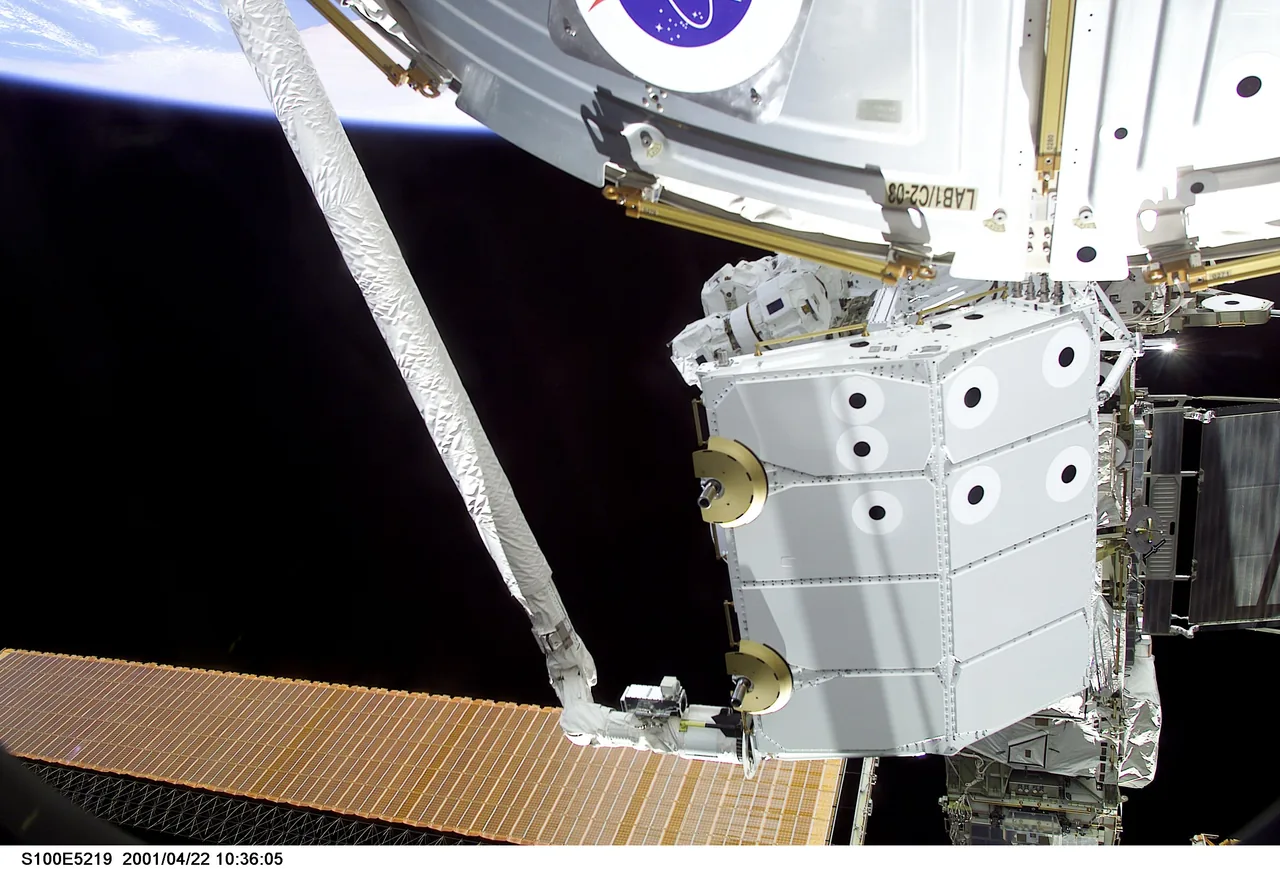

Canadarm later helped with station assembly and inspection. The STS-100 photograph shows the Shuttle arm holding the pallet that carried Canadarm2 for installation in April 2001. It shows two generations in one operation: the original arm doing the handling, and station equipment being delivered as cargo.

The Shuttle arm also worked with the Orbiter Boom Sensor System to inspect thermal protection. An inspection gathers observations; it does not itself repair the surface being inspected. A team must connect the observed condition with an assessment and any subsequent action.

When comparing these tasks, ask what counts as completion. Moving an assembly to its intended position, confirming a mechanical connection, obtaining usable inspection data and restoring a satellite’s function each require different evidence. One generic “robot worked” label would conceal those distinctions.

An intervention and its intended result

The original arm was fixed at one end to the Shuttle. Canadarm2 was designed for the International Space Station with end effectors at both ends, allowing it to change anchor points. A station fixture supplies the connections required for that work. The family resemblance does not make the two robots interchangeable.

The Shuttle Canadarm program ended with its ninetieth flight on STS-135 in July 2011. Canadarm2’s station work and Canadarm3’s Gateway development belong to separate programs. Canadarm3 is discussed here as a development lineage, without treating a planned capability as an already completed lunar operation.

This distinction also guides archive reading. Identify the mission, arm generation and depicted task before reusing a photograph as evidence. In a learning catalogue, a country hub can connect related programs while separate courses explain their different purposes, interfaces and histories.
