Lesson 1 of 7 · Canadarm3
Canadarm3: follow a robotic design through a changing exploration plan
8 minute lesson · 3 checks along the way
Your goal for this lessonExplain the original Canadarm3 concept, the August 2026 change in direction, and the evidence needed to transfer technology into a new mission.
In this lesson 3 sections · 3 checks
Using archive links & definitions
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Read & understand
Begin with the design problem
Canadarm3 was developed as Canada’s robotic contribution to Gateway, the proposed lunar-orbiting outpost. The original architecture combined a large arm, a smaller dexterous arm and a caddy for tools and replaceable equipment. Compatible attachment points were intended to provide structural support, power and data. This followed Canadian experience with the shuttle Canadarm and the International Space Station’s Canadarm2 and Dextre.
Operating farther from Earth changes the balance between onboard capability and direct human control. The Canadarm3 concept included autonomous tasks alongside control by ground operators or crew. Autonomy means carrying out a defined task within specified limits, not understanding every possible situation. A useful design must establish what the robot can detect, which actions it may take and when it should stop and request help.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Update the plan when the program changes
On August 6, 2026, the Canadian Space Agency announced its intention to repurpose Canadarm3 investments for the next phase of lunar exploration. The agency described continuing work with MDA Space to adapt technology for a broader range of lunar operations. That dated announcement qualifies the older Gateway-specific architecture and delivery forecast still visible in background material.
The announcement does not establish that a replacement robot has flown, or that every original component will be used unchanged. Program history should preserve both the original objective and the later decision. Otherwise a reader might mistake an old animation for a final flight configuration. Treat designs, funded development, hardware tests and demonstrated mission operations as different kinds of evidence.

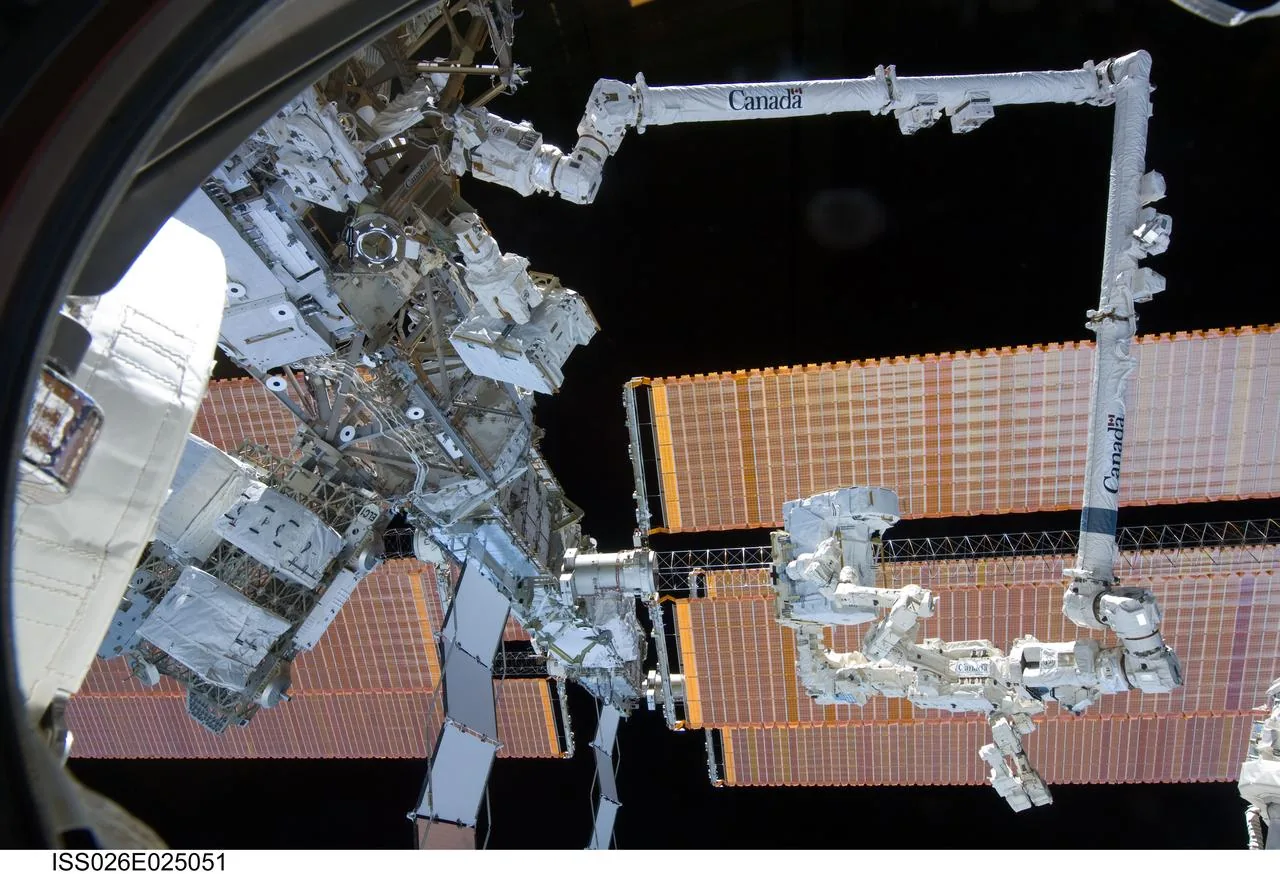

Dextre is attached to Canadarm2 during station work in February 2011. This is earlier ISS robotics heritage, not Canadarm3 or a robot operating near the Moon. The original NASA identification strip is preserved along the bottom of the archived photograph.
Look closely
What does this heritage image establish for a future lunar robot?
See what to notice
It documents an earlier station system and its operating context. A new robot still needs evidence for its own interfaces, environment and task requirements.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Read & understand
Evaluate what can transfer to a new task
Dextre’s station maintenance experience provides useful heritage for detailed robotic work. It does not automatically qualify a new system for a different destination. Changes in mounting, lighting, thermal conditions, communications or tools can alter the task. Engineers need to identify which earlier results remain relevant and which requirements must be verified again in the new environment.
Imagine a fictional arm that successfully replaces a component on a ground test stand. A new mission mounts the arm on a more flexible structure and changes the connector. The earlier test still demonstrates some useful capability, but it does not verify the new combination. A sensible next step tests the revised interface and motion under representative conditions. Canadarm3’s evolving story shows how technical heritage can remain valuable while the destination and requirements change.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
Explore further · Optional
Go to the source
Explore the evidence behind this lesson. These optional readings and videos open in a new tab.
- Read: CSA: original Canadarm3 architectureThe original Gateway design and schedule are historical development context. Read the August 2026 repurposing announcement before interpreting them as a settled future configuration.
- Read: CSA: August 2026 intention to repurpose Canadarm3 investmentsThis announcement describes intended adaptation of work with MDA for lunar operations; it does not establish a flown replacement system.
- Read: CSA: Dextre and detailed station maintenanceExisting ISS robotics is heritage, not evidence that the original Canadarm3 design has flown.
