MOL: a military laboratory planned for reconnaissance

The Manned Orbiting Laboratory, or MOL, was a U.S. Air Force and National Reconnaissance — open definition Office effort to place crews in orbit for photographic reconnaissance. Public descriptions emphasized experiments and military human space operations, while the classified reconnaissance purpose shaped the system. Declassified records let the historical account distinguish those layers.

A modified Gemini spacecraft, called Gemini B, would provide crew transport and return. A connected laboratory and its camera system would support the orbital mission. Human operators were expected to help choose useful observations, including responding to clouds and changing priorities. That proposed advantage also had to be weighed against the demands of supporting and returning people.

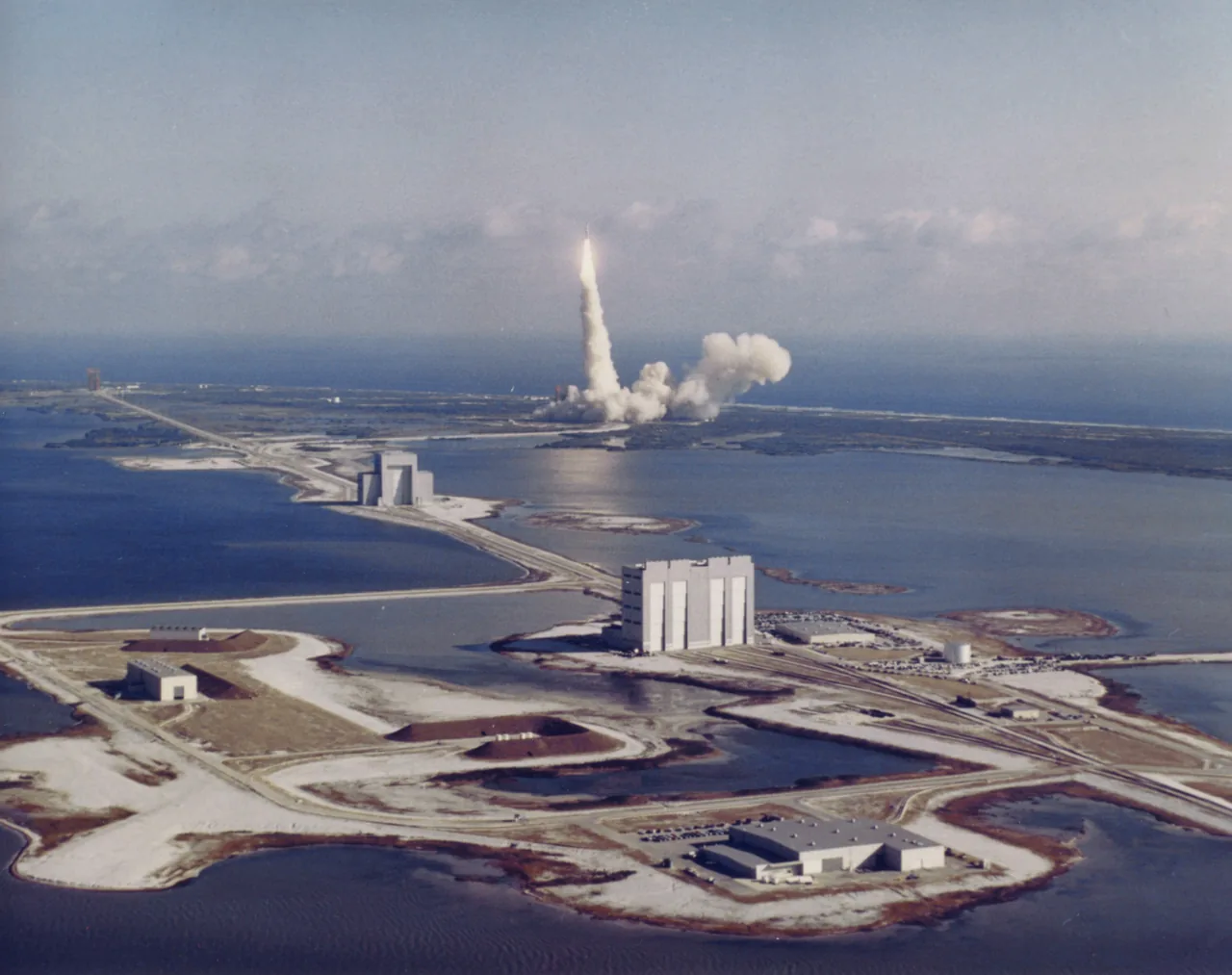

The November 3, 1966 Titan IIIC flight carried a refurbished Gemini capsule and a laboratory mock-up — open definition. The capsule’s return tested a heat-shield hatch arrangement associated with passage between the spacecraft and laboratory. The test had meaningful engineering objectives, but it did not place a crew aboard an operational reconnaissance station.

Mission photographs should retain that distinction. A rocket launch demonstrates that the pictured launch occurred; the payload description establishes what was aboard. A laboratory-shaped object in orbit is not automatically an inhabited station, and a successful capsule return does not validate every element of a complete reconnaissance system.

MOL was canceled in June 1969 after substantial development. Budget pressures, delays and advances in uncrewed reconnaissance changed the case for the crewed system. Assessing that outcome requires comparing the mission need and alternatives, rather than treating a crew as automatically superior to a robotic spacecraft.

Some selected MOL pilots later transferred to NASA and flew in other programs. Personnel experience and technical work can continue after a program ends, but that legacy does not turn later Shuttle missions into MOL flights. Keep the identity of each program, spacecraft and mission intact when tracing how experience moves between institutions.
