Pegasus: measure the small impacts that threaten spacecraft

The Pegasus meteoroid satellites were launched on three Saturn I flights in 1965. NASA’s Marshall Space Flight Center managed the effort, with Fairchild developing the spacecraft. Their purpose was to measure aspects of the small-particle environment that could affect spacecraft design. This Pegasus program is distinct from the later air-launched rocket with the same mythological name.

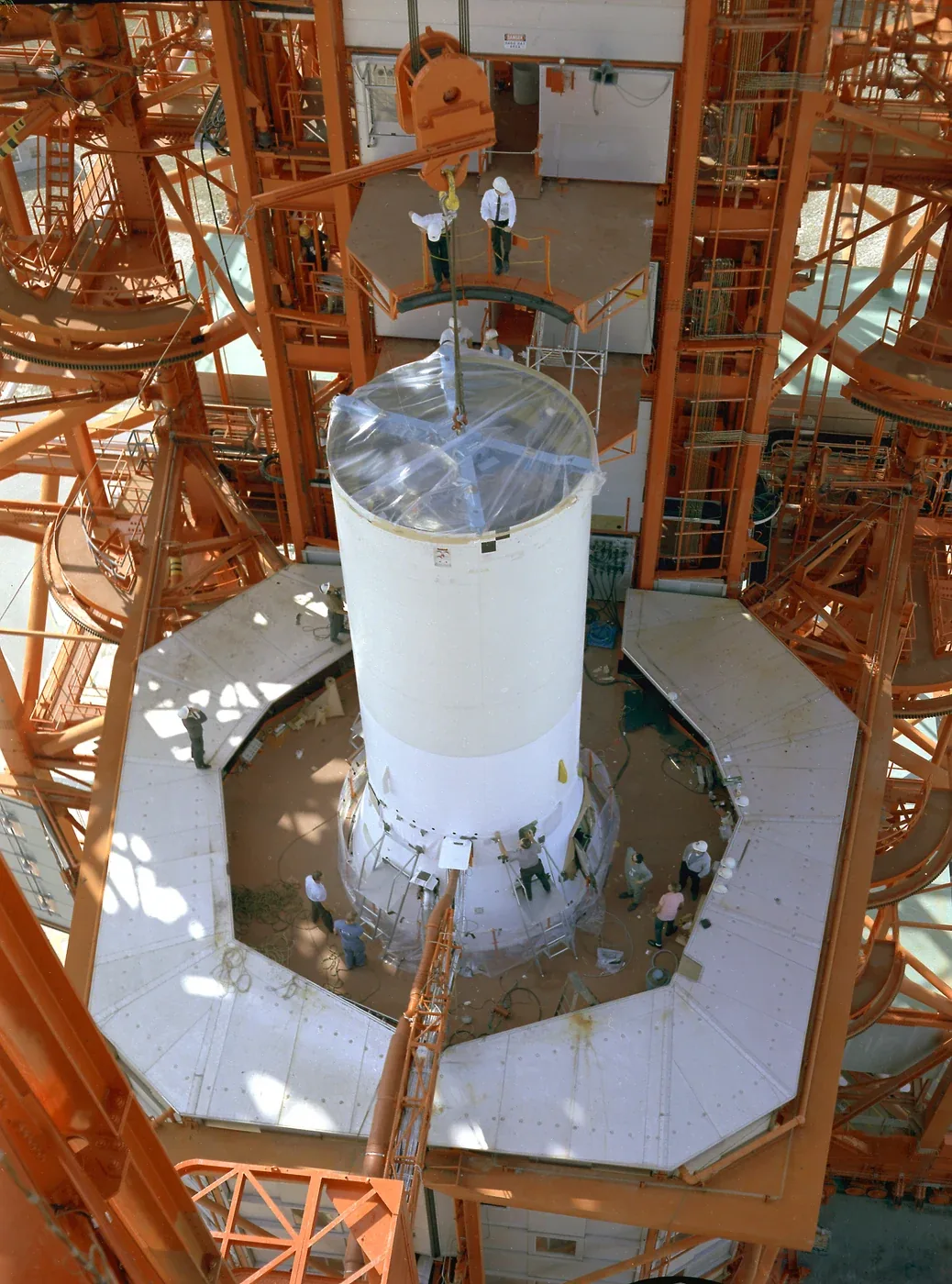

Pegasus 1 flew on the SA-9 mission in February 1965. After reaching orbit, the satellite extended large wing-like detector surfaces. These surfaces increased the area exposed to potential impacts. Their job was to sample meteoroid penetration, not to propel the satellite or photograph every nearby particle. The large deployed area addressed the difficulty of observing relatively uncommon events.

A penetration detector responds to particles capable of producing its specified detectable effect. Material thickness, exposed area and detector operation affect the observations. A count therefore belongs to a particular instrument and threshold. It does not include every smaller particle that might pass nearby or establish the exact damage that a differently protected spacecraft would experience.

For a fictional simplified detector, suppose 12 qualifying events occur over 2 square meters during 3 days. The observed event rate is 12 divided by 6 square-meter-days, or 2 events per square meter per day. This normalizes the count by area and exposure time — open definition. It is a teaching calculation, not a published Pegasus measurement or a prediction for all Earth orbits.

Now compare a second detector with fewer events but a much smaller exposed area. Raw totals alone do not show which encountered the higher normalized rate. The comparison also needs compatible detection thresholds, exposure conditions and working time. If one instrument was inactive for part of the interval, calendar duration should not be substituted for actual collecting time.

Engineering decisions use these measurements alongside models and other evidence about particle speeds, sizes and shielding. Even a period with zero detected penetrations does not prove that impacts are impossible; rare events and limited sampling remain considerations. Pegasus helped replace speculation with orbital evidence, while responsible use of that evidence preserves what the detectors could measure and the conditions under which they collected it.
