Transit: navigate by listening to a satellite pass

After Sputnik, researchers at Johns Hopkins Applied Physics Laboratory studied how a satellite’s radio frequency changed during a pass. If a ground observer’s position was known, those Doppler measurements could help determine the satellite’s orbit. Transit reversed the problem: with the satellite’s orbit known, a receiver could use the changing signal to estimate its own position.

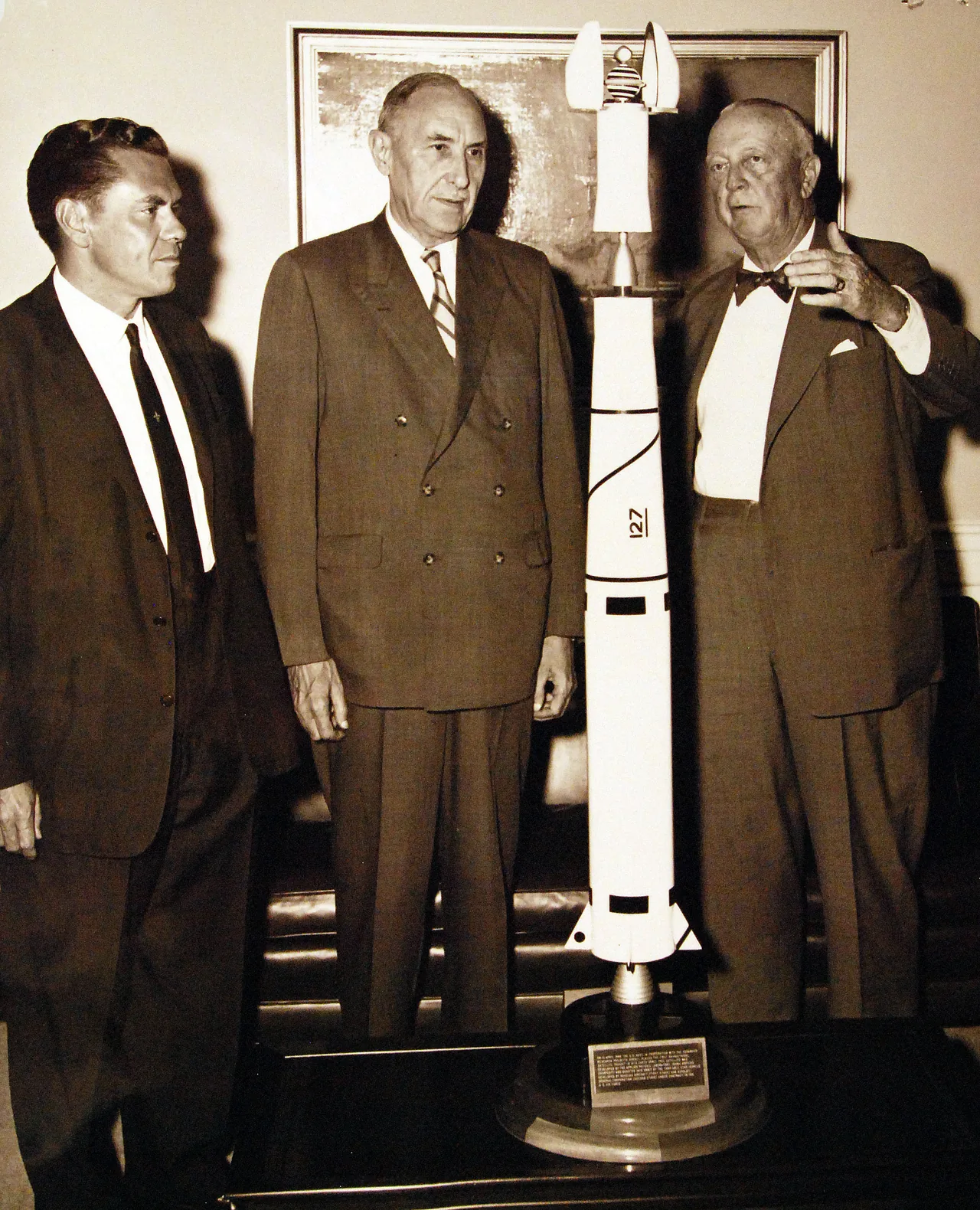

Developed for the U.S. Navy, Transit became operational in 1964 and later served civilian users as well. Transit 1B was an early experimental spacecraft in the development sequence. The navigation program included satellites, orbit determination, transmitted information and receivers. A model of the launch system documents the development story but does not show an actual navigation measurement being made.

The Doppler effect changes received frequency when the source and receiver move relative to one another. In a simplified pass, the signal is shifted higher as the satellite approaches and lower as it recedes. The changing pattern over time, combined with orbit information and a model of the receiver’s motion, helps constrain location. One frequency value alone is not a complete geographic address.

The spacecraft’s radio transmission must be stable and its orbital information accurate enough for the intended calculation. Propagation effects and receiver movement also require attention. A ship’s motion during a pass can affect the inference, so treating a moving receiver as perfectly stationary can introduce error. Navigation emerges from a physical model and a sequence of observations, not simply from detecting any radio signal.

Transit supplied position fixes from suitable satellite passes. It should not be described as delivering the same continuous, rapid position service associated with modern multi-satellite navigation systems. A user needed to understand when a useful pass would occur and how the resulting fix related to the vessel’s ongoing motion. Other navigation information could help between satellite fixes.

Imagine a fictional ship obtaining a position at noon and then traveling for twenty minutes. Displaying the old fix without its time would conceal that the ship may have moved. A responsible navigation record preserves the observation time and the assumptions used to update position. Transit’s achievement was practical space-based navigation through Doppler measurements, with service limits that mattered as much as the novelty of the method.
