Interpret radar with its geometry

Gao Fen 3 produced its first published radar observations in August 2016. Radar sends microwave pulses and records their echoes. Synthetic aperture processing combines measurements along the spacecraft’s motion to improve along-track detail. Unlike a visible-light camera, the radar supplies its own illumination.

This makes observations possible at night and through cloud conditions that obstruct optical views. It does not mean every target is always observed, or that the instrument sees through every material. Coverage, acquisition mode, terrain and the target’s interaction with the signal still determine what the image can show.

Radar brightness represents returned signal strength, not familiar visual color. Smooth calm water often sends much of the signal away from the sensor and appears dark. Roughness, moisture and structures can change the return. Wind can alter a water surface, and terrain can prevent illumination altogether.

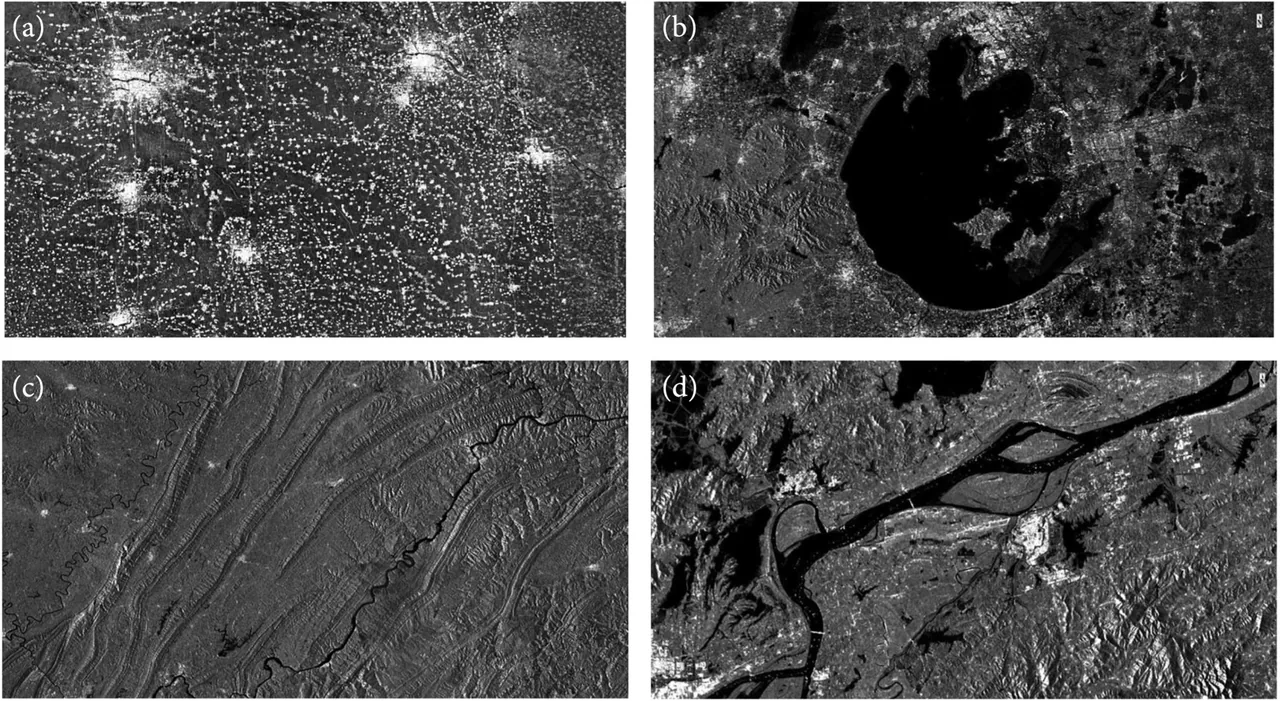

Inspect the four published Gaofen-3 panels. Lake and river patterns are visible, but their appearance alone is not a universal flood detector. A dark patch on a hillside could be radar shadow. Compare the terrain, viewing direction, earlier observations and independent evidence before assigning a physical explanation.

Side-looking radar can compress slopes facing the sensor, overlap returns from different elevations, and leave shadows behind terrain. These effects are called foreshortening, layover and radar shadow. Terrain correction helps locate observations on a map; it cannot recreate a return from ground that was never illuminated.

Radar images also contain speckle: a granular pattern produced by the combination of many scattered echoes. Averaging or filtering can make broad patterns easier to use, with choices that affect detail. Record the processing and keep comparisons consistent. A smoother-looking display is not by itself proof of a more accurate measurement.
