Bring the terminal to the users

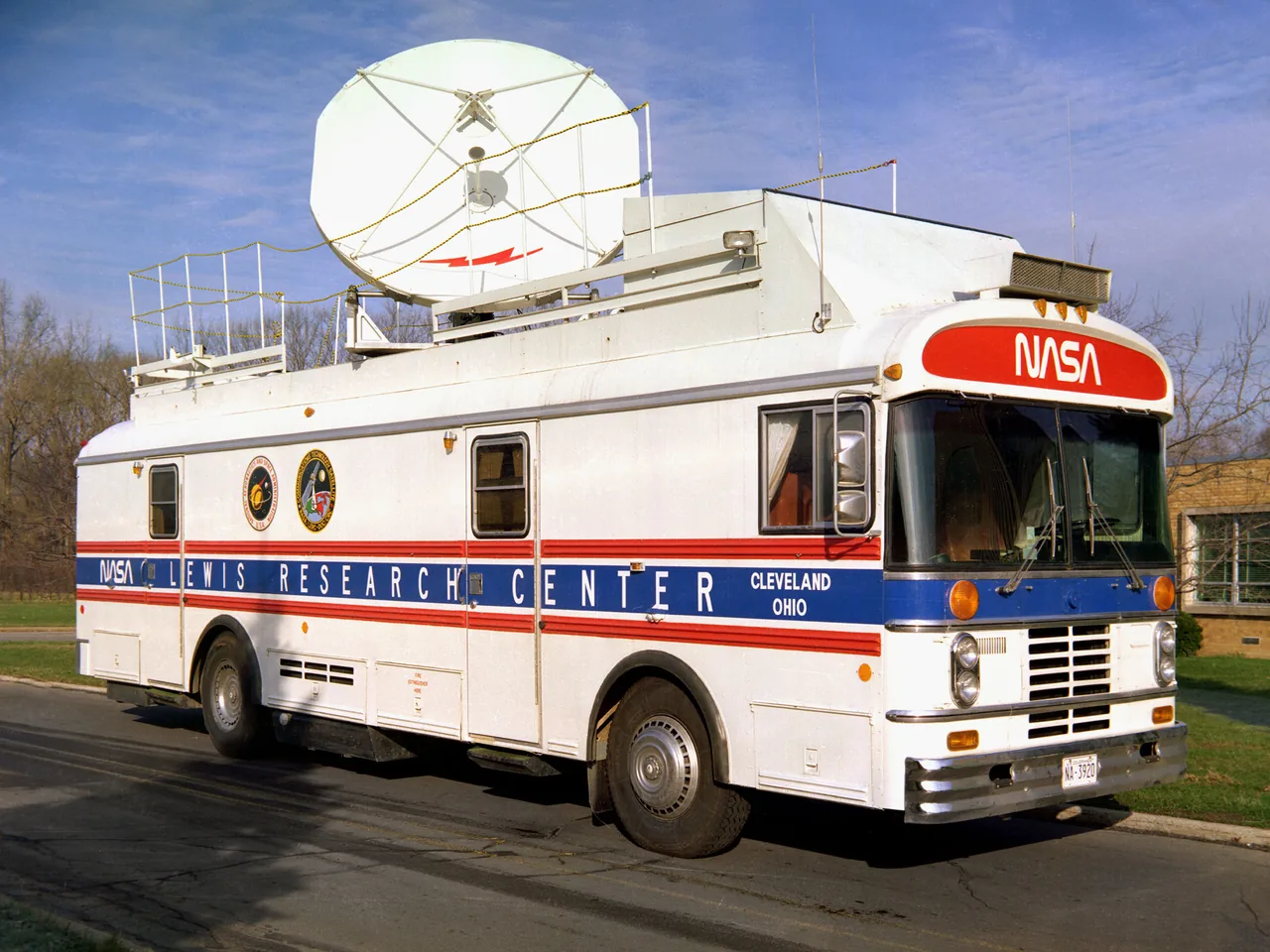

NASA Lewis developed a Portable Earth Terminal and a Transportable Earth Terminal for short-term Hermes users. The preserved color photograph shows the portable vehicle, with a large rooftop dish and a studio and electronics inside. Moving equipment to a community changed the logistics of an experiment; it did not remove the need for a functioning ground station.

The 1977 terminal report describes television uplinks at 14 GHz and reception at 12 GHz. The two directions use different radio frequencies. A station receiving a picture has demonstrated a receiving path; it has not automatically demonstrated that its own picture and sound can reach another participant.

Consider two classrooms, A and B. A camera and microphone create signals at A, the uplink sends them toward the satellite, and the downlink brings them to B’s receiver and display. A discussion also needs a return path. A broken microphone at B can prevent questions from being heard even while B sees an excellent picture.

The original report’s site survey considered antenna direction, interference, electrical power, cable connections and vehicle clearance. The physical setting could decide whether a planned demonstration was feasible. A school’s large classroom might be useful for teaching while its nearby parking space was unsuitable for the antenna or vehicle.

In a fictional planning exercise, a terminal needs an unobstructed view in one specified direction. Site A has power and parking but a building blocks that direction. Site B has a clear view and parking but no approved power connection. Neither site is ready as described. A useful plan identifies which missing condition can actually be resolved.

This is a systems lesson, not an installation guide. Radio transmission, electrical connections and vehicle operation require trained personnel and the applicable approvals. For the learner, the important reasoning is that satisfying one requirement cannot be used as proof that all the others are satisfied.

A conversation needs both directions

NASA’s account describes end-to-end checks of audio, video and the planned activity. The test extended beyond detecting a radio signal. The result needed to be usable by people at the participating locations, with the equipment configured for their event.

Create a small diagnostic table for a fictional rehearsal: A sees B, B sees A, B hears A, but A cannot hear B. Three successful observations help narrow the problem, but they do not prove the whole conversation works. Investigate the B-to-A audio path, including its source, routing and output, instead of declaring the satellite wholly broken or wholly verified.

A meaningful acceptance statement names what was tested. “Both classrooms exchanged intelligible speech and usable pictures during the rehearsal” is stronger than “a signal was detected.” It is also bounded: it describes that rehearsal and configuration, not every future location or weather condition.
