Distinguish disposal from sample return

The original HTV was designed for destructive atmospheric reentry after departure from the ISS. Carrying unwanted station material to disposal was part of its role. On HTV-7, a small reentry capsule demonstrated a different capability: returning a limited set of samples for recovery on Earth. That capsule did not turn the entire cargo vehicle into a reusable spacecraft.

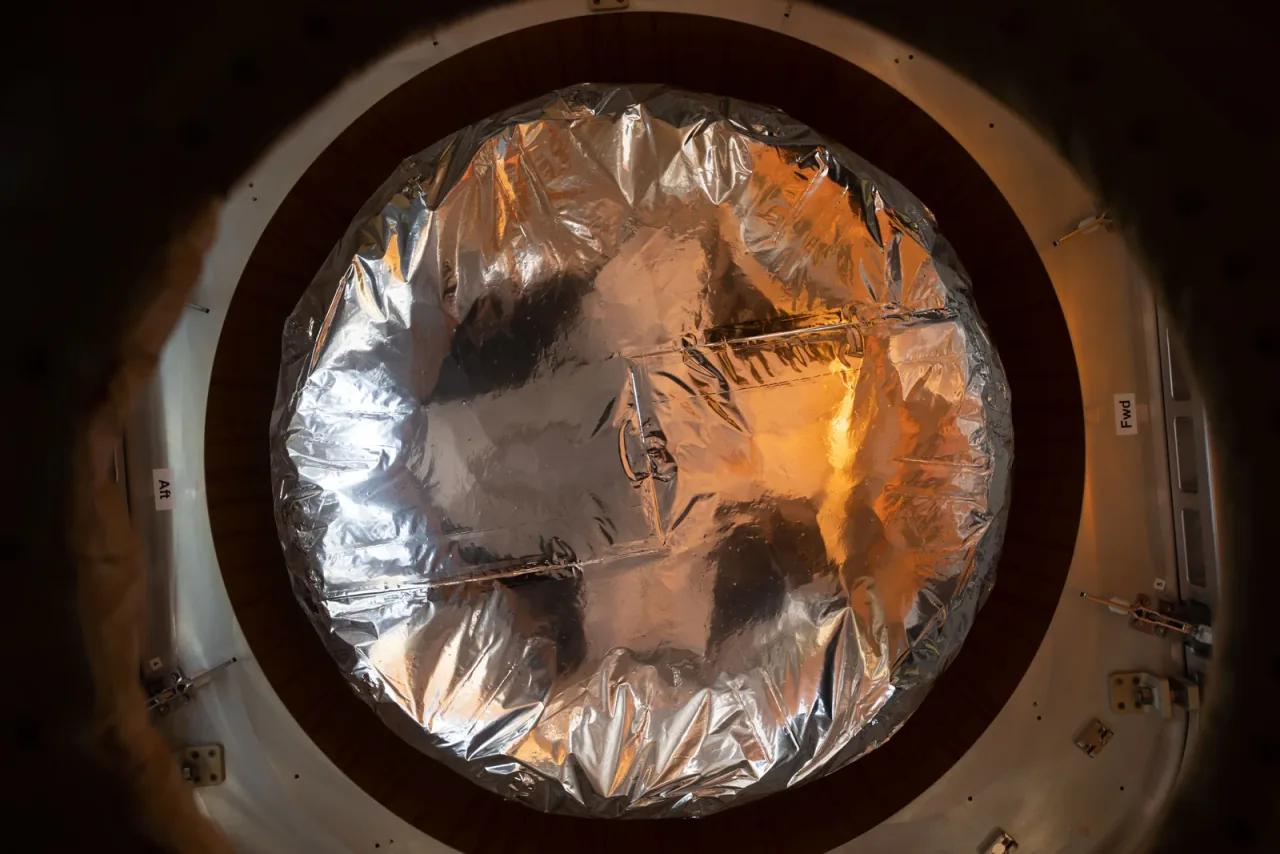

NASA’s November 7, 2018 photograph shows the HTV Small Re-entry Capsule through Harmony’s nadir hatch window during HTV-7 unberthing. It documents hardware during departure preparations. It is not a photograph of ocean recovery and cannot, by itself, prove what happened to the samples afterward.

JAXA’s November 22, 2018 account describes protein crystals grown aboard the station and placed in the capsule. After recovery, the containers reached Tsukuba for inspection. The report states that no damage to the crystals was observed and that recorded temperatures stayed around the required four degrees Celsius during recovery. Those observations addressed particular sample-handling requirements.

The chain includes preparation, controlled storage, transfer, reentry protection, recovery, transport and inspection. A successful splashdown alone would not establish that a temperature-sensitive sample remained useful. Conversely, the reported sample condition does not establish every possible benefit of later scientific analysis. Those are separate questions with their own evidence.

Consider an invented sample requirement of 2 to 6 degrees Celsius throughout a monitored transfer. Readings of 3, 4 and 5 degrees fall within that band; a reading of 8 degrees does not. An average within the band cannot erase that recorded excursion. The example teaches a requirement check, not an actual HTV data series.

Records also have limits. If a logger stopped for part of the journey, the measured intervals would not prove continuous compliance during the gap. The right conclusion would retain the missing evidence and examine its importance. Returning a sample is valuable when its identity and condition remain documented well enough for the intended analysis.
