Lesson 5 of 6 · Diffraction and resolution
Why a larger image may show no new detail
8 minute lesson · 3 checks along the way
Your goal for this lessonCompare ideal telescope resolution using wavelength and aperture, then distinguish that limit from sensitivity, magnification, and image processing.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
A point does not become a perfect point
A ray diagram can suggest that a distant point source focuses onto an infinitesimally small point. behavior adds a qualification. Light passing through a finite opening or around an edge spreads and interferes, a phenomenon called . A telescope therefore records a point source as a pattern with a finite width. Two nearby sources produce overlapping patterns, which can make them difficult to distinguish as separate objects.
describes the ability to distinguish small separations on the sky. A smaller resolvable angle means finer detail. For comparable ideal apertures, the characteristic diffraction angle scales with divided by aperture diameter, λ/D. Longer wavelengths produce a broader pattern at the same diameter; a larger diameter narrows it at the same wavelength. The exact pattern also depends on aperture shape, gaps, and support structures.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Separate sharpness from signal strength
A larger collecting area generally gathers more from a source, helping measure faint signals. That is related to, but distinct from, angular resolution. Exposure time, background, detector response, focus, pointing, and atmospheric turbulence can also limit useful detail. A telescope that detects a faint unresolved object has established its presence without necessarily measuring the shape of its surface or separating all objects blended into that spot.
Magnifying an existing image spreads its recorded samples over a larger display. It can make features easier to inspect, but it does not automatically recover information the instrument never distinguished. More detector pixels likewise do not by themselves defeat diffraction. Processing can help estimate structures using a known instrument response and sufficient evidence; the resulting claim must still state its assumptions and uncertainty rather than promising unlimited detail.
Work through a decision
Compare three simplified designs
Compare ideal telescopes with the same shape and no additional limitations. Design A has a two-meter diameter and observes at 0.5 micrometers. B has four meters at 1.0 micrometer. C has four meters at 0.5 micrometers. Comparing λ/D in these consistent units gives 0.25, 0.25, and 0.125 respectively. These are comparison values, not angles until the length units are converted consistently.
A and B have the same ideal diffraction scale because both wavelength and diameter doubled. C’s characteristic angular width is half theirs, so it offers finer ideal resolution. B can gather more light than A under suitable comparisons without automatically improving this particular angular scale. Choose the design against the actual observing question, and then check whether real background, sampling, and optical quality preserve its theoretical advantage.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Recognize the telescope’s signature
James Webb Space Telescope uses a large segmented mirror to gather light and provide useful resolution at infrared wavelengths. Its bright-star diffraction spikes reflect the geometry of its mirror and secondary-mirror supports. They are not giant pointed arms physically extending from every star. A hardware photograph helps explain where that geometry comes from, but it is not itself a measurement of the telescope’s achieved in-orbit resolution.
When comparing two astronomical pictures, ask whether their wavelengths, angular scales, exposure conditions, and processing are comparable. A broader source in one band may reflect the instrument’s broader , a genuinely different emitting region, or both. Comparing a known point source and accounting for the instrument response helps separate those explanations. Good image reading asks which parts of the pattern belong to the sky and which to the measurement.

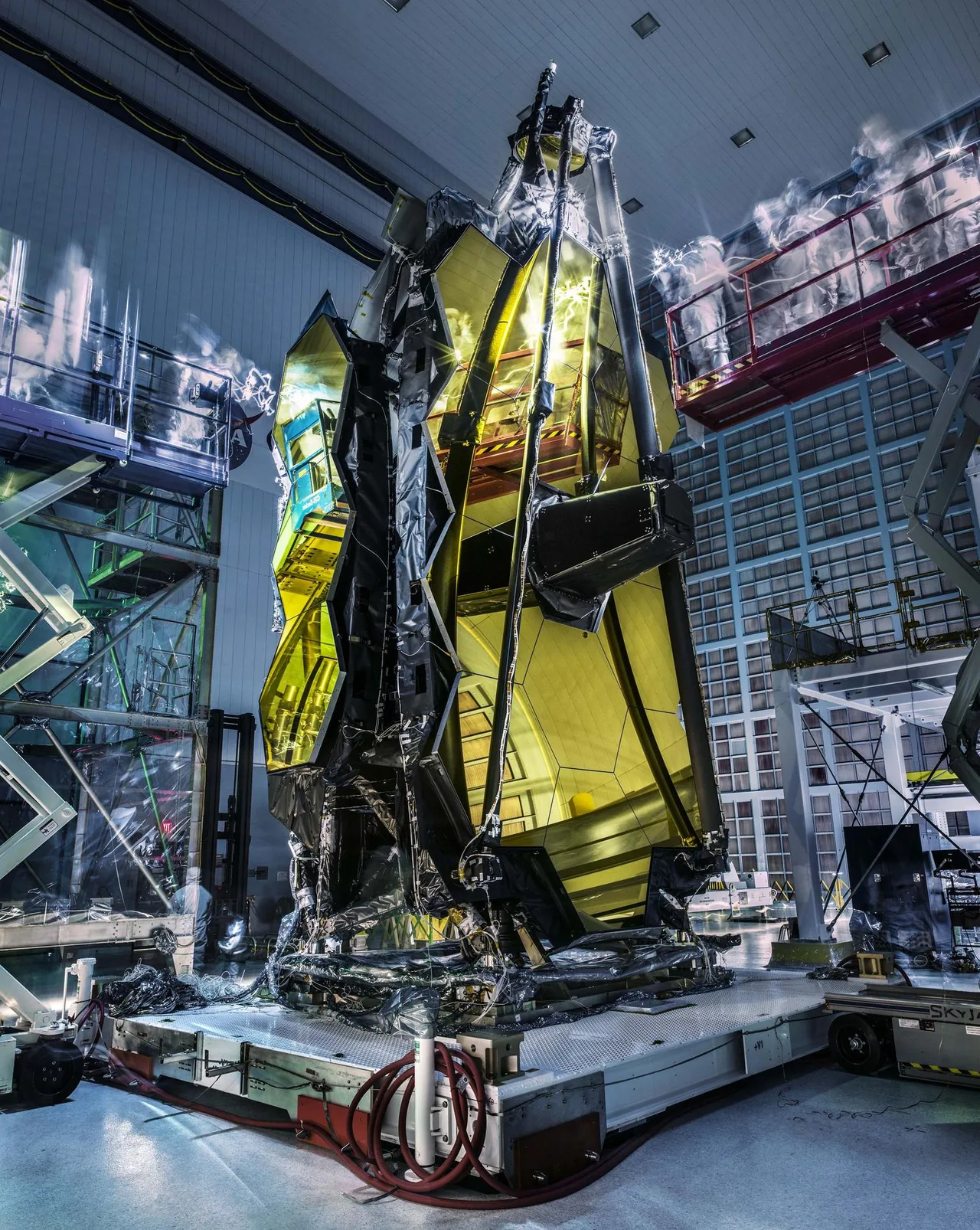

James Webb Space Telescope during a lights-out inspection at NASA Goddard. Photographer Chris Gunn used a long exposure and light painting; moving people and lights therefore appear blurred or streaked. This is an authentic photograph of ground hardware, not an astronomical image or a diffraction test result.
Look closely
Identify mirror-segment edges and a blurred light trail. Which relates to the telescope’s optical geometry, and which belongs to how this photograph was exposed?
See what to notice
Segment edges form part of the telescope aperture geometry that contributes to its diffraction response. The long light trails and ghostly people are consequences of motion during this camera exposure. Neither those trails nor the apparent mirror size in the frame measures Webb’s achieved angular resolution.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
