Lesson 6 of 6 · Spectra and Doppler shifts
Read the pattern, then measure its shift
8 minute lesson · 3 checks along the way
Your goal for this lessonUse spectral lines as evidence of matter and estimate a low-speed radial Doppler shift without claiming a complete three-dimensional velocity.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
A spectrum keeps information an image combines
An ordinary image records where light arrives on a detector. A measures how a signal is distributed across , frequency, or photon energy. Astronomers can study broad emission and narrow features within that distribution. A plot’s horizontal axis might therefore run through wavelengths rather than positions on the sky. Reading it as a landscape photograph would confuse the kind of evidence the instrument has preserved.
Atoms and molecules interact with particular energies. Under suitable conditions, emitting gas creates bright ; gas along the path to a brighter background can leave absorption features. Matching a pattern of features to laboratory measurements helps identify the material. The pattern depends on the species and its physical state, while feature strengths also depend on conditions. One dark mark alone is rarely a secure inventory of every element present.
Motion shifts a familiar pattern
For a nearby source whose motion is much slower than light, motion away along the line of sight shifts its spectral features toward longer wavelengths: a . Motion toward the observer shifts them toward shorter wavelengths: a . These names describe the direction of a wavelength change even outside visible light. They do not mean every shifted object must look red or blue to human eyes.
The measured shift concerns motion relative to the observer, so accurate work accounts for the observer’s own motion and the instrument’s wavelength calibration. A radial measurement alone does not provide the sideways component of velocity. Gaia combined spectroscopic information with changes in stellar positions to investigate motions more fully. Distinguishing the separate measurements prevents one powerful method from being credited with information it did not actually supply.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Work a deliberately local example
A hypothetical line has a laboratory wavelength of 500.0 nanometers and is measured at 500.1 nanometers after observer-motion and calibration corrections. Assume the shift is entirely due to slow radial motion. The fractional change is 0.1 divided by 500.0, or 0.0002. For this low-speed case, is approximately that fraction times c. With c rounded to 300,000 kilometers per second, the result is 60 kilometers per second away.
Test the interpretation with other identified lines: the same simple Doppler model predicts the same fractional shift, not an identical number of nanometers for every wavelength. Check measurement uncertainty before reporting the result. A wavelength error comparable to 0.1 nanometers would seriously weaken this example’s conclusion. The arithmetic is useful because its assumptions are explicit, not because every redshift can safely be converted using the same shortcut.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Keep the cause and the detector distinct
Cosmic expansion and gravitational effects can also shift light. Distant-galaxy redshifts therefore require an appropriate cosmological interpretation, and high-speed motions require relativistic treatment. Even without those complications, a star’s broad color can change with temperature or foreground dust. A red-looking image is not a Doppler measurement; the stronger evidence is a calibrated shift of an identified spectral pattern relative to its reference wavelengths.
A spectrometer need not spread visible light into a rainbow on a screen. Hitomi’s Soft X-ray Spectrometer used tiny temperature rises when individual X-ray photons were absorbed to measure their energies. Its hardware photograph shows a detector, not a stellar spectrum or temperature map. Whatever the instrument, ask how it converts incoming radiation into numbers, how those numbers were calibrated, and which physical explanation the measured pattern can test.

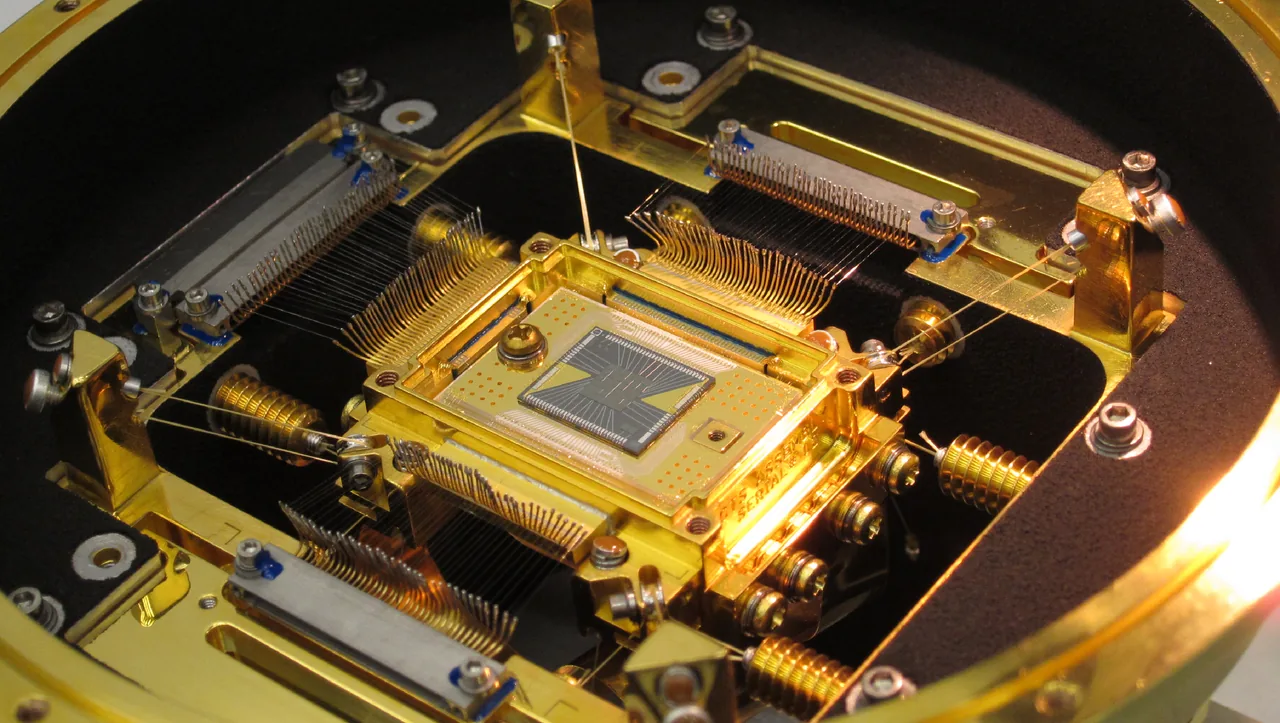

The detector at the heart of Hitomi’s Soft X-ray Spectrometer, in a NASA laboratory photograph. The microcalorimeter measured photon energies through tiny temperature changes when X-rays were absorbed. The photograph shows the physical detector and wiring, not an X-ray spectrum, a heat map, or a celestial object.
Look closely
Find the small central detector. Does the gold color in this hardware photograph tell you the energy or Doppler shift of the X-rays it measured?
See what to notice
No. Visible reflected light makes the hardware photograph. Science measurements came from calibrated detector responses to absorbed photons. A spectrum requires those measurements across energy or wavelength, and a Doppler inference additionally requires identified reference features and a justified model.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
