Lesson 5 of 6 · Water evidence is not a reserve estimate
Water evidence is not a reserve estimate
10 minute lesson · 3 checks along the way
Your goal for this lessonDistinguish cold traps, water forms, instrument observables, and recoverable amounts.
Follow a linked name to explore its archive card. “Back to your lesson” brings you to the same part of the reading.
Words with a dotted underline open a short definition right here in the lesson.
Shadow depends on topography and latitude
The Moon’s spin axis is tilted about 1.5 degrees from the perpendicular to the plane of Earth’s orbit around the Sun. Near the poles, low-angle sunlight can leave the interiors of some craters in permanent shadow. Some of these environments are cold enough to retain water ice for long periods. A is a geometric description; a additionally depends on temperatures suitable for retaining a particular volatile.
Neither phrase applies to every place near a pole. Nearby ridges can receive sunlight while depressions remain dark, and different volatile substances have different stability conditions. Permanent shadow is also unrelated to the ordinary lunar far side, which experiences day and night. A dark patch in one photograph could simply be a temporary shadow. Establishing persistent conditions requires topographic, illumination, and thermal information over the relevant cycle.
Different measurements answer different questions
A hydrogen enhancement inferred from neutron measurements is a useful clue, but hydrogen can occur in more than one chemical form. Infrared spectra provide other constraints. , written OH, and water molecules, written H2O, are related but different; identifying either is not automatically evidence for exposed solid ice. Instrument wavelength coverage, sensitivity, and the surface conditions determine which interpretation can be supported.
Analysis published in 2018 used the Moon Mineralogy Mapper aboard Chandrayaan-1 to identify surface ice at multiple polar locations. LCROSS observations of excavated material from Cabeus crater supplied another kind of water evidence in 2009. SOFIA later detected molecular water in sunlit terrain. These findings sample different environments and observables. They do not describe a single continuous underground lake or establish that every shadowed crater contains equally accessible ice.
Check 1 of 3
10 pointsUse the reading above. You can try again without losing points.
Hardware design is not a completed measurement
An records how detected light varies with wavelength across a scene. Lunar Trailblazer’s HVM3 instrument was designed to distinguish water-related signatures and map minerals. The saved photograph shows this hardware during ground development. It explains the kind of instrument needed for the question, but the photograph itself contains no measurement of the Moon’s water concentration or its distribution with depth.
Mission outcome matters when evaluating evidence. NASA ended Lunar Trailblazer in July 2025 after losing contact shortly after its February launch; it did not deliver the intended lunar survey. A proposed capability, a tested instrument, and a successful science observation are different stages. Use actual observations from successful investigations to support detection claims, and use the hardware example to understand the measurement strategy and its limits.

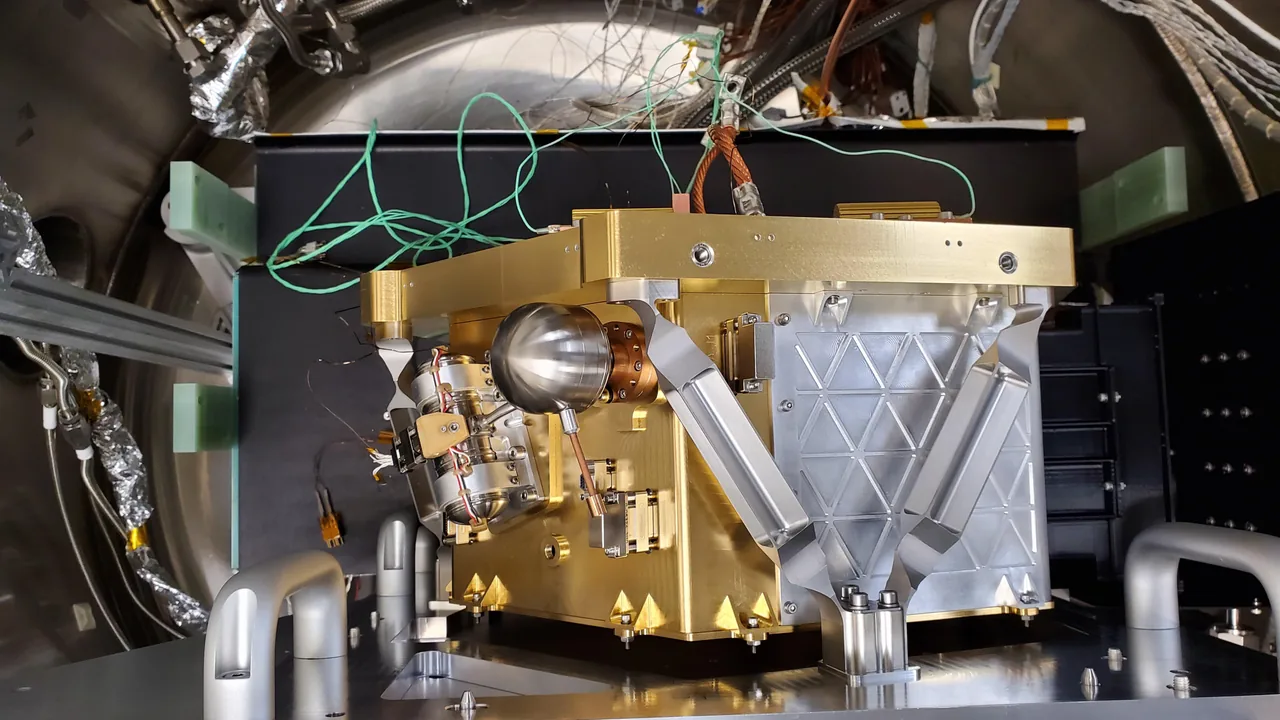

Lunar Trailblazer’s HVM3 instrument during ground development in 2022. Spectral observations were intended to distinguish water-related signatures, but the mission ended in July 2025 without completing its lunar survey. Hardware development is different evidence from a completed water detection.
Look closely
Does an instrument designed to identify ice establish that a particular crater contains recoverable ice?
See what to notice
No. That claim needs an actual observation, a defensible interpretation, and information about distribution and access. This ground photograph documents the instrument, not a lunar-water measurement.
Check 2 of 3
10 pointsUse the reading above. You can try again without losing points.
Work through a decision
Work the evidence: contained versus recovered
Suppose a fictional test processes 1,000 kilograms of containing 2 percent water by mass. The contained amount is 1,000 × 0.02 = 20 kilograms. If the process recovers 40 percent of that water, the recovered amount is 20 × 0.40 = 8 kilograms. The remaining water is not made available merely because it was included in the initial concentration estimate.
This calculation is a practice budget, not an estimate of a real lunar deposit. Planning would also require its thickness, extent, variability, physical form, accessibility, and the energy needed to excavate and process it. Scientific studies may seek the history recorded by the ice rather than extraction. In either case, report what was measured, the sampled volume, and the assumptions connecting local evidence to the wider target.
Check 3 of 3
10 pointsUse the reading above. You can try again without losing points.
Put it together
Your lesson progress
Each check connects to a part of the story. Complete all 3 to earn your 25-point lesson bonus.
